Specifications
QT12-15 Automatic block making machine1.hydraulic automatic block machine
2.ISO9001/CE/SGS
duce solid/hollow block,pa
QT12-15 automatic block machine
1. QT12-15 automatic block machine technical parameter
Dimension of host machine | 5360x2210x2920mm |
Host machine power | 51KW |
Weight of the host machine | 16T |
Pallets size | 1400x860x30mm |
Shaping period | 15-20s |
Vibration force | 100KN |
Vibration Frequency | 2850/min |
Mixer | JS1000 |
Voltage | 380V |
Raw Materials | crushed stone, sand,cement, dust and coal fly ash,cinder, slag, gangue,gravel,and other industrial wastes |

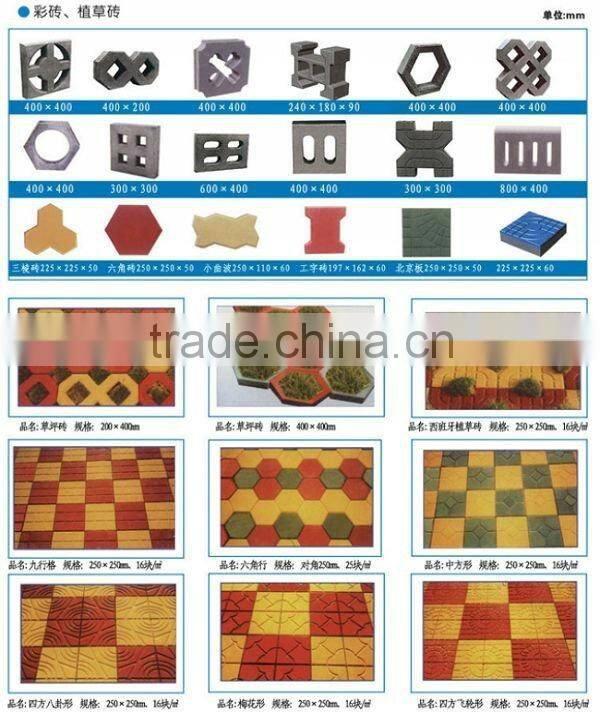

Applied Products | concrete blocks,solid/hollow/cellular masonry products, paving stones with or without face mix,garden and and scaping products,slabs,curbstones, grass blocks, slope blocks, interlocking blocks,etc. |
Applied Fields | widely used in buildings,road paving, squares, gardens, landscaping,city constructions, etc |
Noted:Theoretical workshop area:200m2,need about 5/6 workers.the office,curing area
and stacking area to arrange according to your state.
2. QT12-15 automatic block machine capacity
Item | Specification | Picture | Psc/mould | pcs/h |
|
Concrete brick | 390*190*190mm |
| 12 | 2160-2880 | |
Solid brick | 240*115*53mm |
| 60 | 10800-14400 | |
Porous brick | 240*115*90mm |
| 30 | 5400-7200 |
3. QT12-15 automatic block machine advantages
Advantage 1 | Hydraulic control system:Imported electric hydraulic control valves. |
|
Advantage 2 | PLC control cabinet,workers only need simple training before work.the machine with the Function of fault warning, prompt users maintaining on time. |
|
Advantage 5 | Vibrating section:Single motor ,Shaft transmission instead of belt conveyor. |
|

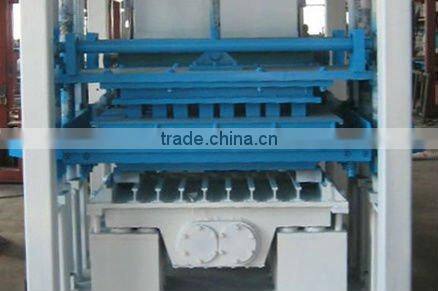

Advantage 6 | Mold Area:It's designed easy to.change molds. |
|

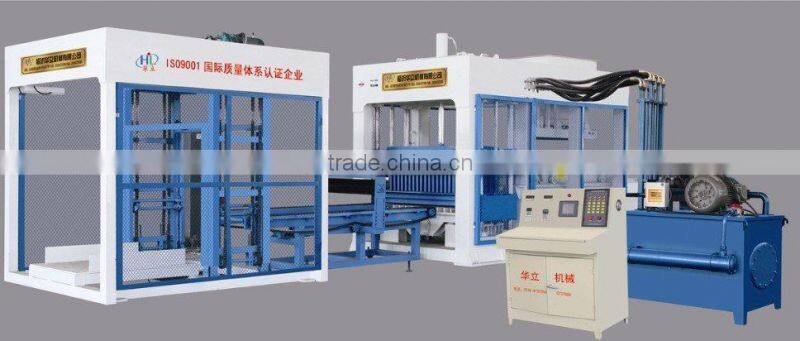

5. Paver making machine production Line
6.Our Factory

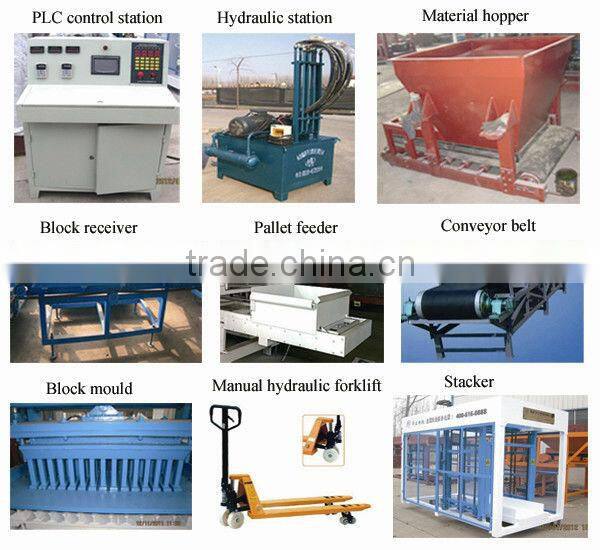

Detail parts of machine
