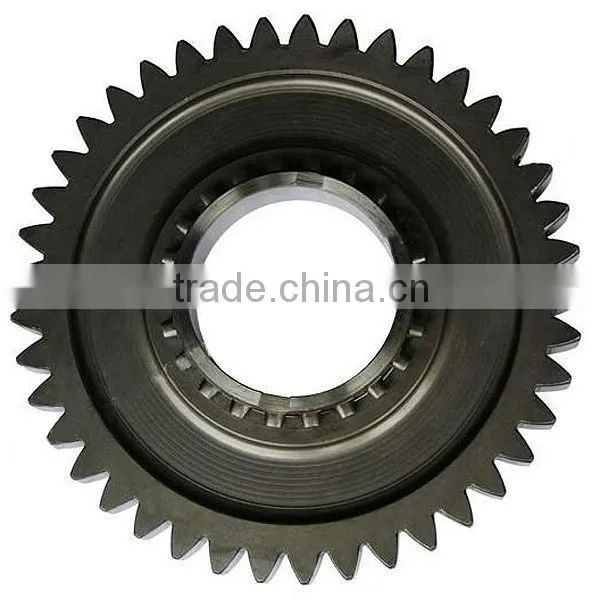

Help CenterGearbox QJ805 Spur Gears 1280304017
Related Products
-
Howo Transmission/ Volvo Transmission/Yutong Bus Manual Transmission Gearbox S580US$ 1,487.6 - 1,983.47MOQ: 1 Set -
Qijing Transmission Gearbox Dump Truck Bearing 1280304027 for QJ805/5S-80/QJS5-80NegotiableMOQ: 1 Piece
-
S5-80 QJ805 Iron Transmission Covering /covering 108301010NegotiableMOQ: 1 Piece
-
S5-80 QJ805 Transmission Covering 108301010NegotiableMOQ: 1 Piece
-
China Factory QJ805 S5-80 HOWO Truck Spare Parts 1096302076 Release Bearing AssemblyNegotiableMOQ: 1 Piece
Specifications

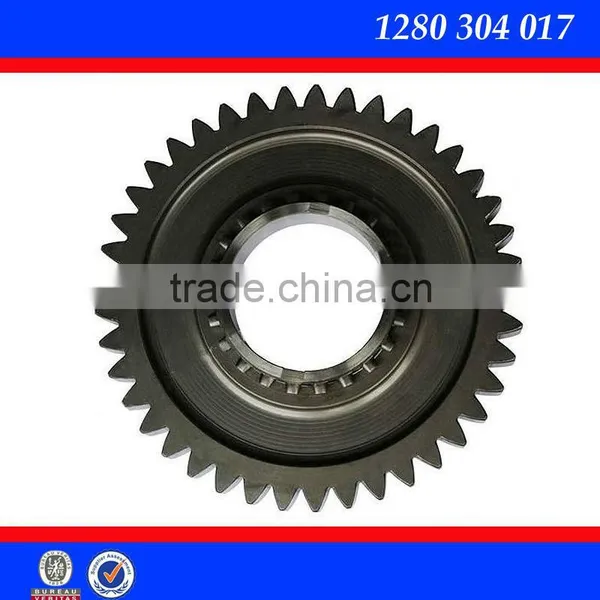

1.Reverse gear 12803040172.Equal to OEM
3.Applicable gearbox: QJ805 (S5-80)
4.Applicable vehicle:Volvo, Yutong, Zhongtong
Specifications:
- Part Name: gearbox gear
- Part No.: 1280304017
- Applicable gearbox: QJ805
- Applicable vehicle: Yutong, King Long,Hengtong,Yaxing, Golden Dragon,Zhongtong, Shentong, Yangman,Dayu,Ankai,Higer, Volvo,Kassbohrer, Foton, Huanghai etc
- Material: 20CrMnTi
Additional content:
20CrMnTi (carburized steel / carburizing steel) | ||||
C, % |
0.17~0.23 |
Tensile strength σb (Mpa) |
≥1080(110) |
|
Si, % |
0.17~0.37 |
Yield strength σs (Mpa) |
≥835(85) |
|
Mn, % |
0.80~1.10 |
Elongation δ5 (%) |
≥10 |
|
Cr, % |
1.00~1.30 |
Reduction of area ψ (%) |
≥45 |
|
S (allowable residue content ), % |
≤0.035 |
Impact toughness αkv (j/cm2) |
≥69(7) |
|
P (allowable residue content ), % |
≤0.035 |
Hardness HB
|
≤217 |
|
Cu (allowable residue content ), % |
≤0.030 |
Density kg/m3
|
7.8×103 |
|
This is good performance carburized steel, high harden-ability, After carburizing with a hard, wear resistant surface and a tough core part. Has a high low temperature impact toughness.
Products Show:
Packing details:
1. Anti-rust paper, box, carton, wooden case
2. Anti-rust paper, carton, wooden case
3. Packing according to your request.
Our field:
1. 5 speed gearbox assembly & spare parts: S5-50, S5-60, S5-70, S5-80, S5-120
2. 6 speed gearbox assembly & spare parts: S6-80, S6-90, AK6-90, S6-100, S6-120, S6-150, S6-160
3. 9 speed gearbox assembly & spare parts: 5S-150GP, 5S-111GP
4. 16 speed gearbox auto parts: 16S109, 16S150, 16S151, 16S181, 16S220, 16S221, 16S251, 16K160
5. Mercedes-Benz G60, G85 auto parts
You may not see the parts inside the transmission, but we hold the speed.
View of our office
Factory Equipment:
Clients:
Certificates:
Questions&Reply:
1. Do you have a need for products other than ZF?
If yes, we have parts for Mercedes, Eaton Fuller, MAN, DAF, etc.
2. Are your products used worldwide?
Yes, we supply US, South America, Asia, Middle East, Southeast Asia. Most ZF parts are universal in application.
3. Can you apply my logo or part number on the parts?
Yes, we can. Please provide sample or drawing.
4. Are you able to produce parts according to my sample or drawing?
Yes, we have engineers and technicians to make samples.
5. What type of packaging do you provide?
Standard packaging is plain, cardboard box and anti-rust wrapping. We can provide special packaging and logos per your specifications.
6. Who are we?
We are Chongqing Shield Gear & Transmission Co., Ltd., a worldwide distributor and manufacturer since 2005.
7. We can ship parts from any port in China.
