Eoc Master
Description
PTC2000-N4722 series are EOC (ethernet over cable) master, which configure one EOC module in one house. It provides high speed internet access and interactive TV on one cable for user on coaxial cable.

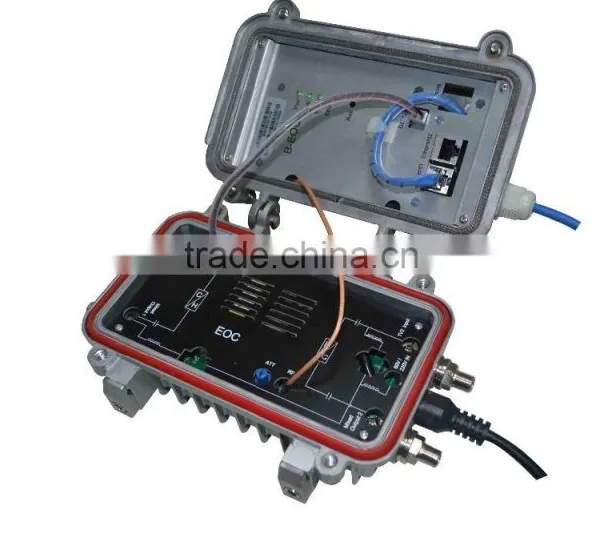

PTC2000-N4722 EOC master has strong waterproof Aluminum alloy house, which can work in severe environment. Strength of antiinterference with OFDM modulation technology can efficiently extend ethernet Data transmission distance over 800 meters coaxial cable.
Features
♦ Compliant with HomePlug AV, IEEE 802.1q , IEEE 802.3, IEEE 802.3x/u
♦ Support concentrated network platform of SNMP, remote management support
♦ Port rate and MAC Address number limitation
♦ TV Band 87MHz-860MHz, Date Band 7.5MHz-65MHz
♦ Strengthened anti-jamming capability with OFDM (Orthogonal Frequency Division Multiplexing) and FEC (Forward Error Correction) technology
♦ Supporting auto-configuration and manual configuration
♦ High security and isolated between terminal equipments
♦ doesn't destroy house or office original decoration
♦ Remote Firmware Update of the EoC terminal
♦ Higher sensitivity of RF receiver
♦ LED indicate link working status
♦ Using existing coaxial and
♦ Lower power Consumption
Specifications
Parameter |
Units |
Specifications |
|
|
Interface | ||||
|
|
PTC2000-N4722 |
|
|
standard Ethernet interface |
PCS |
1 |
|
|
RF interface |
PCS |
2 |
|
|
Data RF output |
PCS |
2 |
|
|
power input port |
PCS |
1 |
|
|
Bandwidth | ||||
Physics Bandwidth |
|
500Mbps. |
|
|
MAC Bandwidth |
|
350Mbps |
|
|
Light Indicator | ||||
Light Indicator |
|
Link (Cable port) |
|
|
|
ETH (Ethernet port) |
|
||
|
Power |
|
||
Others | ||||
RF Connector |
|
F-type Female socket, metric |
|
|
RF Output Impedance |
Ω |
75Ω |
|
|
Power |
V |
External power DC12V 500mA |
|
|
Power Consumption |
W |
<8W |
|
|
RF Channel Frequency |
|
7.5 ~65MHz |
|
|
RF Output Power |
dBuv |
≤120dBuV |
|
|
RF Receive Sensitivity |
dBM |
-60dBm |
|
|
Distance |
M |
>700M |
|
|
Modulation Mode |
|
OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK ROB |
|
|
Standard |
|
IEEE802.3,IEEE 802.3u,802.1Q,802.1P ,IGM |
|
|
Modify Reject Protocol |
|
TDMA and CSMA/CAP |
|
|
Encryption |
|
128-bit AES |
|
|
Dimension |
|
282mm(L)x175 mm(W)x120 mm(H) |
|
|
Operating temperature |
°C |
-30 ~60°C |
|
|
Storage temperature |
°C |
-30 ~70°C |
|
|
Operating humidity |
RH% |
20%~ 85% non-condensing |
|
|
Storage humidity |
RH% |
10%~ 95% non-condensing |
|
|
