Cheap Tractor, 12-20hp, Hand Tractor Walking Tractor, Power Tiller

Cheap Tractor, 12-20hp, Hand Tractor Walking Tractor, Power Tiller thumbnail-1
Cheap Tractor, 12-20hp, Hand Tractor Walking Tractor, Power Tiller thumbnail-2
Cheap Tractor, 12-20hp, Hand Tractor Walking Tractor, Power Tiller photo-1

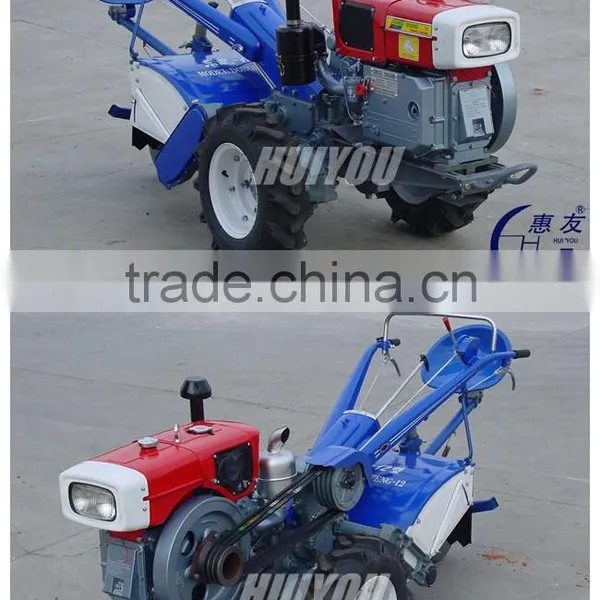

Cheap Tractor, 12-20hp, Hand Tractor Walking Tractor, Power Tiller photo-2
US$ 850 - 950 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Yancheng Dayang Farm Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 13.24kw
Certificate Other
Brand Name Huiyou
Model Number DF-12/12L; DF-15/15L; DF-18/18L; DF-20/20L
Place of Origin Jiangsu, China



Dong Feng  Walking Tractor / Power Tiller

Hand Tractor, Walking tractor, Power Tiller, Two Wheel Tractor

Diesel Engine Power, Evaporative / Radiator Cooling system

12 hp / 15 hp / 18 hp / 20 hp

HUIYOU Brand

Cheap tractor






Product Description

1. Instruction of the walking tractor

The tractor is featured by its simple and compact construction , reliability , long service life ,easy operation , ample output , light weight and high versatility This tractor is very suitable for use in paddy field , small dry field , orchards , vegetable gardens of hilly land with small inclination . It can be used for ploughing , rotary cultivating , harrowing in paddy field , harvesting , transportation ,etc .if suitable implements or accessories are attached . In addition , the tractor can be extensively used as a stationary power station for small scale drainage and irrigation , spraying , grain threshing , cottons ginning , flour milling , fodder cutting , etc.



2. Main specifications

Model:

DF-12

DF-15

DF-18

DF-20

Engine:

Model:

S195

ZS1100

ZS1105

ZH1110

Type:

1 cylinder, Horizontal, 4 cycle

Combustion System:

Swirl

Direct Inject

Bore × Stroke:

95 × 115 mm

100 × 115 mm

105 × 115 mm

110 × 115 mm

Displacement:

0.815 L

0.903 L

0.996 L

1.093 L

Compression Ratio:

22:1

20:1

17:1

17:1

Rated output/speed:

12hp / 2000 rpm

15hp / 2200rpm

18hp / 2200 rpm

20hp / 2200rpm

Max. output/speed:

14hp / 2000rpm

17hp / 2200rpm

20hp / 2200rpm

22hp / 2200rpm

Cooling System:

Evaporative / Radiator(as your requirement)

Lubrication System:

Combined pressure and splash

Starting Mothod:

Hand crank / Electric start (as your requirement)

Overall dimension:

2680 × 960 × 1250 mm

Wheel tread:

800, 740, 640, 580 mm

Tyre:

6.00 - 12

Ground clearance:

182 mm

Clutch type:

Two-disc, constant-contact, friction

Gear/Speed:

6 forward:

1.4 / 2.5 / 4.1 / 5.3 / 9.4 / 15.3 km/h

1.54 / 2.75 / 4.51 / 5.83 / 10.34 / 16.83 km/h

2 reverse:

1.1 / 3.8 km/h

1.2 / 4.18 km/h

Rotary Cultivator:

Model:

1GS9L-60

Tilling width:

600 mm

Blade No.:

18 tilling blades

Net Weight:

500 kg

505 kg

515 kg

525 kg

Packing method:

Wooden case / Veneer case / Steel frame / SKD

Packing Size:

1.16 × 1.1 × 1.1 m

Loading port:

Shanghai Port



Cheap Tractor, 12-20hp, Hand tractor Walking tractor, Power Tiller

Cheap Tractor, 12-20hp, Hand tractor Walking tractor, Power TillerCheap Tractor, 12-20hp, Hand tractor Walking tractor, Power TillerCheap Tractor, 12-20hp, Hand tractor Walking tractor, Power TillerCheap Tractor, 12-20hp, Hand tractor Walking tractor, Power TillerCheap Tractor, 12-20hp, Hand tractor Walking tractor, Power TillerCheap Tractor, 12-20hp, Hand tractor Walking tractor, Power Tiller

Standard configuration (packing list):



1. 12-20 hp diesel engine

2. Dong Feng type chassis and operation platform

3. 2 pcs, 6.00-12 type rubber driving wheel

4. 1GS9L-60 Rotary Cultivator with seat assembly



(optional implements: radiator cooling; motor start; different accessories)

Optional Accessories of Tractor

Cheap Tractor, 12-20hp, Hand tractor Walking tractor, Power Tiller

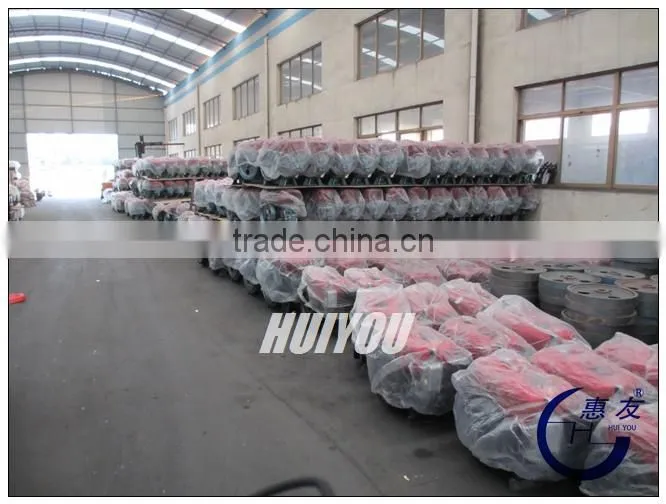

Packaging & Shipping



Cheap Tractor, 12-20hp, Hand tractor Walking tractor, Power TillerCheap Tractor, 12-20hp, Hand tractor Walking tractor, Power Tiller

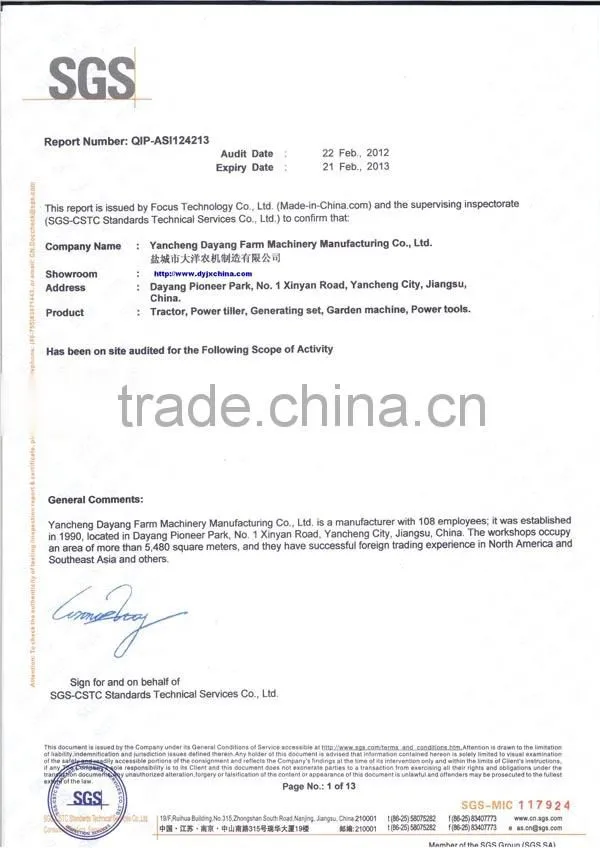

Certification:

Cheap Tractor, 12-20hp, Hand tractor Walking tractor, Power Tiller









Our Services





Please feel free to send inquiry to me, I will reply you at first time.



Also please indicate:



1.Output (how many HP)

2.Cooling system (evapoative / radiator)

3.Starting method (hand crank / motor start)



Which you prefer? it will help me to supply you an exact and competitve quotation.



Thank you!



Best wishes.
