Wholesale Tractor, Cheap Tractor, OEM Walking Tractor, Power Tiller
- 50 Set / Sets per Month
- Shanghai Port
- T/T
Product Details
Condition: | New | Type: | Walking Tractor | By wheel: | 2WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 13.24kw |
Certificate: | Other | Brand Name: | Huiyou | Model Number: | DF-12/12L; DF-15/15L; DF-18/18L; DF-20/20L |
Place of Origin: | Jiangsu, China |
Product Description
Dong Feng Walking Tractor / Power Tiller
Hand Tractor, Walking tractor, Power Tiller, Two Wheel Tractor
Diesel Engine Power, Evaporative / Radiator Cooling system
12 hp / 15 hp / 18 hp / 20 hp
HUIYOU Brand
Wholesale Tractors
1. Instruction of the walking tractor

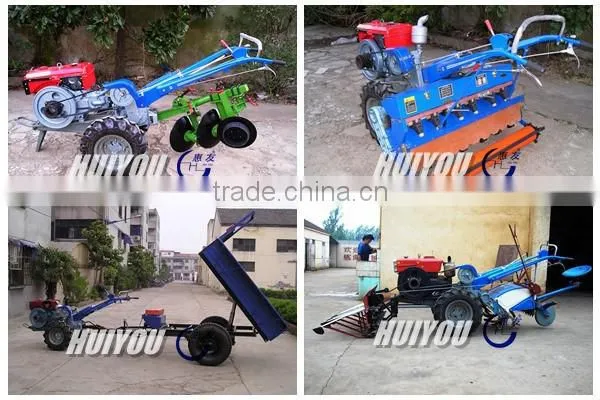

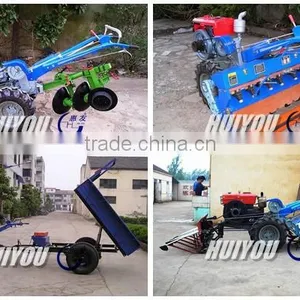

The tractor is featured by its simple and compact construction , reliability , long service life ,easy operation , ample output , light weight and high versatility This tractor is very suitable for use in paddy field , small dry field , orchards , vegetable gardens of hilly land with small inclination . It can be used for ploughing , rotary cultivating , harrowing in paddy field , harvesting , transportation ,etc .if suitable implements or accessories are attached . In addition , the tractor can be extensively used as a stationary power station for small scale drainage and irrigation , spraying , grain threshing , cottons ginning , flour milling , fodder cutting , etc.
2. Main specifications
Model: | DF-12 | DF-15 | DF-18 | DF-20 | |
Engine: | Model: | S195 | ZS1100 | ZS1105 | ZH1110 |
Type: | 1 cylinder, Horizontal, 4 cycle | ||||
Combustion System: | Swirl | Direct Inject | |||
Bore × Stroke: | 95 × 115 mm | 100 × 115 mm | 105 × 115 mm | 110 × 115 mm | |
Displacement: | 0.815 L | 0.903 L | 0.996 L | 1.093 L | |
Compression Ratio: | 22:1 | 20:1 | 17:1 | 17:1 | |
Rated output/speed: | 12hp / 2000 rpm | 15hp / 2200rpm | 18hp / 2200 rpm | 20hp / 2200rpm | |
Max. output/speed: | 14hp / 2000rpm | 17hp / 2200rpm | 20hp / 2200rpm | 22hp / 2200rpm | |
Cooling System: | Evaporative / Radiator(as your requirement) | ||||
Lubrication System: | Combined pressure and splash | ||||
Starting Mothod: | Hand crank / Electric start (as your requirement) | ||||
Overall dimension: | 2680 × 960 × 1250 mm | ||||
Wheel tread: | 800, 740, 640, 580 mm | ||||
Tyre: | 6.00 - 12 | ||||
Ground clearance: | 182 mm | ||||
Clutch type: | Two-disc, constant-contact, friction | ||||
Gear/Speed: | 6 forward: | 1.4 / 2.5 / 4.1 / 5.3 / 9.4 / 15.3 km/h | 1.54 / 2.75 / 4.51 / 5.83 / 10.34 / 16.83 km/h | ||
2 reverse: | 1.1 / 3.8 km/h | 1.2 / 4.18 km/h | |||
Rotary Cultivator: | Model: | 1GS9L-60 | |||
Tilling width: | 600 mm | ||||
Blade No.: | 18 tilling blades | ||||
Net Weight: | 500 kg | 505 kg | 515 kg | 525 kg | |
Packing method: | Wooden case / Veneer case / Steel frame / SKD | ||||
Packing Size: | 1.16 × 1.1 × 1.1 m | ||||
Loading port: | Shanghai Port |
Standard configuration (packing list):
1. 12-20 hp diesel engine
2. Dong Feng type chassis and operation platform
3. 2 pcs, 6.00-12 type rubber driving wheel
4. 1GS9L-60 Rotary Cultivator with seat assembly
(optional implements: radiator cooling; motor start; different accessories)
Optional Accessories of Tractor
Certification:
Please feel free to send inquiry to me, I will reply you at first time.
Also please indicate:
1.Output (how many HP)
2.Cooling system (evapoative / radiator)
3.Starting method (hand crank / motor start)
Which you prefer? it will help me to supply you an exact and competitve quotation.
Thank you!
Best wishes.
