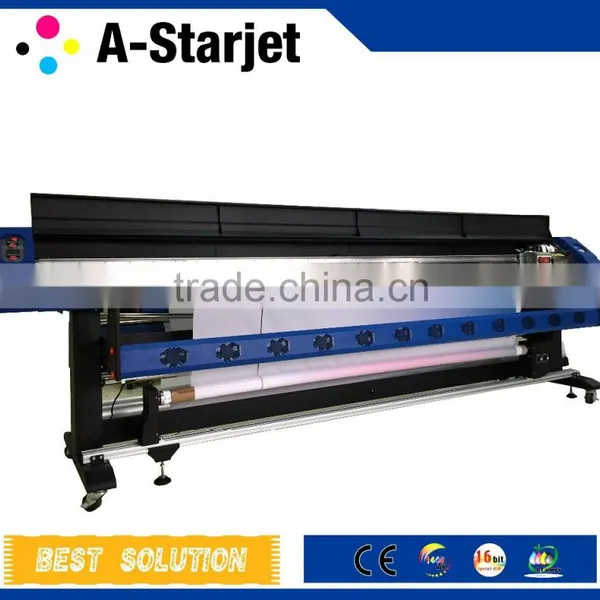

A-Starjet, 3.2m New Automatic Digital LED UV Printer Price

A-Starjet, 3.2m New Automatic Digital LED UV Printer Price thumbnail-1
A-Starjet, 3.2m New Automatic Digital LED UV Printer Price photo-1
US$ 21,000 - 21,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, roll to roll led uv printer
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Terminator Image Tech. (Changzhou) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Ningbo Zhuhai etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, roll to roll led uv printer
Place of Origin Jiangsu, China
Brand Name A-Starjet LED UV Printer
Model Number 7702L LED UV Printer
Usage Card Printer, Label Printer, Paper Printer, Other, Card Printer, Label Printer, Paper Printer, Advertising, Textile, Leather, etc.
Automatic Grade Semi-Automatic
Voltage AC220-240V,50-60Hz or AC110-120V, 50-60Hz
Gross Power 2500W, IR heater 1200W
Dimensions(L*W*H) W x L x H: 4.3 x 0.90 x 1.25(M)
Weight 395kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

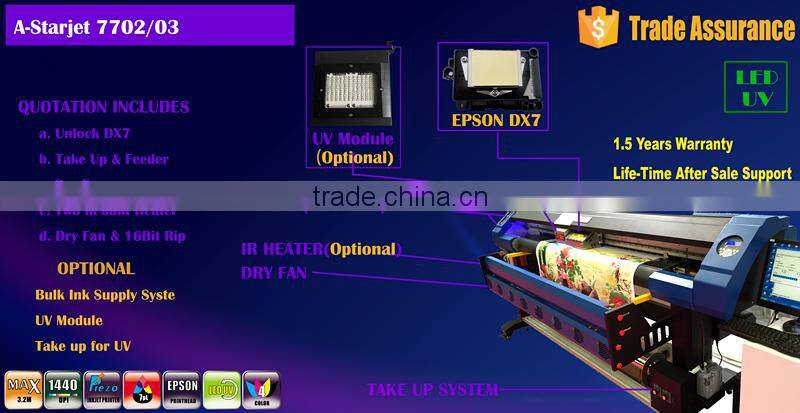

A-Starjet Digital UV LED Printer, Large Format Printer,3.2M/10.5ft/126inch

Our UV printer is Roll to Roll version which is one of our new stable printers since 2012. UV printer is dedicated in upscale market, providing the best performance in advertisement. The distinct characteristic is that UV printer use UV Curing ink which dried on the surface of the materials to instead of eroding into the materials, so it can provide more vivid and colorful pictures. By this distinct feature, UV printer is able to print on any kind of material, especial for leather, PU, curtain Fabric, wall paper, transparent materials and so on.


SPECIFICATIONS FOR A-STARJET UV LED PRINTER
Item
A-starjet 7702LUV
A-starjet 7703LUV
Print Head
Two DX7 print heads
Three DX7 print heads
Number of Nozzles
1440/Head
Color
4 Colors:KCMY/KCMY
Resolution
1440Dpi(Max)
Height of Head
2-5mm
Size of Ink Droplet
1.5-21pl
Printing Width
3000mm
Media Width
3300mm


Speed
3 pass
35.9m2/hour
48m2/hour
4 pass
29m2/hour
38m2/hour
6 pass
17m2/hour
25m2/hour
8 pass
12.5m2/hour
19m2/hour
Feeder/Take up
Yes
Payload
200kgs
Heating System
Print heater and Post heater with PID temperature control
Ink
Environmental protection type LED UV ink
RIP Software
Iprint 3.8.2 Optional(Photoprint)
Control Software
Print console
PC System
Win XP & Win 7
Power Voltage
AC220-24V 50-60Hz or AC110-120V 50-60Hz
Environment
Temperature:20-50℃ ,Humidity:40-60%
Printer Dimension
W4300× D900× H1250(mm)
Packing Dimension
W4500× D980× H700(mm)
Gross Weight
575kgs
Power of IR Heater: 1200W
Notice:A-starjet 7703L series printer all could use Color-White-Color mode for printing

Main Features

1. Basically print on any media,dry instantly

2. LED cold UV resource, environment-friendly

3. Vivid color,3D,long last image

4. Modularity, to upgrade former eco-solvent printer to get dominate

5. UV ink curing on surface instead of absorb by media, provide vividness, sharpness. Suit for most media including leather, fabric, semi-rigid semi- rigid. UP to 1440Dpi provides finest details.

6. When we build A-Starjet UV LED, put the UV LED light at one side with cool fan will be
enough. We build the LED light all by ourselves because we know what we need and how we can control. Even after we made the printer for a few years. There are many copy cats need purchase two LED to put on carriage's both sides. What is the point when one is enough and why we need two of them. UV ink will curve immediately after contact UV light.

Certifications
Detailed Images

Machine Parts

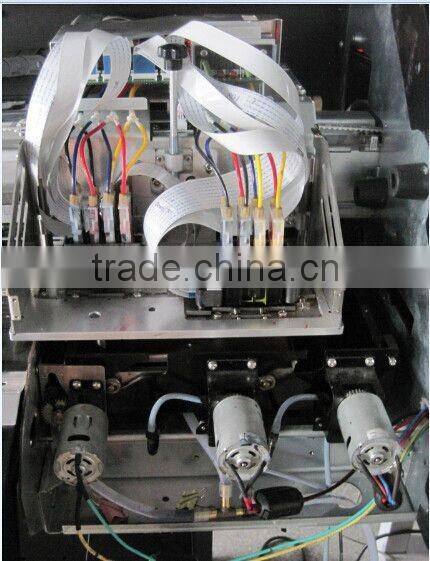

7702LUV service station details.

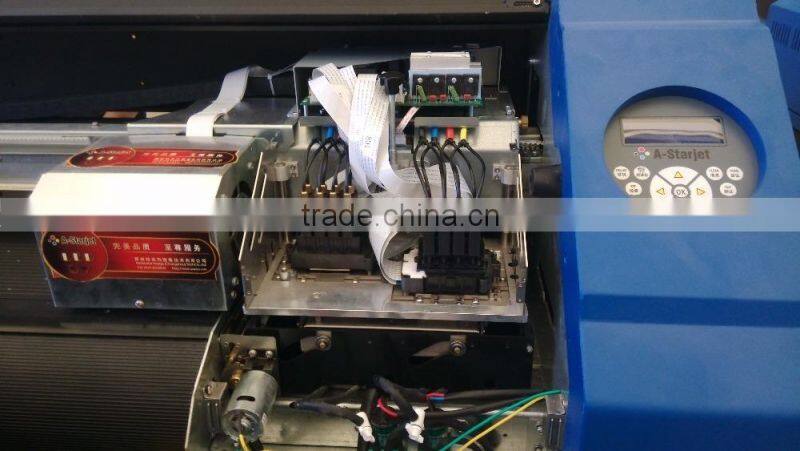

Two DX7 heads.

With ink dampers.

Main Features

UV printer: UV LED lamp

Dry ink and make ink cure

on the surface of material.

Machine Parts

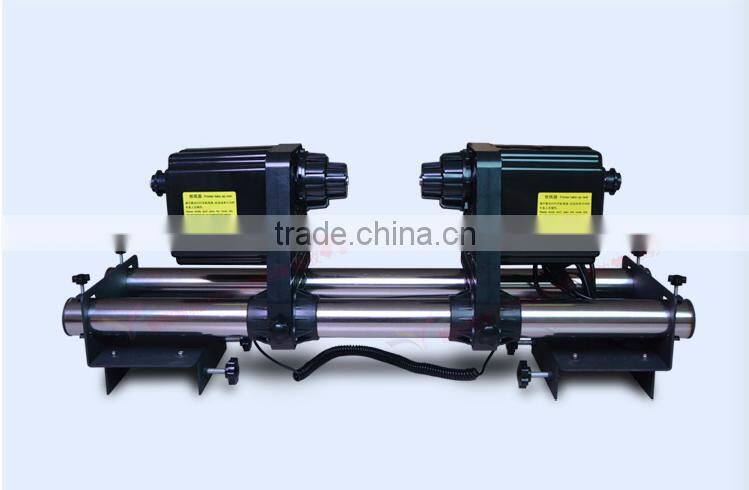

Take up system

Small parts.

Simple electrical parts.

Affordable price.

Main Features

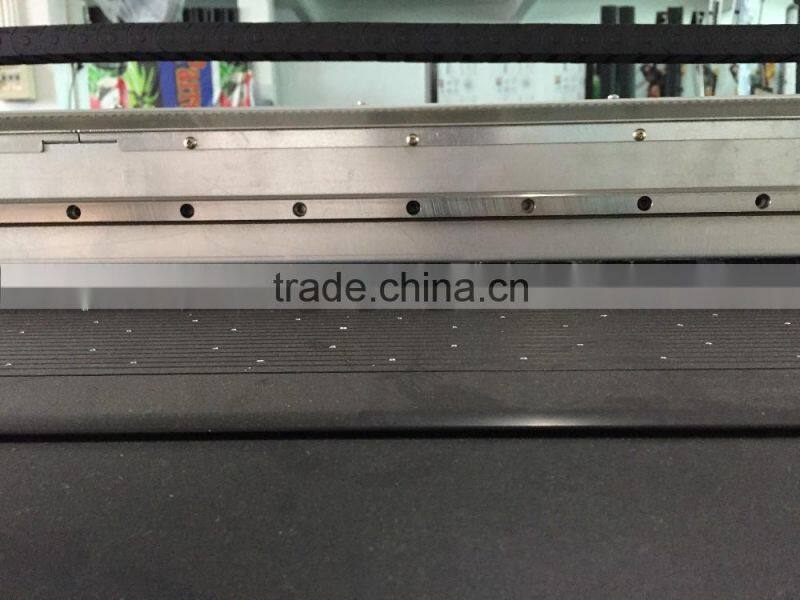

Intensive pinch roller to

make sure the material will not

crumple up.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
4.5(L) * 0.98 (W) * 0.7(D)/M
Weight
575kgs



Packaging Details

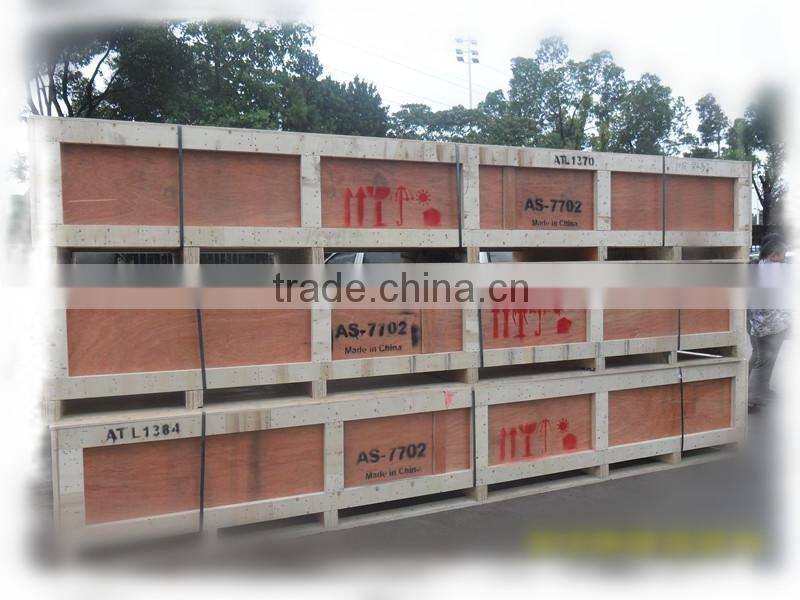

The normal package is wooden box(Size: L*W*H). The wooden box will be fumigated. If container is too tighter,we will use per film for packing or pack it according to customers special request.
Related Products

Eco solvent ink


Take up system

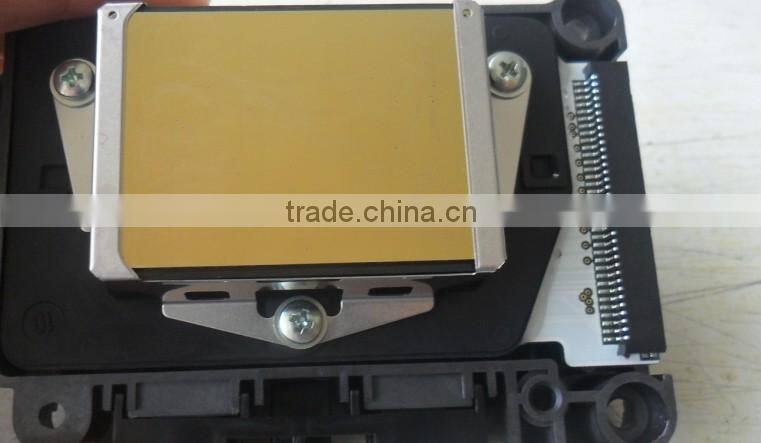

DX7 print head
