3pcs Print Head Eco Solvent Printer AStarjet 7703 1.8M/5.9Feet/7Inch
Specification
| Item | A-Starjet 7703 | ||||
| Print Head | Three DX7 print heads | ||||
| Number of nozzles | 1440/Head | ||||
| Color | 4 Colors:KCMY | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of head | 2-5mm | ||||
| Size of ink droplet | 1.5-21pl | ||||
| Printing width | 1800mm | ||||
| Media width | 1900mm | ||||
| Speed | 3 pass | 50m2/hour | |||
| 4 pass | 38.6m2/hour | ||||
| 6 pass | 28m2/hour | ||||
| 8 pass | 19m2/hour | ||||
| Feeder/Take up | Yes | ||||
| Payload | 70kg | ||||
| Heating system | Print heater and Post heater with PID temperature control | ||||
| Ink | T5.5eco-solvent ink / ST5.5water-base dye ink / T7reactive printing ink | ||||
| Ink cartridge | 8×350mlinkcartridges | ||||
| RIP software | Iprint 3.8.2 Optional(Photoprint&Wastach) | ||||
| Control software | Print console | ||||
| PC system | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W2800× D900× H1250 | ||||
| Packing Dimension | W2900× D980× H700 | ||||
| Gross weight | 300Kg | ||||
| Notice:A-Starjet 7703 series printer all could use Color-White-Color mode for printing | |||||

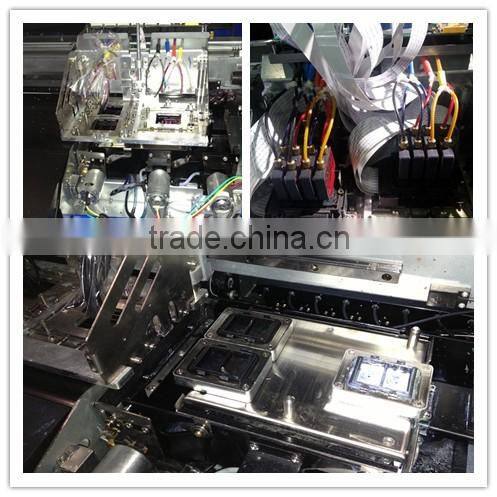

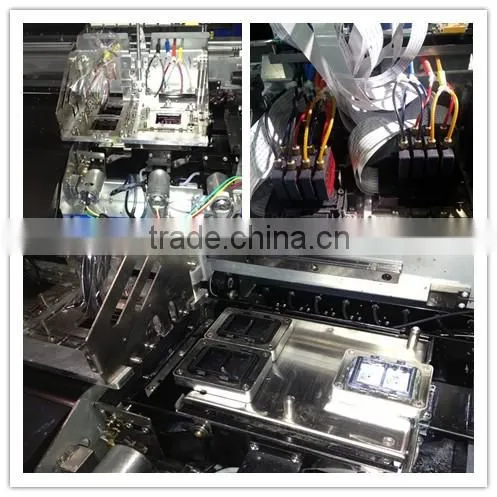

Detailed Parts for our 1.8M 3pcs Epson DX7 Printhead Printer

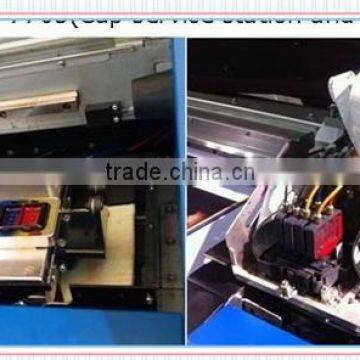

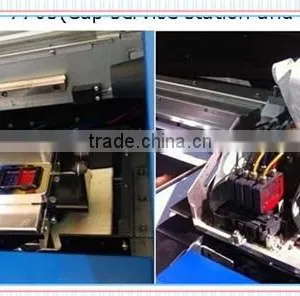

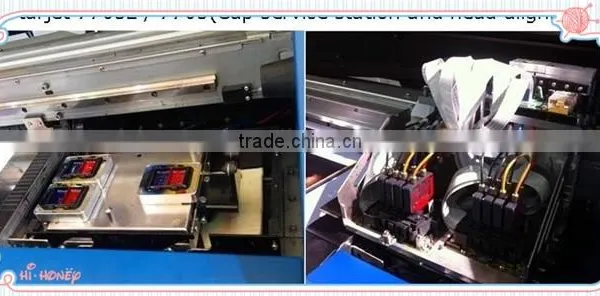

Serve Station Set for 3pcs Heads

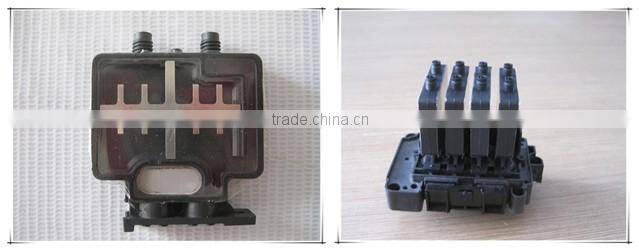

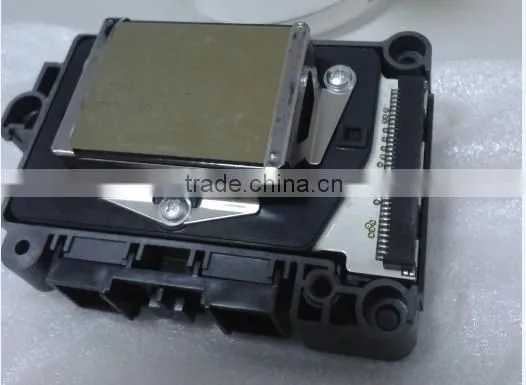

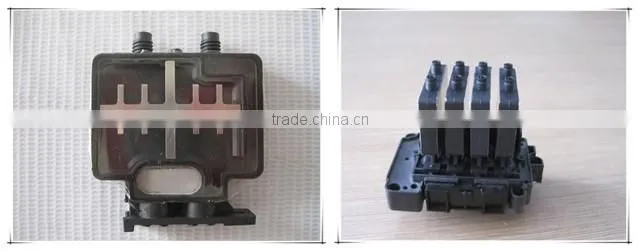

Epson DX7 Printhead DX7 Ink Damper(Black)
Samples Print for Wallpaper

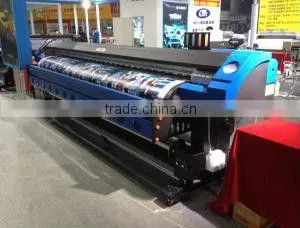

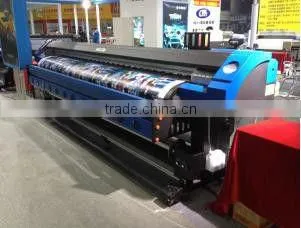

Some Exhibitions for years
about the company:
| Printer Dimension | 2.84×0.90×1.25 (M) |
220Kg |
| Packing Dimension | 2.92×0.98×0.7(M) | 360Kg |
| Packing | Fumigation-free Wooden Pallet | |
Techinical:
New control system makes print heads work separately.Ensure each head works under best condition. The unique pinch roller,media handle system for 1.8M printer make the printer be able to print on soft film and back-lit film.
User Friendly:
Free supplied 16bit I-Print Rip system,easy to use and we keep updating for our clients.The 3rd party ICC can be used,provides best color rendition.
Mechanical Precision:
Inheriting A-starjet's strict qulity control on mechanical precision.The precision-machined service station carriage makes it easy for head cleaning,head preserve,It results the printing will be satable and also prolong heads'lifetime.
Guarantee Term:
All parts directly contact with ink are not guaranteed except use A-Starjet's ink
5 months guaranteed for DC motor
15 months for all Boards
Counting from the day that printer leaves factory
Within Guarantee time, factory covers freight for sending parts
Comfortable After-sale
24hours self-serive,12hours online serive with senior engineers directly from factory, As the frist eco-solvent printer maker in China since 6years ago.We get plenty experience to provide best service for global clients.
