| 1. Backgroud of A-Starjet L Series Wide Format Printer |
Wide format printer market were dominated by Seiko, Konica printhead, especial on 3.2M, 5M width. Micro
print heads were used on desk top printer and even we made the first eco-solvent printer in China, it is only
used on 1.8M printer. It is time to make a breakthough. Our 13 years (1998-2010) R&D ability enables us do
whatever we need. We made the first 3.2M wide format printer on 2010 when nobody else even imaged or
even though it is necessary. The print head was used on A4, A3 only!
And it turns out 3.2M printer is our best seller even now. Innovation is a thing we never stop.
|
| 2. Advantages of DX7 / F189000 Print Head Used on Large Format Printer |
Details

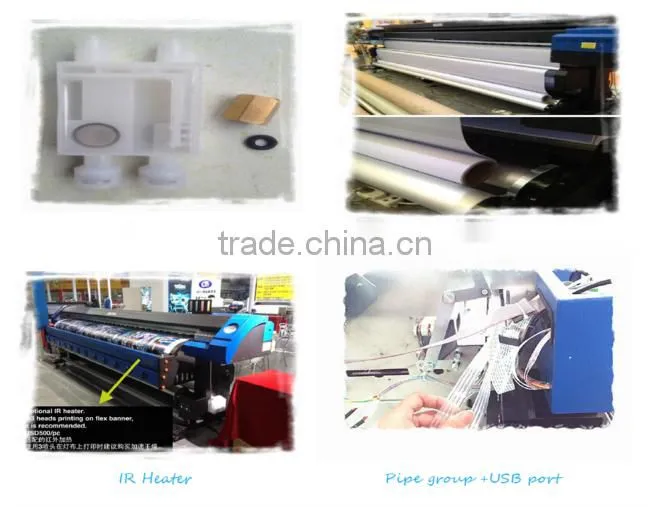

* IR Heater is optional.
| 3. Specification of A-Starjet 7702L, A-Starjet 7703L Large Format Printer |
| Item | A-Starjet 7702L | A-Starjet 7703L | |||
| Print Head | Two DX7 print heads | Three DX7 print heads | |||
| Color | 4 Color: CMYK (8 Color Optional) | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of Head | 2-5mm | ||||
| Size of Ink Droplet | 1.5-21pl | ||||
| Printing Width | 3200mm | 3200mm | |||
| Media Width | 3300mm | 3300mm | |||
| Speed | 3 pass | 40m²/hour | 55.5m²/hour | ||
| 4 pass | 32m²/hour | 43.5m²/hour | |||
| 6 pass | 19m²/hour | 29.3m²/hour | |||
| 8 pass | 13.8m²/hour | 22m²/hour | |||
| Feeder/Take up | Two Version Feeder/Speed and Torque Controllable Take Up | ||||
| Payload | 250kgs | 250kgs | |||
| Heating System | Print heater and Post heater with PID temperature control | ||||
| Ink | Eco Solvent/Water Base | ||||
| Ink Cartridge |
Bulk Ink Supply System (2.5L per Color) |
Bulk Ink Supply System (2.5L per Color) |
|||
| RIP Software | Iprint 3.8.2/Optional Photoprint, Wasatch, Onyx, (SDK Available) | ||||
| PC System | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W4300× D900× H1250 mm | ||||
| Packing Dimension | W4500× D980× H700 mm | ||||
| Net/Gross weight | 360Kgs/575Kgs | ||||

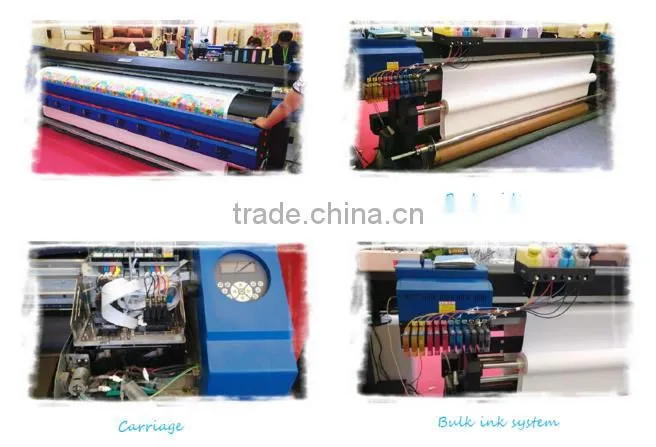

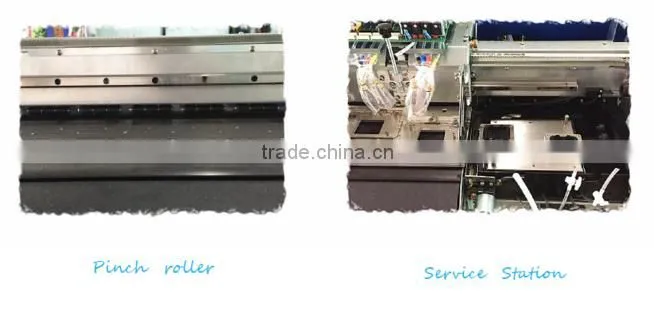

| 4. Advantages of A-Starjet 7702L, A-Starjet 7703L Large Format Printer |
Every details on A-Starjet 7702L, A-Starjet 7703L are considered. From ink filling, media handling,
platform's shape, cooling system.
3.2M print width can be applied such as Seamless Wall Paper or even print several rolls at same time.
| 5. Packing of A-Starjet 7702L, A-Starjet 7703L Large Format Printer |
a. Videos, pictures are provided for examination
b. High quality Fumigation-free wooden pallet can bear 1200kg
c. Load container service are provided
Sequence of ordering
1. Experienced Internation sales in Genex Digital Co., Ltd will assist clients find the large format printer they need.
2. Provide PI including printers, spare parts, inks etc. Collect clients' consignee info, documents needed.
3. Receive deposit, prepare large format printers.
4. Sale and engineer will exam large format printer several times, take pictures, videos for client.
5. Rest payment be made, send large format printer to sea port and send to clients.
6. Before large format printer be recieved, engineers may assist clients to prepare the training.
7. After large format printer received, we are available to assist client as long as we are online. 24 hours Youtube serive is provided.
You have paid for the service. No matter where, when you get the A-Starjet. You are a member of A-Starjet's community. Life-time free service is provided.

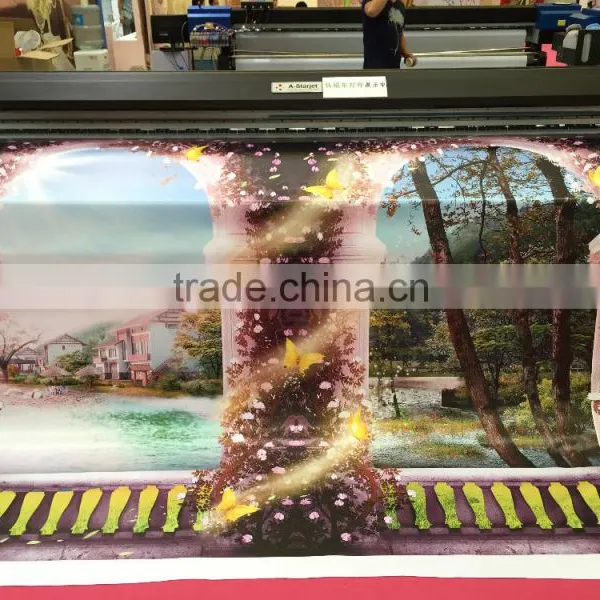

| 6. Samples Print Out By Digital Wall Paper Printer |
Chinese type VS Modern type
Print at 4+4 Pass, picture produced by Iphone 6
| 7. Company Information |
Terminator Image(Changzhou) Tech. Co., Ltd was a software developer founded in 2006. It's major R&D
developers had engaged in cutting, printing industry over 10 years before founding the company. In 2008
we built our own factory and launched the A-Starjet series printers. A legend begins...
OUR ACHIEVEMENT
| ||
|
8.2008 A-Starjet 5.5 The first eco-solvent printer in China. |
2010 A-Starjet 5.5L/5L The first 3.2M eco-solvent printer in the world. |
Early 2011 A-Starjet NEO The most affordable printer uses DX5 head. |
| ||
|
July 2012 A-Starjet 77802/L The first auto calibrate double side printer in the world. |
March 2013 A-StarCut Roll to Roll The first roll to roll label finisher |
March 2014 A-Starcut sheet |
| 8. Why Us |
Reasonable Price
- Directly cooperate with R&D factory.
Comprehensive Guarantee Term
- Print heads are guaranteed when A-Starjet ink being used
- Motors are guaranteed for 6 months
- Printer's boards are guranteed for 15 months
- Counting from the day printer leaves factory
- Within guarantee time, send spare parts in advance and we'll cover all the freight
- After guarantee time, repair fee will be charged
Comfortable After-Sale Service
- Online support such as Skype, Whats app, TeamView, Youtube, etc
- Onsite Service is acceptable
-
Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale - 24 hours self-service available by Arthur's Youtube channel.
- All printer, parts in stock, able to ship out at any time.
- Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for 6-7 years.

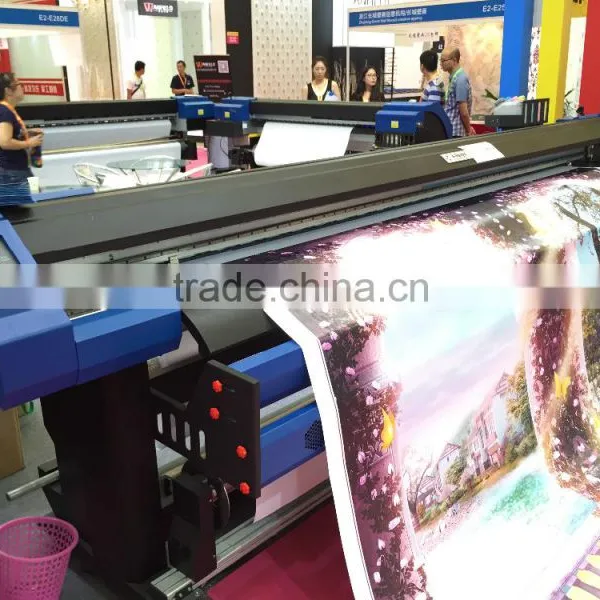

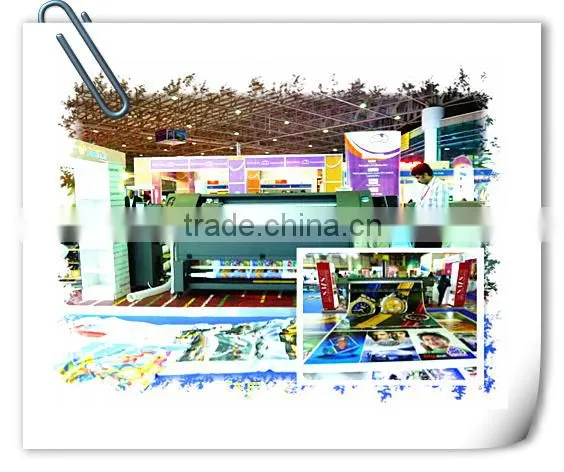

| 9. Expo |
Shanghai
Dubai
Indonesia
