5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing

5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing thumbnail-1
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing thumbnail-2
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing thumbnail-3
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing thumbnail-4
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing thumbnail-5
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing thumbnail-6
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing photo-1
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing photo-2

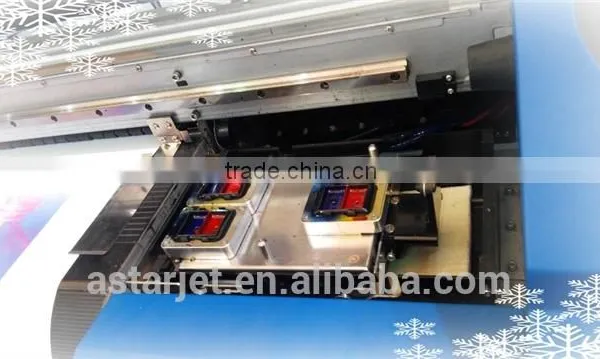

5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing photo-3

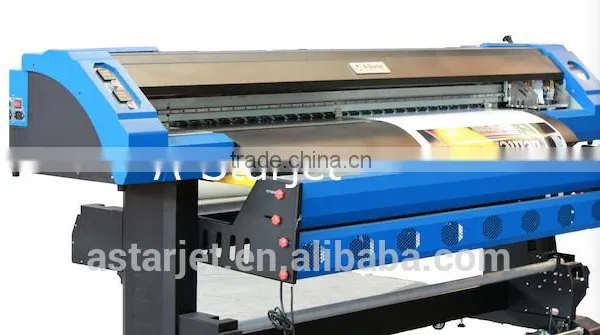

5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing photo-4
5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing photo-5

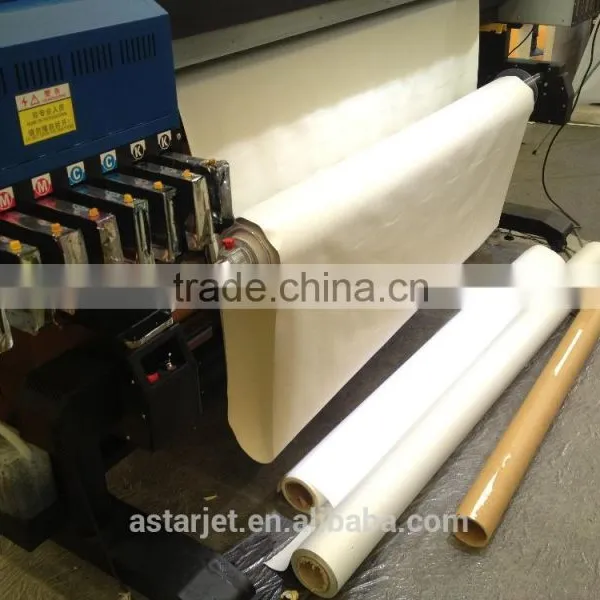

5.9Feet/1.8M/7Inch Large Format Printer With DX7 PrintHead AStarjet Printing photo-6
US$ 8,900 - 8,910 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, roll to roll
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Terminator Image Tech. (Changzhou) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Beijing Shenzhen Xianggang Xiamen Jiangsu Chengdu Zhejiang Fujian Chongqing Shandong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, roll to roll
Place of Origin Jiangsu, China
Brand Name A-Starjet inkjet printer
Model Number 7702/7703 inkjet printer
Usage Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Label Printer, Paper Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Label Printer, Paper Printer, Advertising,flex banner,wallpaper etc.
Automatic Grade Semi-Automatic
Voltage AC220-240V,50-60Hz or AC110-120V, 50-60Hz
Gross Power 1500W
Dimensions(L*W*H) W x L x H: 2.84 x 0.90 x 1.25(M)
Weight 220kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

5.9Feet/1.8M/7Inch Large Format Printer with DX7 PrintHead AStarjet Printing

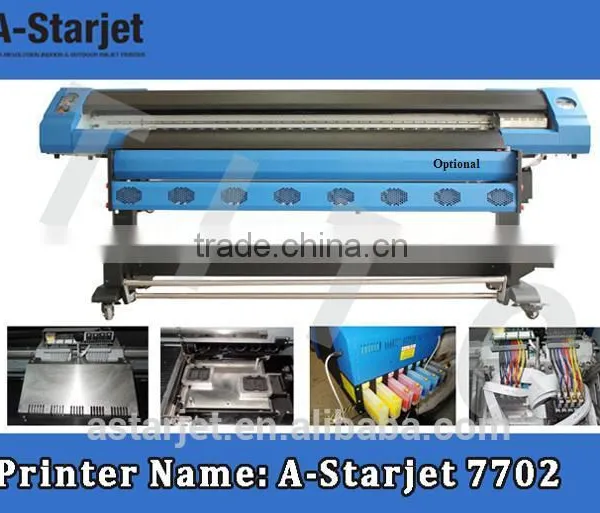

Details of A-Starjet 1.8M Eco solvent Printer

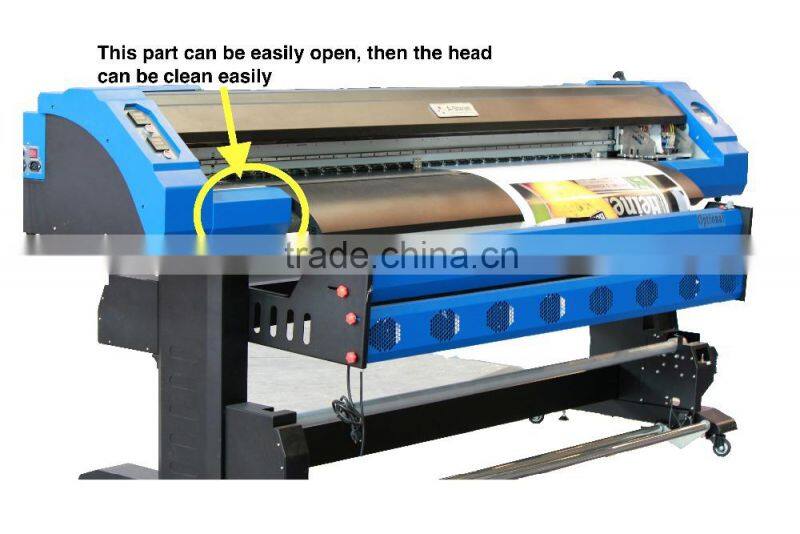

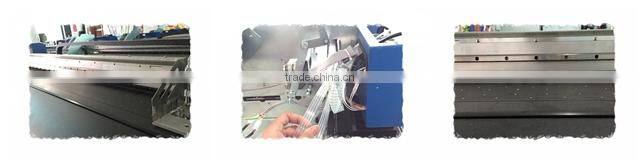

         Front Side                                          Pipe Group                                    Pinch Roller

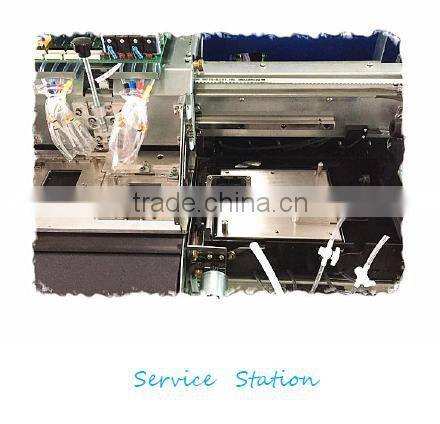

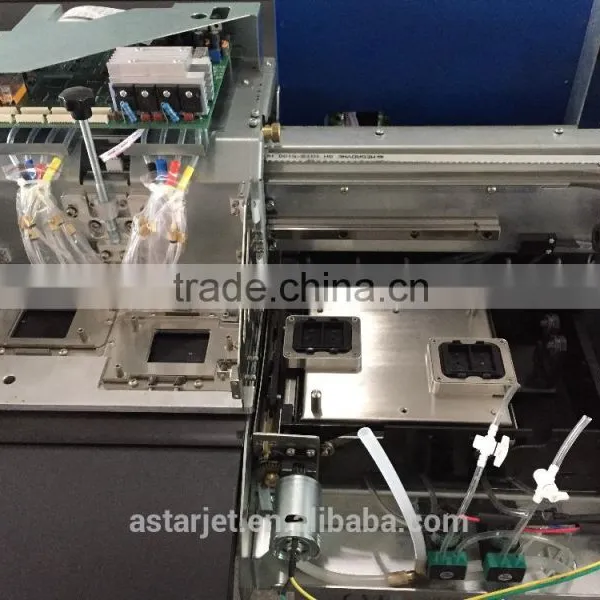

         Serve Station


Specifications

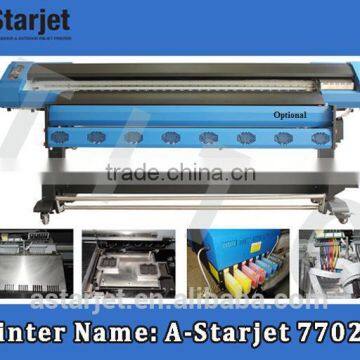

Item A-Starjet 7702 A-Starjet 7703
Print Head Two DX7 print heads Three DX7 print heads
Number of nozzles 1440/Head
Color 4 Colors:KCMY
Resolution 1440Dpi(Max)
Height of head 2-5mm
Size of ink droplet 1.5-21pl
Printing width 1800mm 1800mm
Media width 1900mm 1900mm
Speed 3 pass 34.5m2/hour 50m2/hour
4 pass 26.5m2/hour 38.6m2/hour
6 pass 17m2/hour 28m2/hour
8 pass 13m2/hour 19m2/hour
Feeder/Take up Yes
Payload 70kgs 70kgs
Heating system Print heater and Post heater with PID temperature control
Ink T5.5 eco-solvent ink
ST5.5 water-base dye ink
T7 reactive printing ink
Ink cartridge 8×350ml ink cartridges
RIP software Iprint 3.8.2 Optional(Photoprint&wastach)
Control software Print console
PC system Win XP & Win 7
Power Voltage AC220-24V 50-60Hz or AC110-120V 50-60Hz
Environment Temperature:20-50℃ ,Humidity:40-60%
Printer Dimension W2840× D900× H1250
Packing Dimension W2920× D980× H700
Gross weight 360Kgs



Printing Samples for Wall Paper









Packaging & Shipping















Company Information



Speed, stability, precision, all those factors do matter for highly competitive signage market, we get them and offer you the A-starjet 7703 series. The printer reaches 45sqm per hour at production mode with three DX7. Save cost of adding extra printer.

In May 2009, we successfully launched the A-starjet series printers, the high-precision indoor&outdoor printers, making great influence in the market. The machine is mainly used in the fields of indoor&outdoor advertising, labels and signs, textile printing, decoration, gifts, wedding photos, and so on. Based on customer particular requests, we can provide the overall resolution packages refer to machine/software design, printing technique, ink development etc.

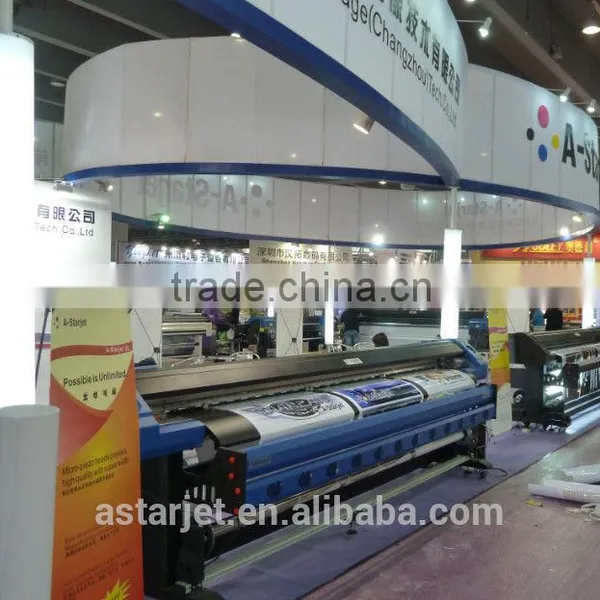

Exhibitions



We have expos in Shanghai, Guangzhou, Dubai, Italy, Indonesia..............We have expos in Shanghai, Guangzhou, Dubai, Italy, Indonesia..............





5.9Feet/1.8M/7Inch Large Format Printer with DX7 PrintHead AStarjet Printing





Our Services



  • All parts directly contact with ink are not guaranteed except use A-Starjet's ink
  • 5 months guaranteed for DC motor
  • 15 months for all Boards
  • Counting from the day that printer leaves factory
  • Within Guarantee time, factory covers freight for sending parts
  • Working time: Monday to Saturday--8:30 a.m. to 11:30a.m. , 12:30 p.m. to 17:30 p.m. Personally, every day's 20:00 p.m. to 22:30 p.m. is also my working time.
