Double Sided Large Post-press Machine

Double Sided Large Post-press Machine thumbnail-1
Double Sided Large Post-press Machine thumbnail-2
Double Sided Large Post-press Machine thumbnail-3
Double Sided Large Post-press Machine photo-1
Double Sided Large Post-press Machine photo-2
Double Sided Large Post-press Machine photo-3
US$ 26,890 - 26,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, roll to roll
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Terminator Image Tech. (Changzhou) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Beijing Shenzhen Xianggang Xiamen Jiangsu Chengdu Zhejiang Fujian Chongqing Shandong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, roll to roll
Place of Origin Jiangsu, China
Brand Name A-starjet Large Format Printer
Model Number Double Sided Large Format Printer
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade Semi-Automatic
Voltage AC220-240V,50-60Hz or AC110-120V, 50-60Hz
Gross Power 4000W
Dimensions(L*W*H) : W x L x H: 4.30 x 0.90 x 1.25(M)
Weight 430kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

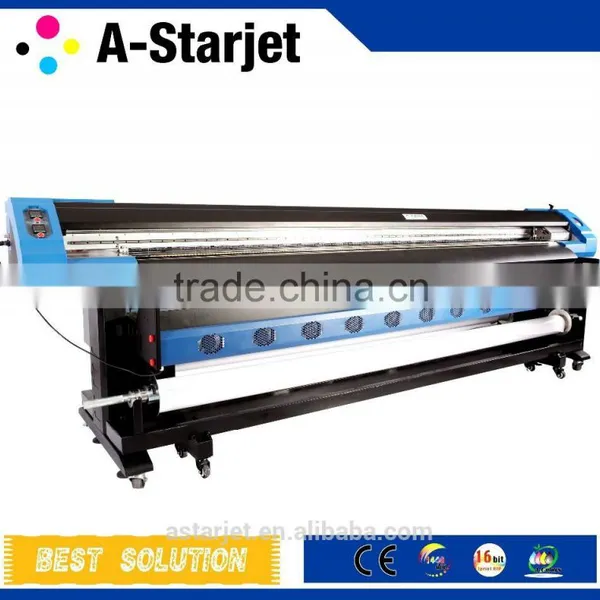

Double Sided Large Post-press Machine

1.8M/3.2M Double sided printer 77802/ 77802L, inkjet printer



 Comparison with single side







Briefing:  3.2m print width with two DX7 print heads.



Working method:
1. Print on front side.

2. Reverse media
a. If several pieces image,Reverse the media by hand after front side print out, print on backside.
b. If whole roll of media,The take up system and feed system can be replaced easily.
1) Print sequence is Last to First
2) File name is print out in front side, when print back side, select the file generated by software will be ok
c. The back side’s image can be printed by lower pass.Saving time while the result is almost same.

Attention:
For 1.8M, the media size we accept is “152cm, 180cm”
For 3.2M, the media size we accept is “152cm, 180cm, 220cm, 320cm”
Let us know if need special width setting.



Link: /watch?v=a9OzSHhZ6cY&list=PL3nfrqB1qbF
         GBeRnZ991n5KrAm7byCDoX



Details:  3.2M rollers

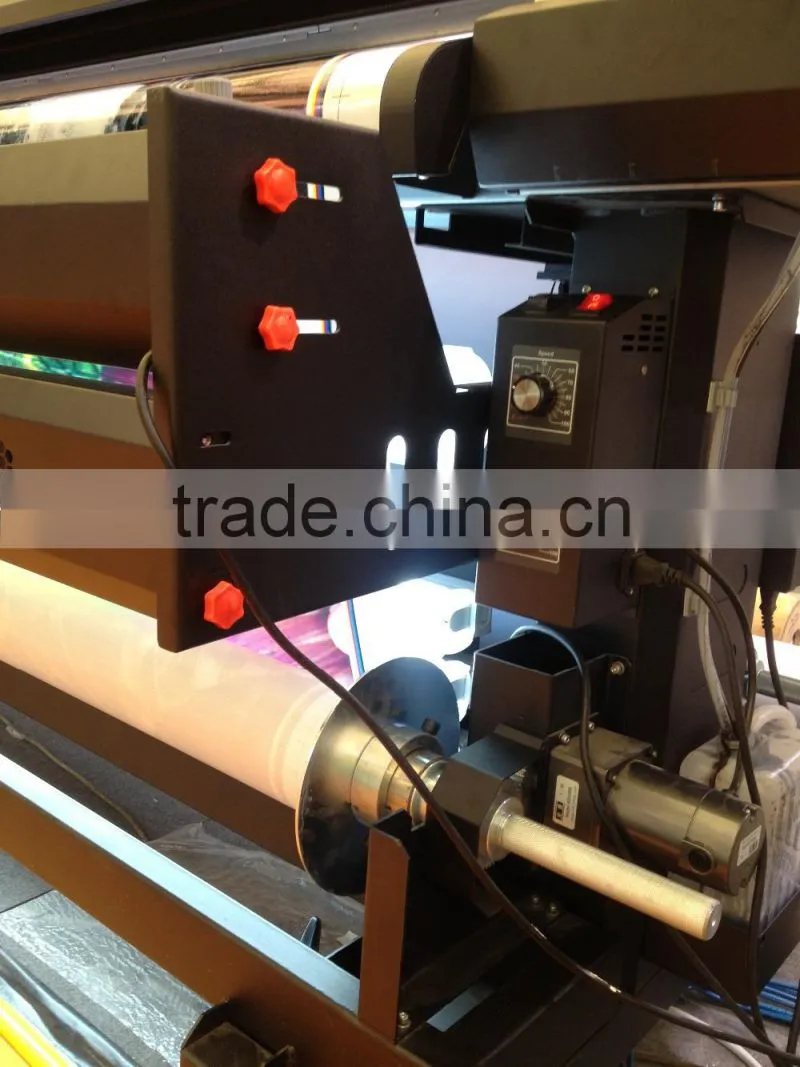

Tension take up system

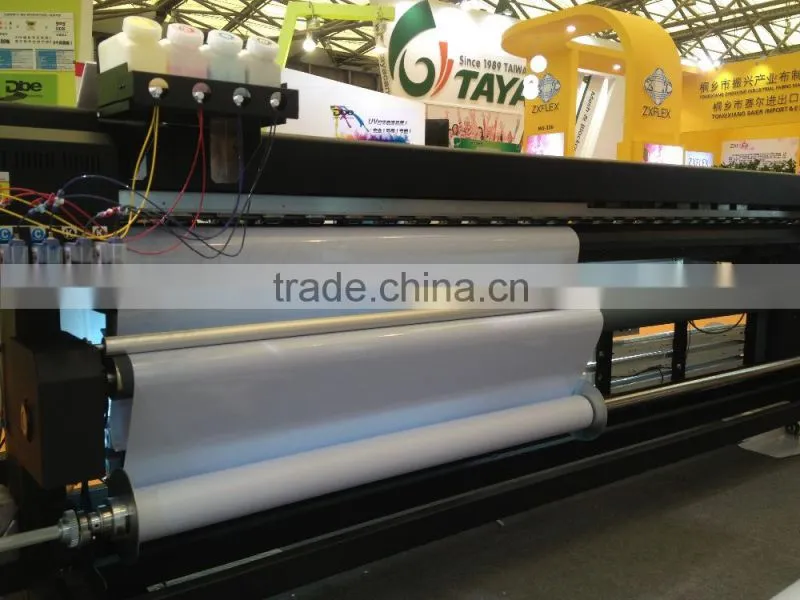

Bulk Ink System





Feed System







Camera







Specifications



Item A-starjet 77802L A-starjet 77802
Print Head Two DX7 Drop-on-demand Micro-Piezo Print Heads
Number of nozzles 2880 nozzels(2 heads)
Color 4 Colors:CMYK
Resolution 1440Dpi(Max)
Height of head 2-5mm
Size of ink droplet 1.5-21pl
Printing width 3200mm 1800mm
Media width 3300mm 1900mm
Real Time Tracking 4 cameras 3 cameras
Print Speed 2 pass:52 sqm/hour/side 2 pass: 49 sqm/hour/side
4 pass: 28 sqm/hour/side 4 pass: 25 sqm/hour/side
Media feeder Detachable Caster Yes
Media Take-up Feeder/Take-up system Yes
Payload 200kgs 70kgs
Heating system 3-section heaters with PID temperature control
Ink T5.5 eco-solvent ink
Ink cartridge 8 cartridges
RIP software Iprint 3.0 (Optional Photoprint, Wasatch)
Control software iPrint console
PC system Win XP & Win 7
Power Voltage AC220-24V 50-60Hz or AC110-120V 50-60Hz
Environment Temperature:20-26℃ ,Humidity:40-60%
Printer Dimension W4300× D900× H1250mm W2840× D900× H1250mm
Packing Dimension W4450× D1450× H1180mm W2920× D930× H730mm
Gross weight  795Kgs   380Kgs



Advantages


 1.Advanced auto calibration system, it makes  1) print entire roll double side image

                                                                        2) different image on both sides( hanging scroll)

                                                                        3) simple and efficient

                                                                        4) low passes can print at back side

 2. Vivid color




 3. The replaceable media handle system makes double sided printing more convenient.



Packaging & Shipping



Our Services



  • All parts directly contact with ink are not guaranteed except use A-Starjet's ink
  • 5 months guaranteed for DC motor
  • Counting from the day that printer leaves factory
  • Within Guarantee time, factory covers freight for sending parts
  • Working time: Monday to Saturday--8:30 a.m. to 11:30a.m. , 12:30 p.m. to 17:30 p.m. Personally, every day's 20:00 p.m. to 22:30 p.m. is also my working time.
