Outdoor&Indoor Printer, A-Starjet Inkjet Printer, Eco-solvent, Water-base, 3.2M, DX7 Print Head, Wall Paper Printer,7702L
US$ 11,300 - 11,400
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, roll to roll
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Ningbo Zhuhai etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flex Banner, Seamless Wall Paper Inkjet Printer, Eco-solvent, 3.2M/10.5ft/125Inch, Epson DX7 Print Head,7703LUS$ 13,960 - 13,970MOQ: 1 Set -
Large Format Printer, A-Starjet Digital Inkjet Printer, Eco-solvent,Water Base, 1.8M, DX7 Print HeadUS$ 8,900 - 8,910MOQ: 1 Set
-
A-Starjet NEO , 1.52M, Eco-solvent, Water-base, DX5 Printhead, Large Format Inkjet PrinterUS$ 4,650 - 4,660MOQ: 1 Set
-
A-starjet NEO Plus , 1.52M, Eco-solvent, Water-base, DX5.5 Printhead, Large Format Inkjet PrinterUS$ 3,140 - 3,150MOQ: 1 Set
-
Large Format Printer, A-Starjet Printer, Stretch/Soft/PVC Ceiling Film Printer, 3.2M, DX7 Print HeadUS$ 14,660 - 14,670MOQ: 1 Set
Condition
New
Plate Type
Other, roll to roll
Place of Origin
Jiangsu, China
Brand Name
A-Starjet Inkjet Printer
Model Number
7702L Inkjet Printer
Usage
Card Printer, Cloths Printer, Label Printer, Paper Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, Advertising,flex banner,wallpaper etc.
Automatic Grade
Semi-Automatic
Voltage
AC220-240V,50-60Hz or AC110-120V, 50-60Hz
Gross Power
1500W
Dimensions(L*W*H)
W x L x H: 4.3 x 0.90 x 1.25(M)
Weight
320kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
A-Starjet 7702L Series Inkjet Printer, Eco-solvent, 3.2M
Details
Specifications
| Item | A-Starjet 7702L | A-Starjet 7703L | |||
| Print Head | Two DX7 print heads | Three DX7 print heads | |||
| Number of Nozzles | 1440/Head | ||||
| Color | 4 Colors:KCMY | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of Head | 2-5mm | ||||
| Size of Ink Droplet | 1.5-21pl | ||||
| Printing Width | 3200mm | 3200mm | |||
| Media Width | 3300mm | 3300mm | |||
| Speed | 3 pass | 40.5m2/hour | 55.5m2/hour | ||
| 4 pass | 32m2/hour | 43.5m2/hour | |||
| 6 pass | 19m2/hour | 29.3m2/hour | |||
| 8 pass | 13.8m2/hour | 22m2/hour | |||
| Feeder/Take up | Yes | ||||
| Payload | 200kgs | 200kgs | |||
| Heating System | Print heater and Post heater with PID temperature control,optional IR heater | ||||
| Ink | T5.5 eco-solvent ink | ||||
| ST5.5 water-base dye ink | |||||
| T7 reactive printing ink | |||||
| Ink Cartridge | Bulk ink supply | ||||
| RIP Software | Iprint 3.8.2 Optional(Photoprint&wastach) | ||||
| Control Software | Print console | ||||
| PC System | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W4300× D900× H1250 | ||||
| Packing Dimension | W4500× D980× H700 | ||||
| Gross Weight | 560Kgs | ||||

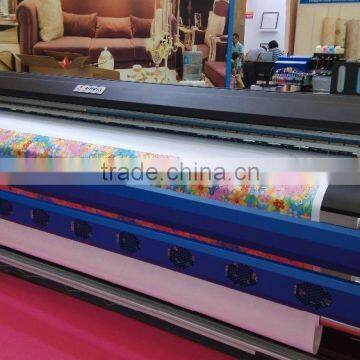

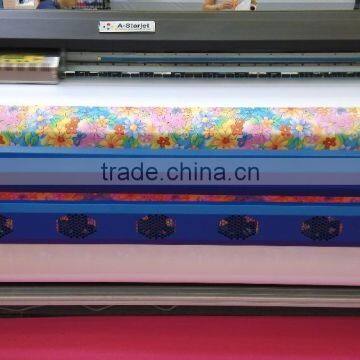

Printing Samples
Advantages
1. Able to use encrypted DX7( first generation) decrease 15% cost per head. Compares to DX5, DX7 decrease 35% cost.
2.Head's voltage adjust separately, to compensate print head's performance.
3.Be professional, specialized platform to suits different material.
4.Practical speed and torque controllable take up system to handle different kinds of media.
5.Two versions feed system plus extra feeding system for lighter media.
Packaging & Shipping
Our Services
- All parts directly contact with ink are not guaranteed except use A-Starjet's ink
- 5 months guaranteed for DC motor
- 15 months for all Boards
- Counting from the day that printer leaves factory
- Within Guarantee time, factory covers freight for sending parts
- Working time: Monday to Saturday--8:30 a.m. to 11:30a.m. , 12:30 p.m. to 17:30 p.m. Personally, every day's 20:00 p.m. to 22:30 p.m. is also my working time.
Company Information
Speed, stability, precision, all those factors do matter for highly competitive signage market, we get them and offer you the A-starjet 7703 series. The printer reaches 45sqm per hour at production mode with three DX7. Save cost of adding extra printer.
In May 2009, we successfully launched the A-starjet series printers, the high-precision indoor&outdoor printers, making great influence in the market. The machine is mainly used in the fields of indoor&outdoor advertising, labels and signs, textile printing, decoration, gifts, wedding photos, and so on. Based on customer particular requests, we can provide the overall resolution packages refer to machine/software design, printing technique, ink development etc.
