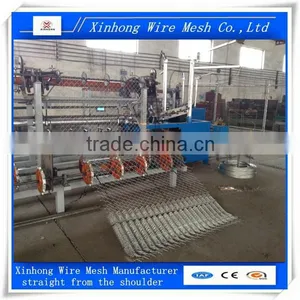

Help CenterFully-automatic Chain Link Fence Machine
Related Products
Specifications
fully-automatic chain link fence machine:1.over 20 years experience at machine
2.low failure rate
3.quality assurance
Technical Description

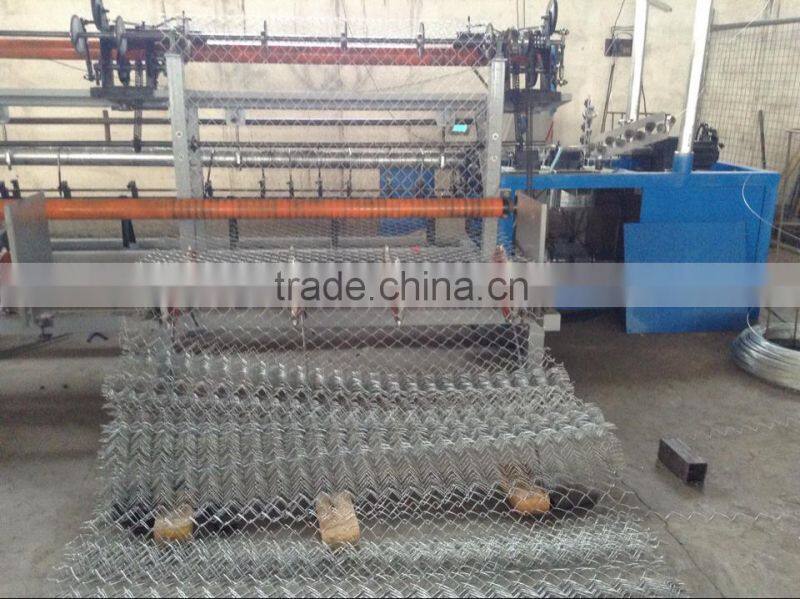

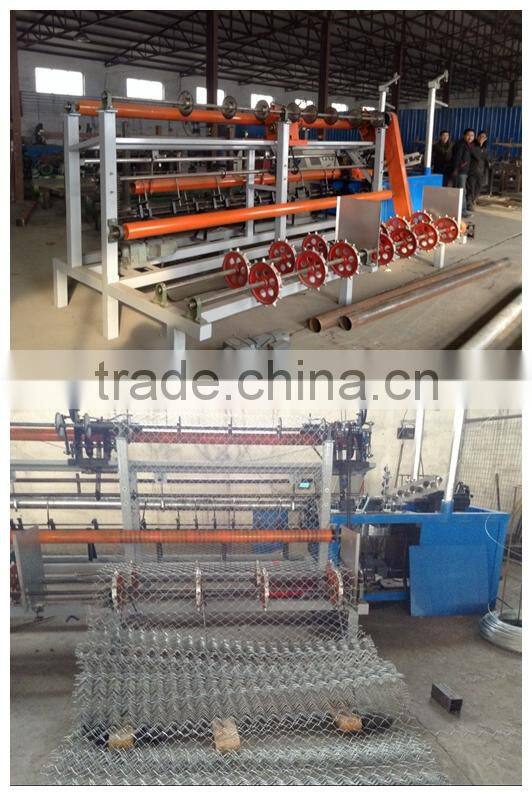

Chain link machine for manufacturing chain link fences of different sizes.
The wire is taken in from the payoff stand and passed through the dies where the
DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond
pattern wire is automatically thrown on the winding shaft in the stitching process. Once
the stitching is complete the woven is manually glided down to enable the next
stitch to take place. The chain link is automatically wound to form rolls when the desired
length is manufactured.The machine is controlled by PLC automatic controller, so only one
person is needed to operate it.
Electric System:
The machine is controlled by PLC automatic controller
Germany Siemens PLC origin
The inverter is selected from high quality products
Of Japan”YASKAWA”
Electrical
Low-voltage electrical from Germany Schneider
Electric&Machinery from Taiwan Teco Electric
Clutch from Taiwan YA CO,.LTD.
Suitable wire to the machine:
High-quality low carbon steel wire, Galvanized steel wire,Stainless steel wire, Aluminum alloy wire, Aluminum-clad steel wire.
Main parameter of full automatic chain link machine
1.Width scope of weaving: 1-4m
Wire scope of weaving: 2-4mm
Mesh scope of weaving: 30-100mm
With 3 sets of mesh model at buyer's requirements
2.The machine is controlled by PLC automatic controller, so only one person is needed to operate it
3.The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be: 1M2/min.
4.Suitable wire to the machine: the tensile scope of the wire
300-500N/M2
5.Use compacting machine to make it into rolls
6.Total power of equipment 11kw
7.Weight of equipment: 4200kg
8.Outside size: main machine: 6700x1430x1800mm
Specification diameter of wire | |||||||
Mesh pitch(mm) |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
wire Diameter (mm) |
2.0-2.5 |
2.0-2.5 |
2.0-3.0 |
2.0-4.0 |
2.0-4.0 |
2.0-4.0 |
2.0-4.0 |
| Packaging Detail: | According to International Standards to avoid any damage during loading, transportation and unloading. |
| Delivery Detail: | 30 Days after the receipt of advanced payment |
We have been follow the policy of good quality,timely delivery,reasonable price and complete service in providing services for our customers.after so many years hadworking,our products are exported to Europe ,America,Middle east,Southeast Asia , Africa countries and regions.
Welcome to contact us.

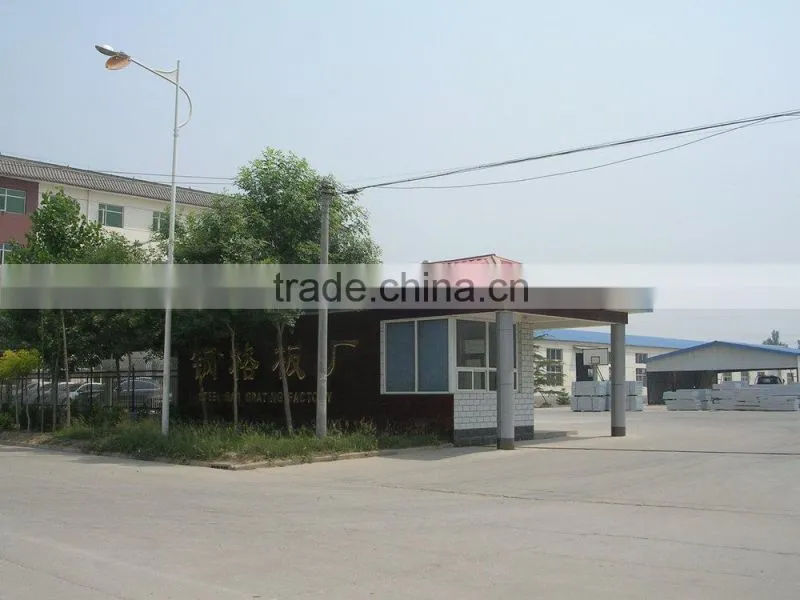

Anping xinhong wire mesh co.,ltd,established in 1992, is located in anping country ,the largest“wire mesh manufacturing base”of Asia .the company's main products include steel grating,wire mesh fence ,perforated metal meh , barbed wire and further processed wire mesh products.
our company has sturdy institutional framwork,complete equipment necessary,advanced manufacture workmanship and strong technical force.it has passed the ISO9001 international quality certification and got the traffic engineering product batch production certificate ,which is issued by the communications traffic engineering test center.
