ZOV Varistors

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Port HONGKONG/SHENZHEN/GUANGZHOU
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ZOV, ZOV
Model Number	D/K

Product Description

I:Product features of metal oxide varistor :

A: wide voltage range

B: high current capacity

C: fast response time

II: Product applications:

A: semiconductor devices

B: household appliances surge

C: communication& power facilities surge

D: measuring controlling instruments

E: action surge of ralay & solenoid valve

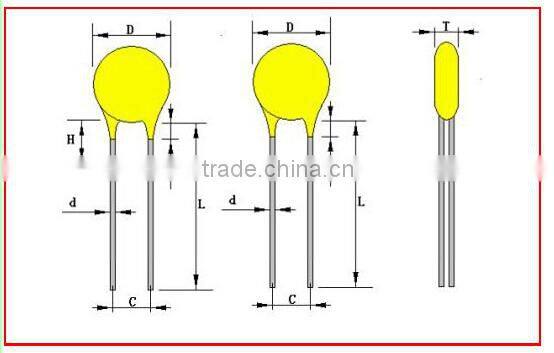

III:Dimensions of varistors

Models	Dmax	Tmax	Lmin	C	H	d±0.05	Fmax
05D	7.5	7.0	25	5	9	0.56	4
07D	9.5	7.0	25	5	9	0.7	4
10D	14	9.5	25	7.5	9	0.7	4
14D	17.5	12.0	25	7.5	9	0.7	4
20D	24	14.0	25	10	9	1.0	4
25D	30	14.0	25	10	9	1.0	4
32D	36	14.0	25	10	9	1.0	4

IV: Specifications of types of varistor

07D type

Model Number	Volt	maximum continuous voltage	maximum continuous voltage	maximum peak current	Maximum limit current	Maximum limit voltage	capacitance
	(V)	AC(V)	DC(V)	(A)	IP(A)	(V)	(PF)
07D180K	18	11	14	250	2.5	36	3500
07D220K	22	14	18	250	2.5	43	2800
07D270K	27	17	22	250	2.5	53	2000
07D330K	33	20	26	250	2.5	65	1500
07D390K	39	25	31	250	2.5	77	1350
07D470K	47	30	38	250	2.5	93	1150
07D560K	56	35	45	250	2.5	110	1050
07D680K	68	40	56	250	2.5	135	950
07D820K	82	50	65	1200	10	135	900
07D101K	100	60	85	1200	10	165	800
07D121K	120	75	100	1200	10	200	600
07D151K	150	95	125	1200	10	250	500
07D181K	180	115	150	1200	10	300	400
07D201K	200	130	170	1200	10	340	300
07D221K	220	140	180	1200	10	360	300
07D241K	240	150	200	1200	10	395	270
07D271K	270	175	225	1200	10	455	250
07D301K	300	195	250	1200	10	505	240
07D331K	330	215	275	1200	10	555	220
07D361K	360	230	300	1200	10	595	190
07D391K	390	250	320	1200	10	650	180
07D431K	430	275	350	1200	10	710	170
07D471K	470	300	385	1200	10	775	150
07D511K	510	320	410	1200	10	845	130
07D561K	560	350	455	1200	10	925	110
07D621K	620	385	505	1200	10	1025	100
07D681K	680	420	560	1200	10	1120	90

07D type

Model Number	Volt	maximum continuous voltage	maximum continuous voltage	maximum peak current	Maximum limit current	Maximum limit voltage	capacitance
	(V)	AC(V)	DC(V)	(A)	IP(A)	(V)	(PF)
10D180K	18	11	14	500	5	36	9000
10D220K	22	14	18	500	5	43	7500
10D270K	27	17	22	500	5	53	6500
10D330K	33	20	26	500	5	65	5500
10D390K	39	25	31	500	5	77	5000
10D470K	47	30	38	500	5	93	4500
10D560K	56	35	45	500	5	110	3500
10D680K	68	40	56	500	5	135	2500
10D820K	82	50	65	2500	25	135	2000
10D101K	100	60	85	2500	25	165	1900
10D121K	120	75	100	2500	25	200	1650
10D151K	150	95	125	2500	25	250	1500
10D181K	180	115	150	2500	25	300	1000
10D201K	200	130	170	2500	25	340	650
10D221K	220	140	180	2500	25	360	610
10D241K	240	150	200	2500	25	395	600
10D271K	270	175	225	2500	25	455	580
10D301K	300	195	250	2500	25	505	560
10D331K	330	215	275	2500	25	555	530
10D361K	360	230	300	2500	25	595	500
10D391K	390	250	320	2500	25	650	480
10D431K	430	275	350	2500	25	710	450
10D471K	470	300	385	2500	25	775	350
10D511K	510	320	410	2500	25	845	300
10D561K	560	350	455	2500	25	925	250
10D621K	620	385	505	2500	25	1025	200
10D681K	680	420	560	2500	25	1120	180
10D751K	750	460	615	2500	25	1240	170
10D821K	820	510	670	2500	25	1355	160
10D911K	911	550	745	2500	25	1500	150
10D102K	1000	625	825	2500	25	1650	140
10D112K	1100	680	895	2500	25	1815	140

14D type

Model Number	Volt	maximum continuous voltage	maximum continuous voltage	maximum peak current	Maximum limit current	Maximum limit voltage	capacitance
	(V)	AC(V)	DC(V)	(A)	IP(A)	(V)	(PF)
14D180K	18	11	14	100	10	36	21000
14D220K	22	14	18	1000	10	43	16000
14D270K	27	17	22	1000	10	53	11500
14D330K	33	20	26	1000	10	65	9000
14D390K	39	25	31	1000	10	77	7500
14D470K	47	30	38	1000	10	93	6600
14D560K	56	35	45	1000	10	110	5500
14D680K	68	40	56	1000	10	135	4900
14D820K	82	50	65	1000	50	135	4600
14D101K	100	60	85	1000	50	165	3600
14D121K	120	75	100	1000	50	200	2800
14D151K	150	95	125	1000	50	250	2400
14D181K	180	115	150	1000	50	300	1800
14D201K	200	130	170	1000	50	340	1300
14D221K	220	140	180	1000	50	360	1250
14D241K	240	150	200	1000	50	395	1150
14D271K	270	175	225	1000	50	455	1100
14D301K	300	195	250	1000	50	505	1000
14D331K	330	215	275	1000	50	555	980
14D361K	360	230	300	1000	50	595	930
14D391K	390	250	320	1000	50	650	880
14D431K	430	275	350	1000	50	710	750
14D471K	470	300	385	1000	50	775	620
14D511K	510	320	410	1000	50	845	540
14D561K	560	350	455	1000	50	925	470
14D621K	620	385	505	1000	50	1025	400
14D681K	680	420	560	1000	50	1120	380
14D751K	750	460	615	1000	50	1240	360
14D821K	820	510	670	1000	50	1355	360
14D911K	911	550	745	1000	50	1500	340
14D102K	1000	625	825	1000	50	1650	320
14D112K	1100	680	895	1000	50	1815	280

Packaging & Shipping

Sample shipment: International express to be collected

Goods shipment: International express, airport to airport, sea
