Home > Construction & Decoration > Decoration Materials > Sandwich Panel > Stainless Steel Grate With High Quality ( Factory & Exporter)

Stainless Steel Grate With High Quality ( Factory & Exporter)

Name: Stainless Steel Grate With High Quality ( Factory & Exporter)
Brand: xinhong
SKU: 131980509

Stainless Steel Grate With High Quality ( Factory & Exporter) thumbnail-1

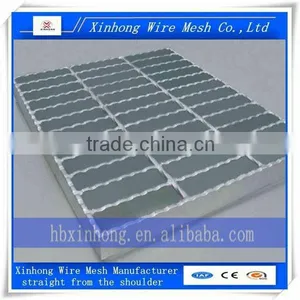

Stainless Steel Grate With High Quality ( Factory & Exporter) thumbnail-2

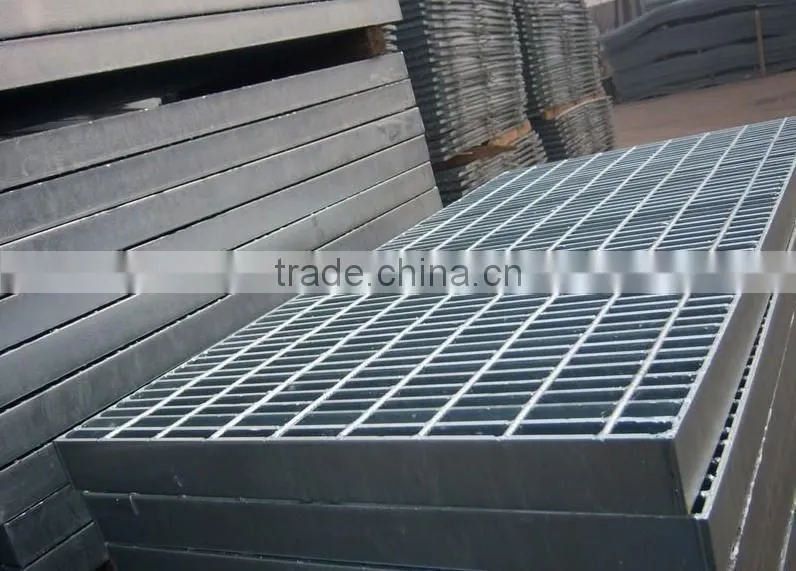

Stainless Steel Grate With High Quality ( Factory & Exporter) photo-1

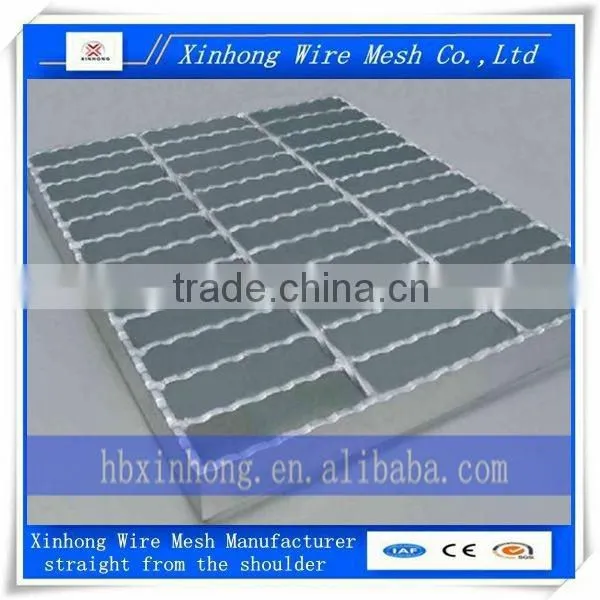

Stainless Steel Grate With High Quality ( Factory & Exporter) photo-2

US$ 9.85 - 19.85 MOQ: 100 Tons

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

xinhong

Model Number:

XH-S59

Contact Supplier Request Quote Chat Now

Anping Xinhong Wire Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name xinhong

Model Number XH-S59

Material Steel

Specifications

Steel grid material:low carbon steel
Steel grid finish treatment:hot dipped galvanized,
ISO 9001:2000
DO OEM

Product Description

stainless steel grating product information :

a. Material: Q235B, A36, SS400, S235JR, SS304, SS316, SS304L, SS316L

b. Dimension: Thickness: 3mm-10mm

c. Flat bar pitch: 30mm,40mm,50mm,60mm

d. Twisted bar pitch: 50mm, 100mm

e. Length: Regular as 3m per piece

f. Material: A36 or equivalent material, SS304, SS316

g. Advantage: light weight, heavy load capacity, easy installation

h. Surface treatment standard: GB/T13192, BS EN ISO 1461-2009

i. Technical standard: YB/T 4001.1-2007 (GB), ANSI/NAAMM(MBG531-88) ( ANSI), BS4592-1987, AS1657-1985, DIN24537-1-2006.

j. Surface treatment: Hot DIP galvanized, painting, acid washing and polishing for stainless steel grating.

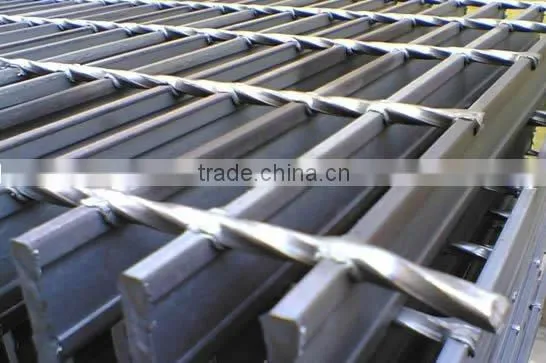

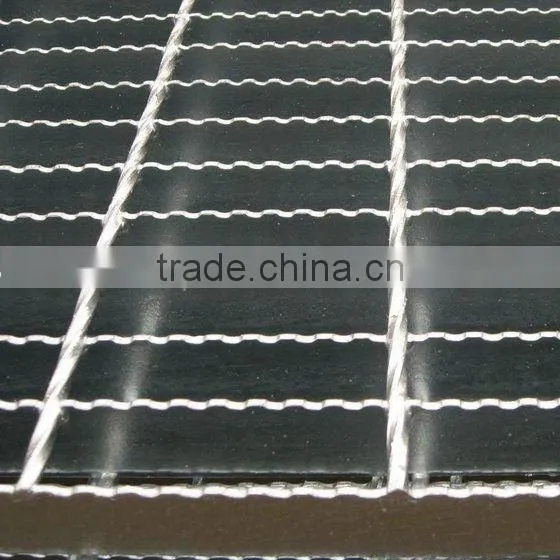

k. Cross bar type: Round bar, I bar, twisted bar, twisted square bar. Flat bar type: Plain or serrated

Processing:

by the load flat steel bar and with a certain amount of distance warf and weft,high pressure resistance welding machine from the original plate welding, cutting the incision, opening, the processes of deep-packet processing form.

Feature:

The product of a simple, light weight, load, impact resistance, the hot dip zinc treated appearance and durability, and anti-rust anti-corrosion, surface gloss appearence with ventilation.

standard:

Bearing bar pitch as30mm, crossing bar as 50mm and 100mm

Size (mm)	Weight kg/m2	Size(mm)	Weight kg/m2
255/30/50	54.1	255/30/100	45.8
325/30/50	64.6	325/30/100	56.2
355/30/50	69.1	355/30/100	60.7
405/30/50	76.6	405/30/100	68.2
455/30/50	84.0	455/30/100	75.7
505/30/50	91.5	505/30/100	83.2
555/30/50	99.0	555/30/100	90.7
605/30/50	106.5	605/30/100	98.3
655/30/50	114.0	655/30/100	105.7

PE Coated

Pakage

standard Specification

Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
Series	Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
Series	Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Packaging & Shipping

Packaging Detail:	fasten wooden blocks under packing by using twisted square steel and fastener
Delivery Detail:	5 days

Our Services

We have been follow the policy of good quality,timely delivery,reasonable price and complete service in providing services for our customers.after so many years hadworking,our products are exported to Europe ,America,Middle east,Southeast Asia , Africa countries and regions.

Welcome to contact us.
