Product Details
Place of Origin: | Hebei, China | Brand Name: | XH | Model Number: | XH-CLM |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
automatic wire fence making machines :

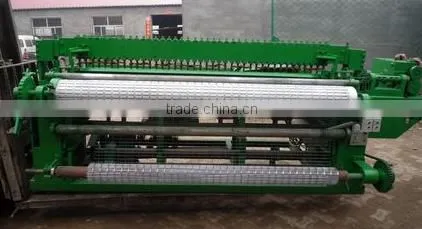

xinhong factory have 24 years at machine ,we have welded wire mesh machine ,chain link fence machine ,steel grating machine ,barbed wire machine ,perforated metal mesh machine ,

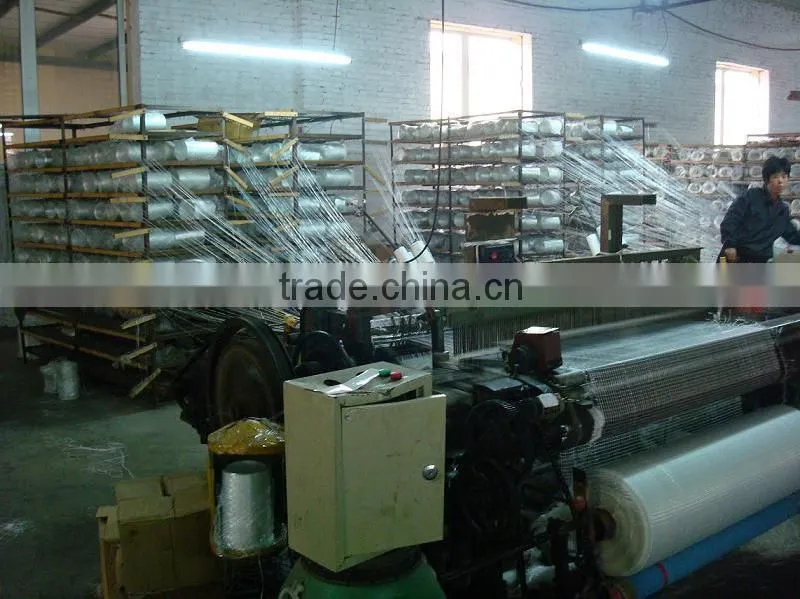

fiberglass mesh machine,ect,if you have request about machine ,please feel free contact us,we will offer our best quality ,best price and best service for you.
automatic wire fence making machines Description:

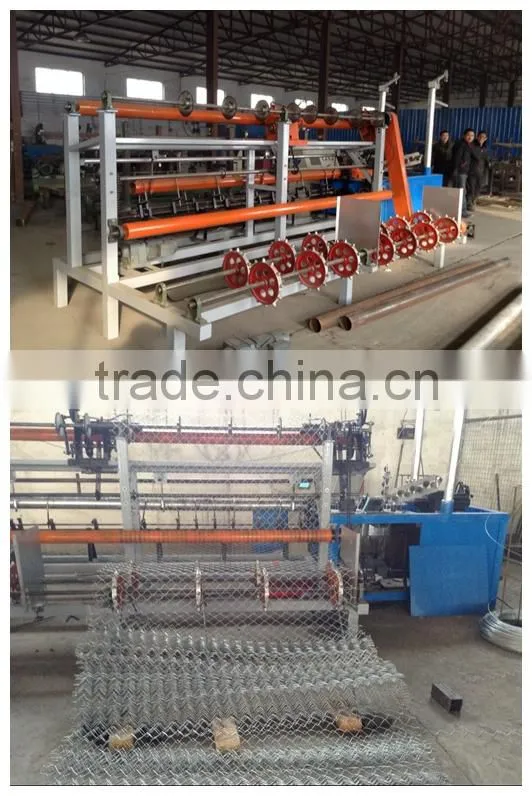

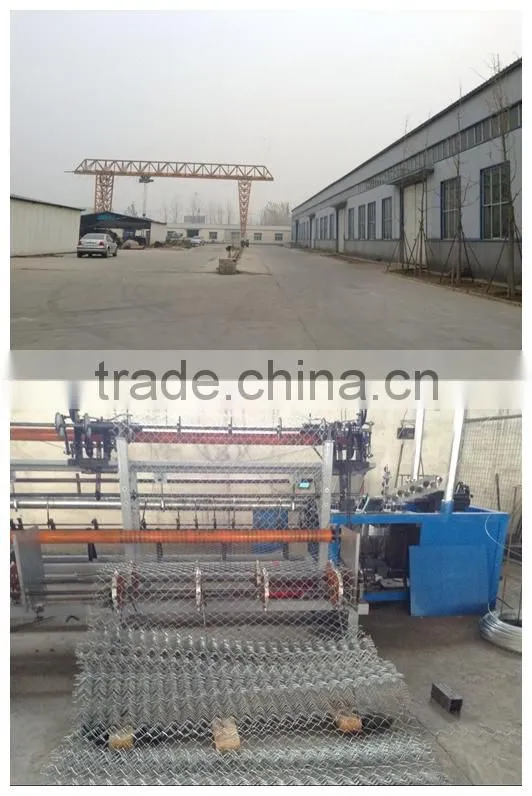

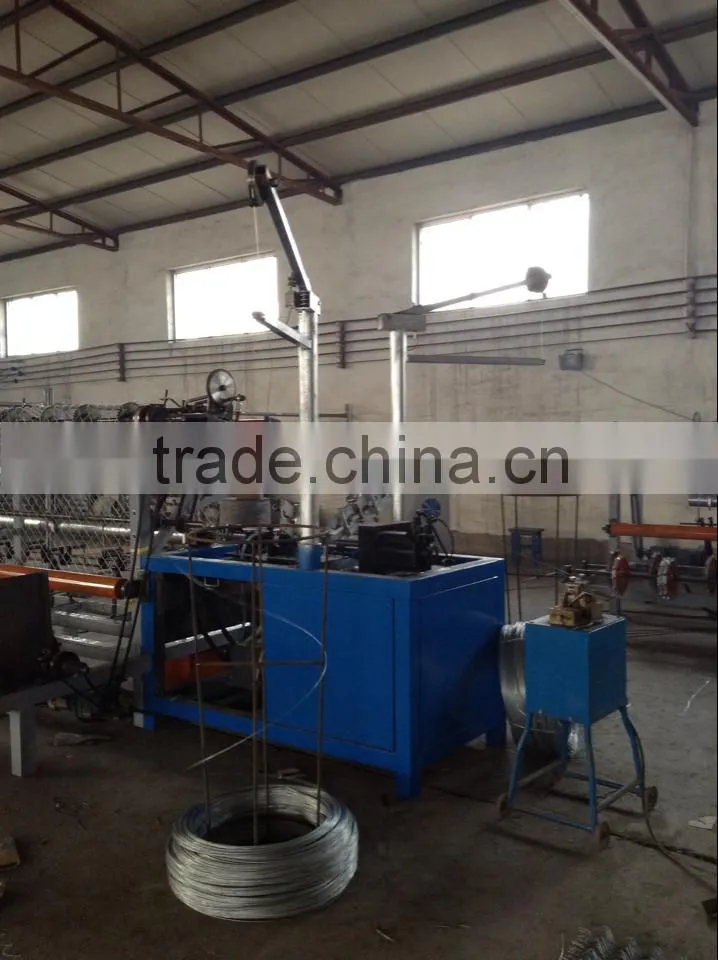

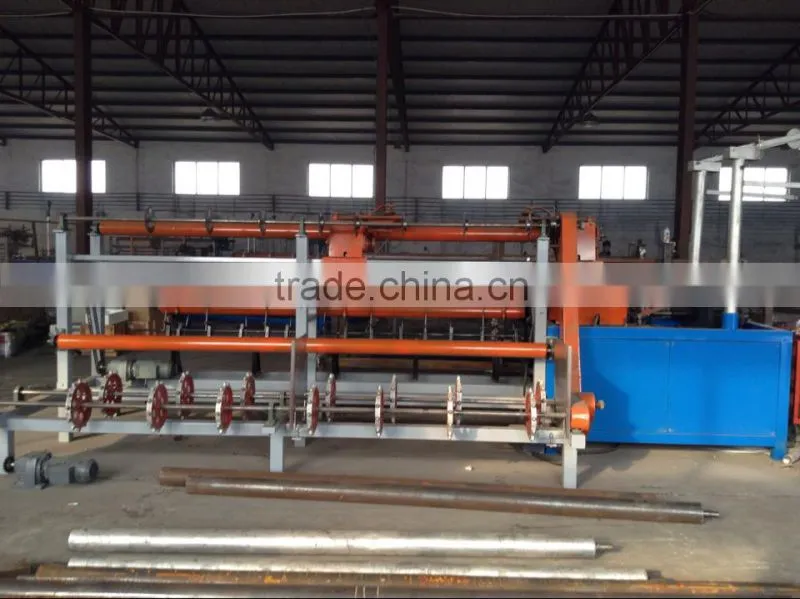

Chain link machine for manufacturing chain link fences of different sizes.
The wire is taken in from the payoff stand and passed through the dies
where the DIAMOND SIZE takes place. Different gap sizes.
After passing from the die the diamond pattern wire is automatically thrown on the winding
shaft in the stitching process. Once the stitching is complete the woven is manually glided down
to enable the next stitch to take place.
The chain link is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to
operate it.
Chain link fence Main parameters
Product Name | Automatic Chain Link Fence Machine |
Function | Chain Link Fencing is extensively used as fences for playground and gardens, super highway, railway, airport, port, residence, etc. |
Wire Diameter(mm) | 1.8-4.0mm Feeding Wire numbers:two(Note:Steel Wire Standard:GB3081-82) |
Mesh Size(mm) | 25x25-100x100 |
Netting width(mm) | 600--4000 |
Capacity(m2/hour) | 60-120 |
Rated Voltage | 380V,50HZ |
Motor Power | 9.0KW |
Weight (T) | 4.2 |
Outside Size | 7000*1430* 1800mm, 5000*1700* 1250mm |
Electric System |
|
Packaging Detail: | According to International Standards to avoid any damage during loading, transportation and unloading. |
Delivery Detail: | 30 Days after the receipt of advanced payment |
We have been follow the policy of good quality,timely delivery,reasonable price and complete service in providing services for our customers.after so many years hadworking,our products are exported to Europe ,America,Middle east,Southeast Asia , Africa countries and regions.
Welcome to contact us.

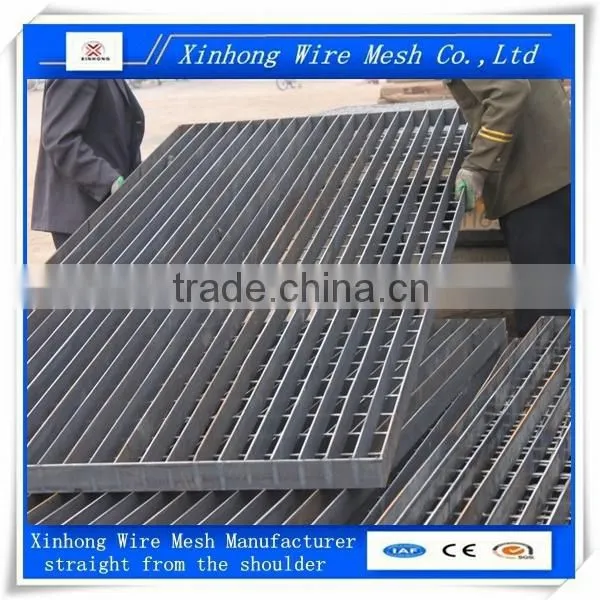

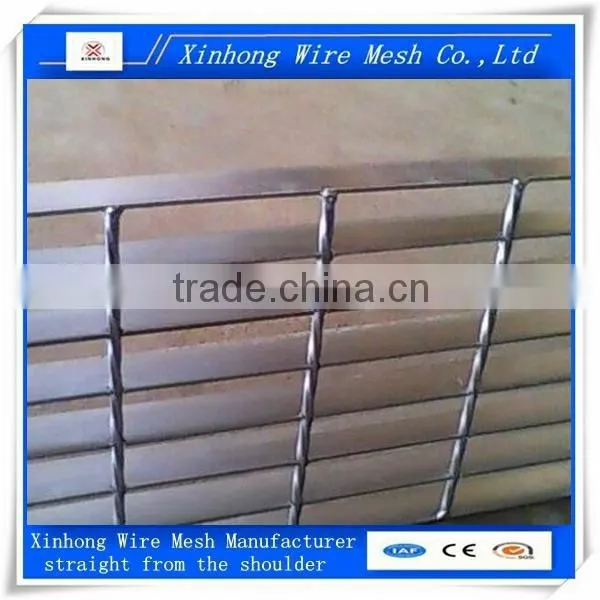

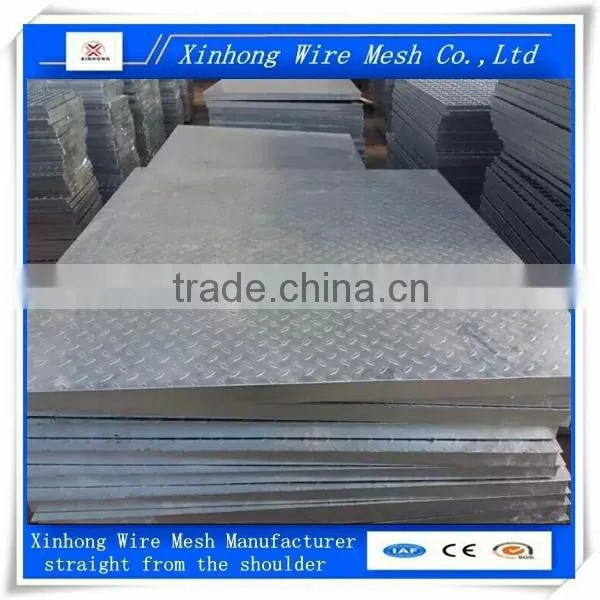

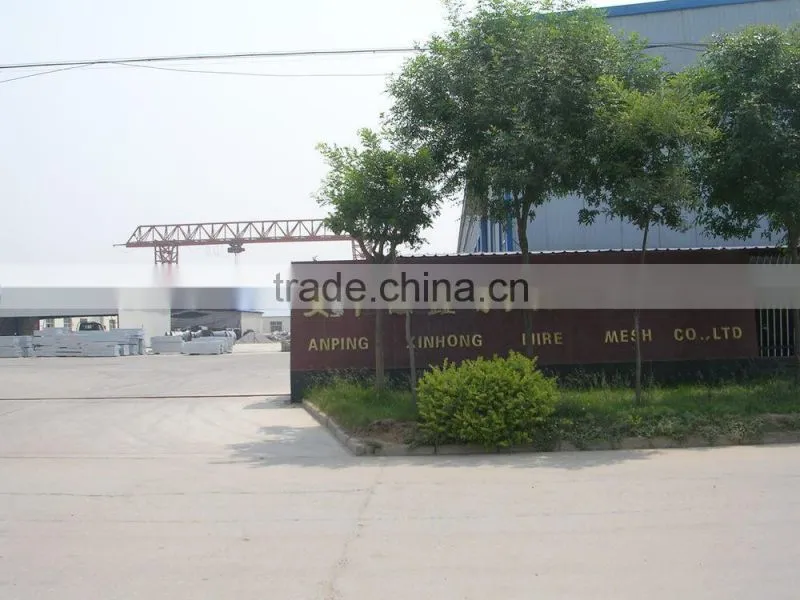

Anping xinhong wire mesh co.,ltd,established in 1992, is located in anping country ,the largest“wire mesh manufacturing base”of Asia .the company's main products include steel grating,wire mesh fence ,perforated metal meh , barbed wire and further processed wire mesh products.
our company has sturdy institutional framwork,complete equipment necessary,advanced manufacture workmanship and strong technical force.it has passed the ISO9001 international quality certification and got the traffic engineering product batch production certificate ,which is issued by the communications traffic engineering test center.
