Electric roller shutter door ,also called garage door ,can use four control ways as remote control , induction , electric control and manual control. Mianly used in garage door , market door , factory door or other place.
- The double thickness of slat is between 0.8mm to 1.5mm .The max production height can reach 9m to 14m ,and has strong ability against violent storm.
- Many different way to installation,including install inner , outter or in center,but little demand of space.Has the advantage of little demand of space, easy and fast to install , pretty apearance.
- Has the protection device,aslo can install touch sensor and wireless control as additional device.
- The roller shutter door ( garage door ), is driven by rolling shutter tubular motor or side rolling shutter motor, with power saving , save ,small noise and over-heat protection. Can use the manual control or culth lever to roll the rolling shutter door down or up when the power off .
| AC 600Kg rolling shutter motor | DC 200Kg rolling shutter motor | AC tubular rolling shutter motor |
The Features Of Products
| Reliable Suppliers | Use only reliable suppliers such as Infineon, TI for high quality electronic components to guarantee the overall performance. |
| Custom-made Protocol | Our tubular motor adopt both standard and custom-made RF protocol to ensure uniqueness anf ultimate protection of xonfidentiality and reliability. |
| Narrowband | The narrow band wireless transmitting anf receiving technology ensures strong anti-interference performance. |
| Transmission Range | The super heterdyne receiver module can guarantee high sensity and reliable reception range up to 200 meters in open ground. |
| Multi-channel Control | One multi-channel remote controller is compatible with all receiver modules, enabling group and individual control. |
| Interal Antenna | The internal antenna gives long-term stable performance by avoiding accidental damage. |
Installation Sketch Map
Technical Data
| DM45M Manual |
Model |
Rated Torque (N.m ) |
Rated Speed (rpm ) | Tube Diamrter (mm ) | Rated Voltage (V) | Rated Frequency (Hz) | Rated Power (W) | Rated Current (A) | Running Time (min) | Degree of Protection (IP) | Max Number of Turns (turn) |
|
230V/50Hz |
DM45M-30/15 | 30 | 15 | 45 | 230 | 50 | 191 | 0.83 | 4 | IP44 | 22 |
| DM45M-40/15 | 40 | 15 | 45 | 230 | 50 | 198 | 0.86 | 4 | IP44 | 22 | |
| DM45M-50/12 | 50 | 12 | 45 | 230 | 50 | 205 | 0.89 | 4 | IP44 | 22 | |
| DM45M-60/8 | 60 | 8 | 45 | 230 | 50 | 208 | 0.92 | 4 | IP44 | 22 | |
| 120V/60Hz | DM45M-30/13 | 30 | 13 | 45 | 120 | 60 | 152 | 1.51 | 4 | IP44 | 22 |
| DM45M-40/13 | 40 | 13 | 45 | 120 | 60 | 166 | 1.48 | 4 | IP44 | 22 | |
| DM45M-50/13 | 50 | 13 |
45 | 120 | 60 | 235 | 2.20 | 4 | IP44 | 22 |

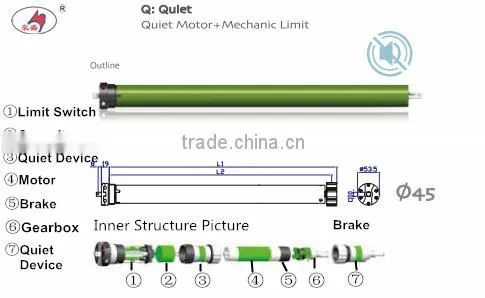

Inner Structure of Tubular Motor
Usage

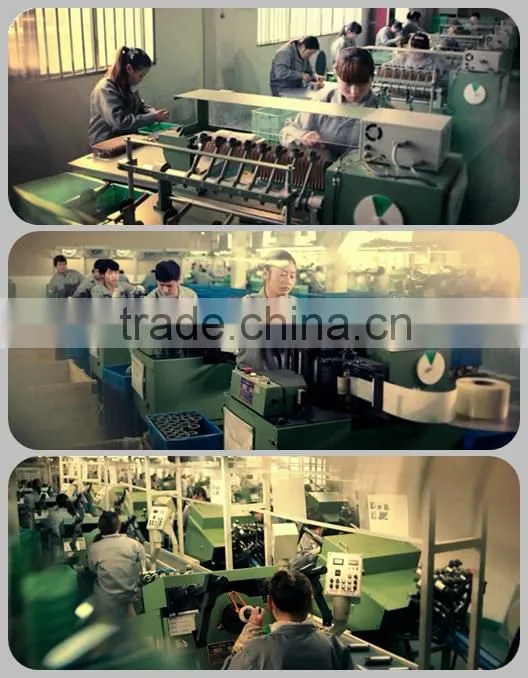

Control Systerm Production
- Solder paste screen print :Print PCB with solder paste for SMT
- Align pasted PCB with fixture for SMT process
- SMT process: mount electronic components on the PCB precisely with computerized schematic layout
- Automatic reflow soldering and inspection of the quality of soldering points
- Using the wave soldering machine to solder the DIP components on the PCB
- Final inspection of the quality of components and soldering points

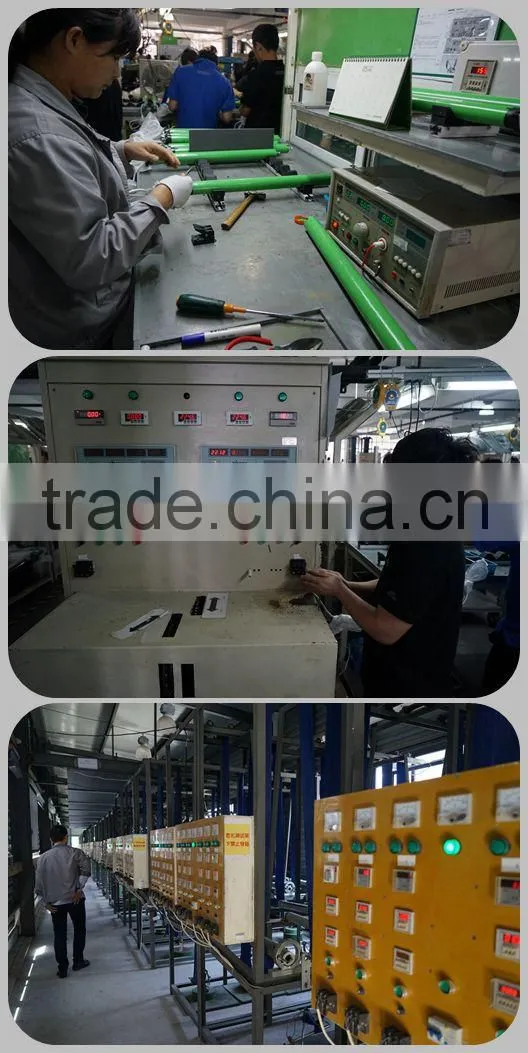

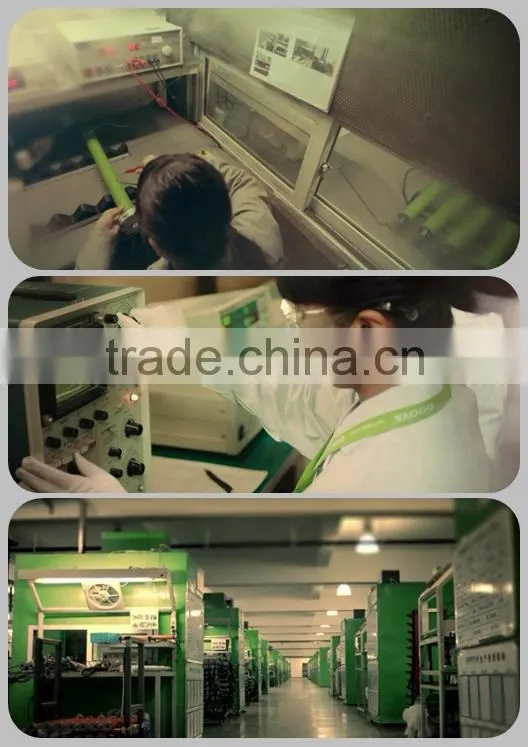

Incoming Quality Control
- ROHS compliance tester to inspect the content of 6 hazardous substance in every incoming material and components.
- Salty -mist tester to verifty the durability of surface coating on every tube.
- The runout tester to inspect the runout tolerance of all high speed rotation parts such as gears and sharfts.
- The bearings comply with rechnical requirements
- The dimension projector to control the tolerance of critical dimensions of components in gearbox and brake systerm.
- The electrical performance tester to check the quality of windings in the stator.
More Products
AC ROLLING SHUTTER MOTOR
| AC500Kg rolling shutter motor | AC 1000Kg rolling shutter motor | AC 800Kg rolling shutter motor | AC 200Kg rolling shutter motor |
| DC 200Kg rolling shutter motor | DC 500Kg rolling shutter motor | DC 800 Kg rolling shutter motor |

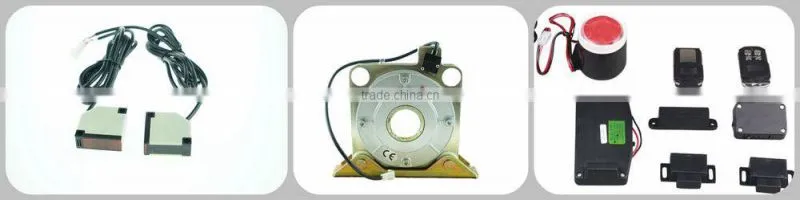

| Photocell | Brake Systerm | Touch sensor |
| Certificate | TUV ,CE , CCC , ROHS , ISO9001 |
| Warranty | 5 YEARS |
| OEM & ODM | Yes |
| AC tubular motor include | Tubular motor, Crown, Drive adapter , Bracket , Screws |
| AC tubular motor optional | Remote control dc155 , transmitter, idler bracket , wall bracket |
| Motor Package |
1.Tubular motor in one small carton with foam 2. Six small cartons in one big carton with tray |
Trade market
ZHANGZHOU HAOHUA ELECTRICAL CO., LTD.,established in 2003,is a professional manufacturer engaged in the research,development,production,sale and service of AC ROLLING DOOR MOTOR,AC&DC ROLLING DOOR MOTOR,FIREPROOF ROLLING DOOR MOTOR,TUBULAR MOTOR,SHUTTER FORMING MACHINE.We are located in ZHANGZHOU CITY,FUJIAN PROVINCE with convenient transportation access.Dedicated to strict quality control and thoughtful customer service,our experienced staff members are always available to discuss your requirements and ensure full customer satifaction.In recent years,our company has introduced a series of advanced equipment including Multi-function generator,test instrument,aging equipment.In addition,we have obtainedISO9001:2008,CE,CCC certificates.Selling well in all cities and provinces around China,our products are also exported to clients in such countries and regions as Middle East,South America,South Africa,Southeast Asia,East Asia.
We also welcome OEM and ODM orders.Whether selecting a current product from our catalog or seeking engineering assistance for your application,you can talk to our customer service center about your sourcing requirements.We warmly welcome customers from at home and aboroad to estabilsh cooperation and create a bright future with us together.
Our Company
Sample Room
Why Choose us?
- We specilized in producing rolling door motors and tubular motor for more than 13 years,our company is not a trading company, we are a factory,we producing the rolling door motors and tubular motors by ourselves.Our factory has nearly 100 workers ,we also produce the brackets by ourselves,so we can reduce the dilivery time.Every products we made,we all need to test,so as to know how is the rolling door motor works.So we have confidence that the rolling shutter motors and tubular motors we produce all can satify your need .
- If you have any questions about the products,please contact me whenever you want,I will try my best to solve your problems at the first time.
- Our company is vice chairman of door association.
- Fast Delivery Time.
- All products we produced all with ISO &CE standard.
Welcome to receive your inquiry,we will try our best to solve your problem.Thank you~~
Contact me !!!!
Any quetions about the rolling door motor,contact me whenever you are free.We will try our best to satisfy you well.Thank you for you inquiry!
