US$ 80 - 238
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, GB, JIS
Grade:
high quality and low carbon steel
Dimensions:
various sorts
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard
AISI, ASTM, BS, GB, JIS
Grade
high quality and low carbon steel
Dimensions
various sorts
Place of Origin
Hebei, China
Brand Name
XH
Model Number
XH-519
Type
Heavy
Application
Steel Walkway And Floor
Specifications
Steel gratingISO9001
High voltage resistence welding
Excellent quality with reasonable price
Shipment on time

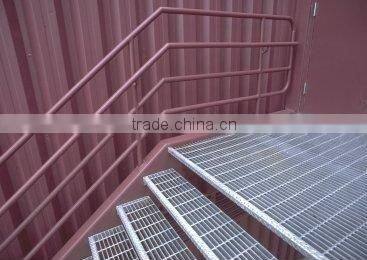

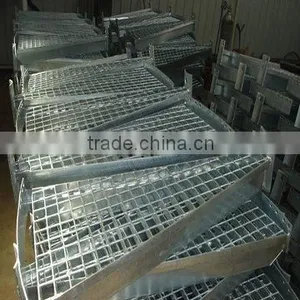

Steel grating

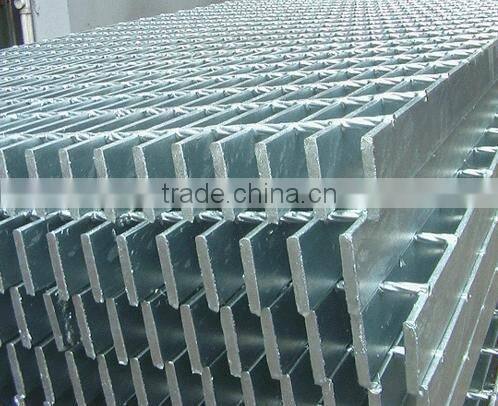

Steel grid is a product, made of bearing steel bars welded to the linking wire rod of high voltage resistance welding, which is further processed by cutting, slotting, stiletto , trimming and edge binding.
Feature: high strength, light structure with firm grids pressure welded structure and high bearing property, easy suspending installation, beautiful appearance ,durability with hot galvanized finish, good anti-corrosive property, and bright surface, good ventilation, lighting. cooling and anti-explosion. and deposit-proof.
| Series | striate-bar pitch | Cross-bar Pitch | ||||||
| Specification of bearing bar load(width×thickness) | ||||||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | ||||||
| Specification of bearing bar load(width×thickness) | ||||||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
