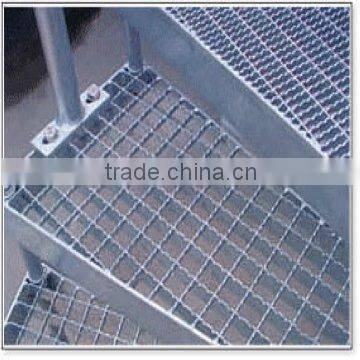

plain steel grating

FOB Price

USD $1,000 - $1,200 / Ton

20 Tons(Min.Order)

Product Details

Place of Origin:	Hebei, China	Brand Name:	xinhongwiremesh	Model Number:	various sorts
Material:	Other, Stainless Steel, low carbon steel wire ,stainless steel wire ,aluminum alloy wire

plain steel grating
1. Pressure welding
2. Competitive price
3. Shippment on time
4. ISO9001

plain steel grating

Material: Mid steel ,stainless steel 304 or 316

Martering bar specification : 20mm*3mm to 90mm*7

Bearing bar pith: 12.5mm ,25mm,30mm,33.5mm,37.5mm,40mm,50mm,60mm

Cross bar specification : 5mm*5mm 6mm*6mm 8mm*8mm

Cross bar pith: 25,38,50,50,8,76,100,101.6

Maximun length: 6,100mm

Surface treatment: untreated paint or hot-dip galvanized .

Standard

China: YB/T4001-1998

USA: ANSI/NAAMM(MBG531-88)

UK: BS4592-1987

Australia: AS1657-1985

Japan: JJS

Series	striate-bar pitch	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
1	30	100	20×3	25×3	32×3	40×3	20×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100
		50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100
		50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50

Series	striate-bar pitch	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
1	30		32×5	40×5	45×5	50×5	55×5
1	30	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
		G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
		G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

For more information please visit our web-site or connect me .

Welcome to our factory .O(∩_∩)O

Anping xinhong wire mesh co., ltd.

Contact person : Ms Susan

Tel: 0086-031166686606

MB:0086-13073102075

Anping Xinhong Wire Mesh Co., Ltd.: Contact nameJustin Wang; Phone0086-0318-7519828; AddressThe wire mesh industrial zone,Anping County. Hengshui,Hebei
