View of Inside:
:
* Auto gate stop and re-open when an obstacle is encountered.
* Emergency release key in case of power failure
* Convenient midway mode
* Adjustable resistance sensitivity.
* Stop/Reverse in case of obstruction during gate opening/closing.
* Built -in adjustable auto-close .
* Digital display indicates the running situation and setting menu
* Reliable limit switch (electromagnetism) for easy adjustment
* Built-in max motor running time (MRT) adjustable for multiple safety protection
* Easy to handle and low maintenance
* Guarantee: Normally one year after the shipping, but our after sales service last for lifelong time.

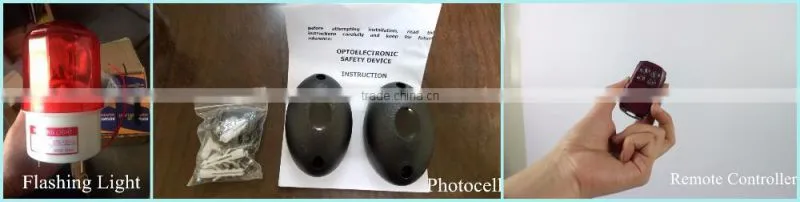

Optional Accessories:
| Model | LW550 | LW400 | LW370 |
| Max.Gate Weight | 1500kg | 800kg | 500kg |
| Power Supply | 220V±10% or 110V ±10% | ||
| Gate Speed | 12m/min | ||
| Environment Temp. | -45 ℃ ~ +55 ℃ | ||
| Limit Swith | Spring Linit Or Magnetic Limit Swith | ||
| Protecting Class | IP44 | ||
| Motor Rotational Speed | 1400RPM | ||
| Output Rotational Speed | 46.6R/MIN | ||
Packing Detail:Gate Operators with foam in Cartoon.
Deliverr Details: 7-35 days after receiving your deposite.
"Our Purpose Is to Better Serve Customers"
ZHANGZHUO HAOHUA ELECTRICAL CO.,LTD.
*Be Honest
*keep Contract
*Value Quality
Zhangzhou Haohua Electrical Co.,Ltd. locatde in the Golden Triangle Economic Zone of southern Fujian, integrates produt R&D, manufactue, sale and service.We are specalized in rolling door motors ,fireproof door motors and other related tubular motor for 14 years.Haohua now has advanced technology and a complete quality control system. our products are safe,small and easy to maintain,and feature light weight,low noise and elegant design,and widely used in public places.
Welcome to visit our webisite:Click here~Http://
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
