Help CenterRolling Shutter Motor DC-300Kg/garage Door Opener With ISOstandard
Related Products
-
JMJ168/3.7-DC-1 (300Kg) Side Roll Garage Door OperatorNegotiableMOQ: 20 Sets -
Automatic Rolling Door Operators Type for Shutter DoorsNegotiableMOQ: 20 Sets
-
Gate Operators Type Roller Shutter Motor dc 24V Battery BackupNegotiableMOQ: 20 Sets
-
DC Electrical Rolling Shutter Door Motor/rolling Door Motor/reserve BatteryNegotiableMOQ: 20 Sets
-
JMJ Series DC - 800Kg Roller Door Motor Copper dc Motor 12 V Side MotorUS$ 1 - 1MOQ: 1 Set

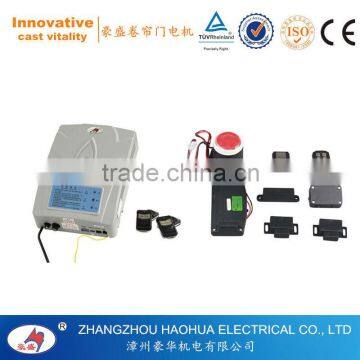

AC&DC rolling door motor is the new develop product of our company, this type of motor uses our company many new patent technology,thus more outstanding performance,install more forthright,running more reliable.The biggest advantage of AC&DC motor is that it can usenot only in normal power situation but also when the power failure.
1.The function of remote control is up/stop,down/stopan and locked. |
2.To prevent the transmitter lock the motor by mistake,so it need to press the botton about 2 seconds and then the rolling door motor wiil be locked.And press the stop botton it will be unloked. |
| 3.The manual botton can make the rolling door motor up,down and stop. |
| 4.The remote control can add SAB SAE SAH allocation to realize the rolling door can rebound when block something. |
| 5.Can add wireless door magnetic and buzzer,so as to realize alarm function. |
6.If the power supply cut off ,the UPS can supply the power for rolling door motor.So as to ensure the rolling door motor can up and down for about 20 times. |

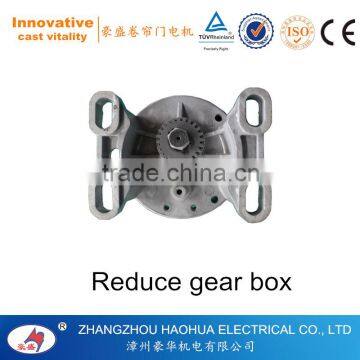

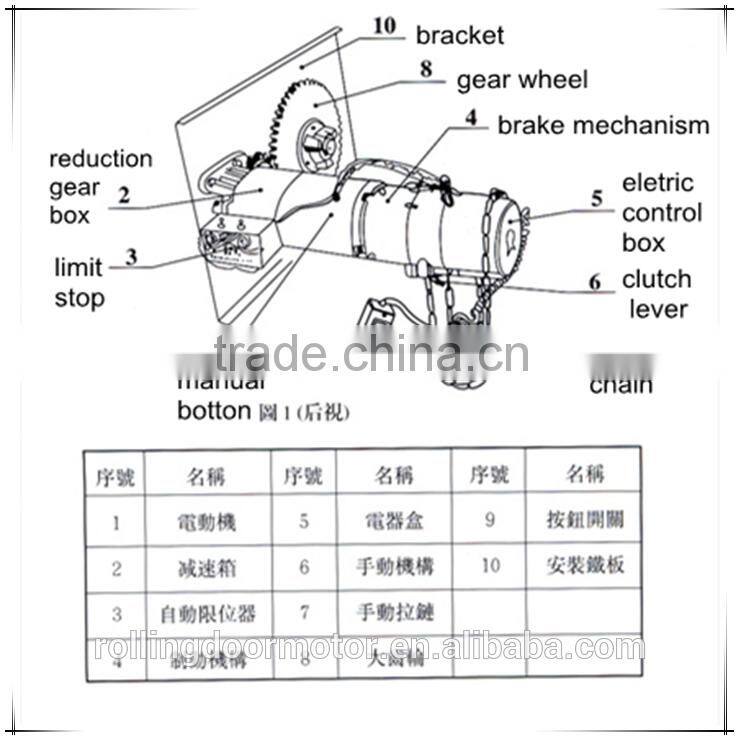

- Main Structure
- Technical Specification
- The air and temperature change with the season.
- Related humidity is less than 90%.
- Short rated rolling door motor,can be continuous used over 10 minutes.
|

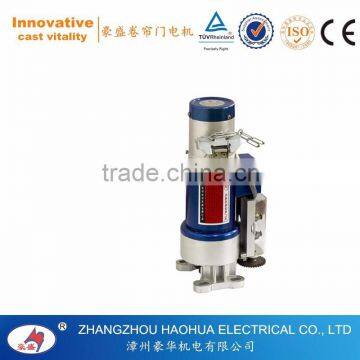

ROLLING DOOR MOTOR
|
Type | Adaptable Voltage | Rated Power(W) | Ratedload | Standard Barrel Dim(Inch) | Sproket Motor/Barrel | ||
| Lifting force(Kg) | Max Height( m) | Output Speed(r/m) | ||||||
DC rolling door motor |
JMJ168/3.7-DC-I(300Kg) | AC220V±10%/50Hz |
150 | 300 |
4 | 3.7 | 4 | 9T/45T |
| JMJ168/4.9-DC-(300Kg) | 200 | 300 | 5 | 4.9 | 5 | 9T/47T | ||
| JMJ168/4.6-DC-(500Kg) | 240 | 500 | 5 | 4.6 | 5 | 9T/47T | ||
| JMJ168/4.2-DC-(600Kg) | 240 | 600 | 5 | 4. 2 | 5 | 9T/54T | ||
| JMJ168/3.9-DC-(800Kg) | 380 | 800 | 5 | 3.9 | 5 | 9T/54T | ||
| AC rolling door motor | JMJ168/5.2-1P-I(300Kg) | 220V/50Hz | 180 | 300 | 6 | 5.2 | 4 | 9T/55T |
| JMJ168/5.5-1P-(300Kg) | 250 | 300 | 6 | 5.2 | 4 | 9T/55T | ||
| JMJ168/5.9-3P(300Kg) | 180 | 300 | 6 | 5.2 | 4 | 9T/55T | ||
| JMJ345/6.2-1P-(500Kg) | 370 | 500 | 7 | 6.2 | 5 | 9T/47T | ||
| JMJ345/6.2-3P-(500KG) | 250 | 500 | 7 | 6.2 | 5 | 9T/47T | ||
| JMJ412/5.2-1P-(600KG) | 370 | 600 | 6 | 5.2 | 5 | 9T/54T | ||
| JMJ412/5.2-3P-(600KG) | 250 | 600 | 6 | 5.2 | 5 | 9T/54T | ||
| JMJ650/3.4-1P-(800KG) | 400 | 800 | 10 | 3.4 | 6 | 9T/54T | ||
| JMJ650/3.4-3P-(800KG) | 300 | 800 | 10 | 3.4 | 6 | 9T/54T | ||
| JMJ810/4.2-1P(1000KG) | 800 | 1000 | 10 | 4.2 | 6 | 9T/50T | ||
| JMJ810/4.2-3P(1000KG) | 400 | 1000 | 10 | 4.2 | 6 | 9T/50T | ||
| JMJ1050/4.2-3P(1300KG) | 600 | 1300 | 13 | 4.2 | 6 | 9T/50T | ||
| JMJ1220/3.8-1P(1500KG) | 1200 | 1500 | 13 | 3.8 | 6 | 9T/57T | ||
| JMJ1220/3.6-3P(1500KG) | 800 | 1500 | 13 | 3.8 | 6 | 9T/57T | ||
| JMJ2450/3.8-3P(2000KG) | 1200 | 2000 | 13 | 3.6 | 8 | 8T/51T | ||
- Feature of rolling door motor
- Pretty appearance,advanced structure and strong horsepower.
- Low noise,small vibration,low consumption.
- Light weight,small size,convenient installation,long life.
- With convenient and stable remote control systerm.
- The transmitter has the energy saving lamp which can be used 3minutes.

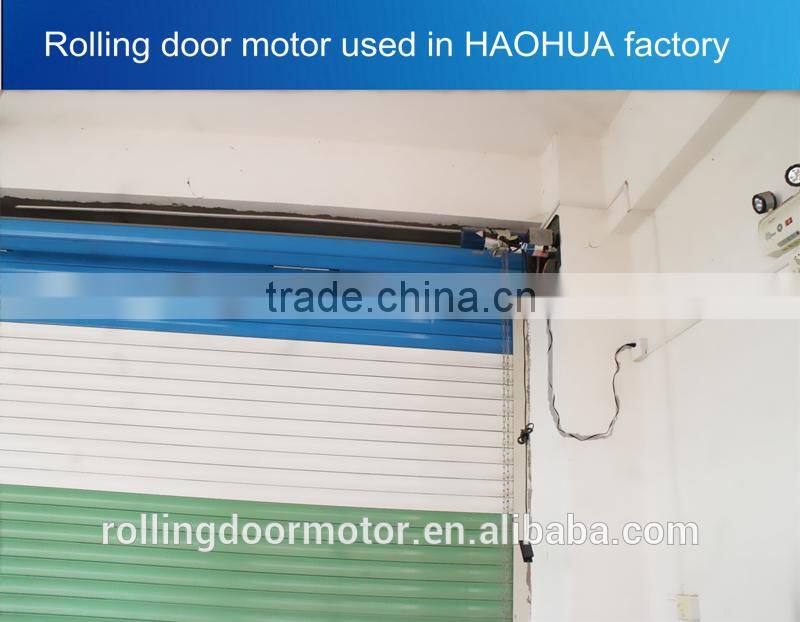

- Installation IN HAOHUA FACTORY

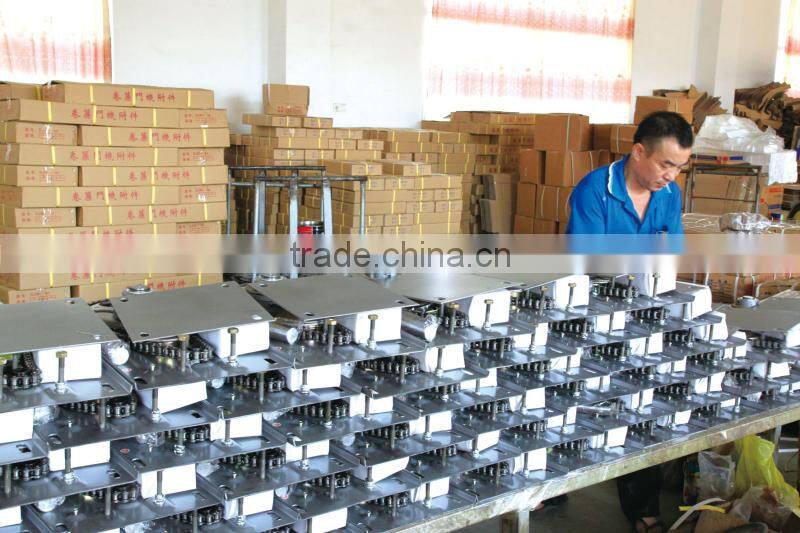

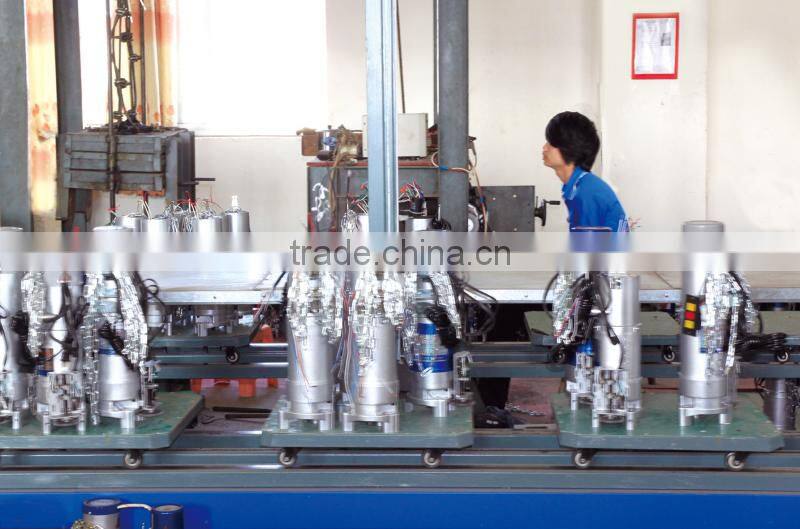

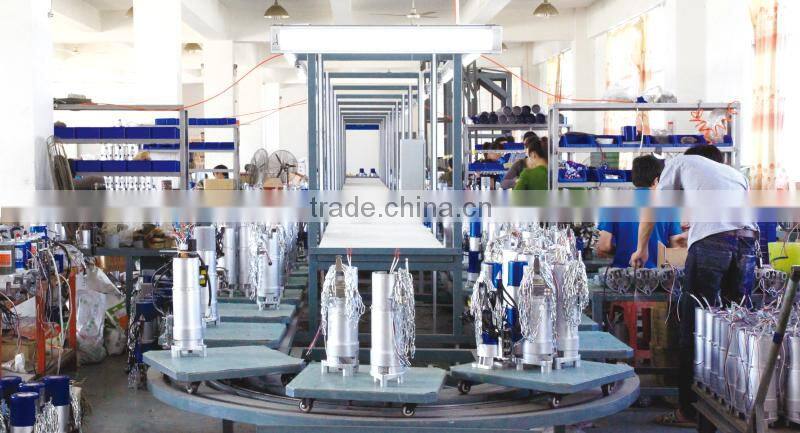

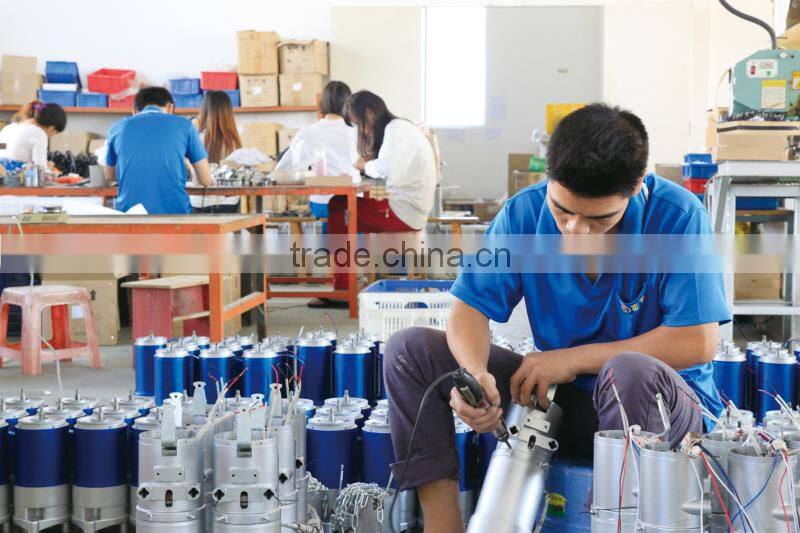

Working line

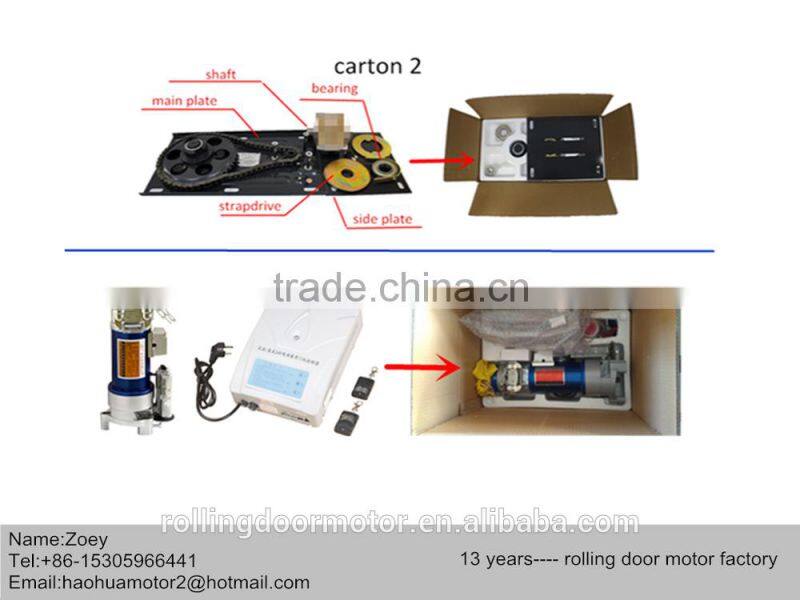

1.PACKAGING
- Way 1
| Carton1 | rolling door motor |
| Carton2 | bracket and accessories |
| Carton3 | remote control |
- Way2
| Carton1 | rolling door motor with remote control |
| Carton2 | bracket and accessories |

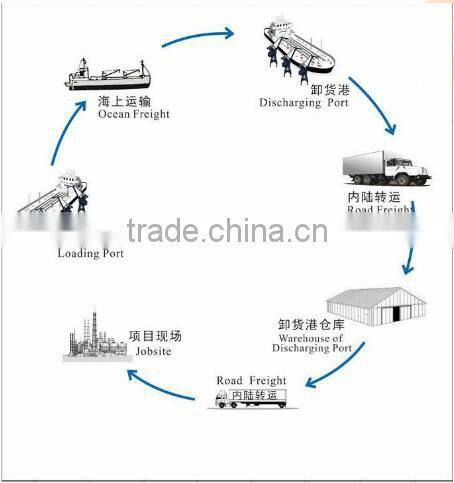

2.SHIPPING
ZHANGZHOU HAOHUA ELECTRICAL CO., LTD.,established in 2003,is a professional manufacturer engaged in the research,development,production,sale and service of AC ROLLING DOOR MOTOR,AC&DC ROLLING DOOR MOTOR,FIREPROOF ROLLING DOOR MOTOR,TUBULAR MOTOR,SHUTTER FORMING MACHINE.We are located in ZHANGZHOU CITY,FUJIAN PROVINCE with convenient transportation access.Dedicated to strict quality control and thoughtful customer service,our experienced staff members are always available to discuss your requirements and ensure full customer satifaction.In recent years,our company has introduced a series of advanced equipment including Multi-function generator,test instrument,aging equipment.In addition,we have obtainedISO9001:2008,CE,CCC certificates.Selling well in all cities and provinces around China,our products are also exported to clients in such countries and regions as Middle East,South America,South Africa,Southeast Asia,East Asia.
We also welcome OEM and ODM orders.Whether selecting a current product from our catalog or seeking engineering assistance for your application,you can talk to our customer service center about your sourcing requirements.We warmly welcome customers from at home and aboroad to estabilsh cooperation and create a bright future with us together.
- ZHANGZHOU HAOHUA ELECTRICAL CO., LTD.
- SHOWROOM
- EXHIBITION
| CERTIFICATIONS | CE,ISO9001:2008 |
| OEM,ODM | YES |
| WARRANTY | 1 YEAR |
| AC MOTOR INCLUDE | MOTOR,MANUAL BUTTON,LOCK BOX,BRACKET SYSTEM |
| AC MOTOR OPTIONAL | REMOTE CONTROL SYSTEM FOR DIFFERENT FUNCTION |
| AC&DC MOTOR INCLUDE | MOTOR,CONTROLLER SYSTEM,BACKUP BATTERY, BRACKET SYSTEM |
| AC&DC MOTOR OPTIONAL | MANUAL BUTTON,LOCK BOX, INFRARED SENSOR, ALARM SYSTEM. |
| AC&DC MOTOR LOAD CAPACITY |
600 SETS AC ROLLING DOOR MOTOR FOR ONE 20GP CONTAINER. 540 SETS DC ROLLING DOOR MOTOR FOR ONE 20GP CONTAINER. |
| MOTOR PACKAGE |
1.TWO CARTONS, ONE FOR MOTOR AND REMORE, ONE FOR BRACKET 2.THREE CARTONS,ONE FOR MOTOR,ONE FOR REMOTE AND THE OTHER FOR BRACKET. |
| Problem | Analysis | Solution |
| No stop after up or down in place |
|
|
| Up only or down only |
|
|
| No reaction with any operation |
|
|
| No reaction but has sound |
|
|
| Remote control doesn't work |
|
|
Why choose us?
- We specilized in producing rolling door motors for more than 13 years,our company is not a trading company, we are a factory,we producing the rolling door motors by ourselves.Our factory has nearly 100 workers ,we produce the brackets by ourselves,wo we can reduce the dilivery time.Every products we make,we all need to test,so as to know how is the rolling door motor works.So we have confidence that the rolling shutter doors we produce all can satify your need .
- Haosheng rolling door motors now have been exported to more than15 countries, we have enough experience in international trading maket, so we can make the order you give be more safe and satisfy your need well.
- Fast Delivery Time
- All products we produced all with ISO &CE standard.
- Our company is vice chairman of door association.
Welcome to receive your inquiry,we will try our best to solve your problem.Thank you~~
