Specifications
1.100% copper material2.Low noise,long cycle life
3.High power and fast
4.Warranty:1 year
5.Easy to assemble protect
ITEM NO. |
JMJ412/4.2-DC-(600Kg) |
||||
|
Main specifications and technical parameter 1.Environment air temperature changed according to the season 2.Relative humidity is less than 90% 3.Short-term operated, can not continuous operation for more than 10 minutes | |||||
Type |
Adaptable Voltage |
Rated Power (W) |
Rate Load |
||
|
Lifting Force (kg) |
Output Torque (N.m) |
Output Rotate Speed (r/min) |
|||
JMJ168/3.7-DC-1 (300Kg) |
AC 220V±10%/50Hz |
150 |
300 |
168 |
3.7 |
JMJ168/4.9-DC-(300Kg) |
AC 220V±10%/50Hz |
200 |
300 |
168 |
4.9 |
JMJ168/4.6-DC-(500Kg) |
AC 220V±10%/50Hz |
240 |
500 |
345 |
4.6 |
JMJ412/4.2-DC-(600Kg) |
AC 220V±10%/50Hz |
240 |
600 |
412 |
4.2 |
JMJ650/3.9-DC-(800Kg) |
AC 220V±10%/50Hz |
380 |
800 |
650 |
3.9 |
1.Light and Handy ,supertos quality
All of the components are well-design,quality of which are under strctly control. And the motor
case are pressure- cast with high strength aluminum alloy,with good-look appearance. The surface
is electrostatic sprayed by powder and baking finished so that it may not easy to fade or get rusty.
2.low noise,long cycle life
Reduction gear is made in high class cuprum alloy proceeding by precision gear and heat tr-
eatment low nose, The solenoid brake components are made of brake material of the advance car
so that the cycle life is very long.
3.High power and fast
The rolling door motor is optimum-designed,all components of which are made in superior mater-
ials, and is powerful, fast rolling ,time-saving and energy-saving .
4.Power failure
When the power is failure, pulling the chain by hand may lift the door up,and pu;;ing the clutch lever
may let the door down.
5.Easily operating , safety and security

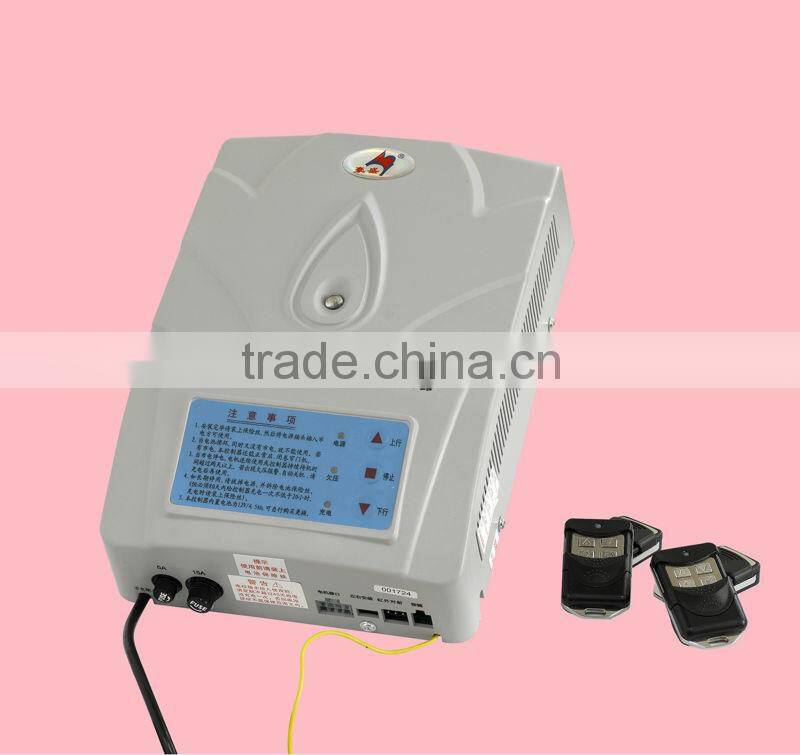

There are several ways of controlling ,by using remote controller,hand control,and pulling chain by
hand when power is failure. And to keep from breaking in,you could also lock the hand controlling by
remote controller.
6.Easy to assemble and protect
7.AC&DC motor is our company's best-selling products,it can
use when AC power is off.
♦DC motor with low voltage and strong power .It have high efficiency,low noise,long life.
♦Adopt the machine limit devices,simple adjusting and sensitive location controller boken.
♦Adopt currency power in regular state. Auto turn to battery supply while the power
broken.
♦Reserve power supply on the market used batteries for universal product (4.5Ah/safe
voltage:24V
♦DC operation, in the case with no electricity,AC and DC drive door running, no load
less than 40 times
♦DC operation, in the case with no electricity,AC and DC drive door running, no load
less than 40 times
