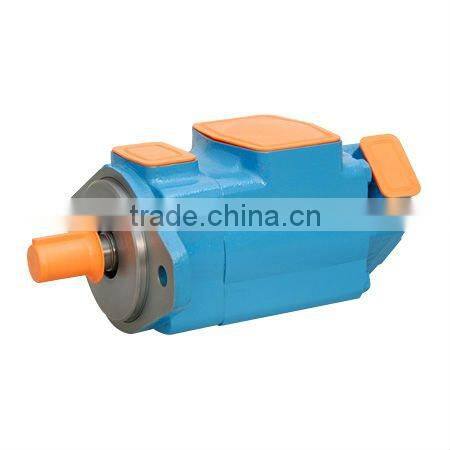

Help CenterVQ SERIES VICKERS VANE PUMP CARTRIGDE KITS
Related Products
Specifications
VQ vickers vane pump cartridge kits1.replace Vickers V seires cartridge kits
2.high pressure and low noies
VQ vickers vane pump cartridge kits
it's the original design of the vickers vane pump , four series : 20VQ/25VQ/35VQ/45VQ
Model Code
(F3-) |
XC- |
25V(Q) |
-5 |
-R |
Refit |
cartridge kits mark |
Series |
Geometric displacement |
Rotation |
F3-Viton seals Omit-if not required |
XC-single pump cartridge kits Double pump shaft end pump cartridge kits |
20V(Q) |
2,3,4,5,6,7,8,9,10,11,12,14 |
Viewed form shaft end |
25V(Q) |
10,12,14,17,19,21 |
|||
35V(Q) |
21,25,30,35,38 |
|||
45V(Q) |
42,45,50,57,60,66,75 |
Shape Dimensions
Series |
A |
B |
C |
D |
E |
F |
G |
H |
K |
Gasket |
O-Ring |
20V(Q) |
82.5 |
81.5 |
70.1 |
47 |
61.5 |
4.8 |
76.2 |
7 |
73.6 |
82.76×76.26×3.5 |
40×3.5 |
25V(Q) |
96.8 |
98.8 |
87 |
52.2 |
71.2 |
4.8 |
90.5 |
7 |
88.19 |
97×91×3.5 |
44×3.53 |
35V(Q) |
114.3 |
117.7 |
105 |
72.2 |
90.3 |
6.4 |
108 |
7 |
103.94 |
114.5×108.5×3.5 |
63.09×3.53 |
45V(Q) |
133.35 |
141.1 |
129.6 |
80.2 |
105.5 |
6.4 |
127 |
5 |
123.8 |
133.6×127.6×3.5 |
71×3.55 |
Series |
Inner spline dentiform parameter of rotor |
||||
Modulus |
Number of teech |
Pressure angle |
Major diameter |
Minor diameter |
|
20V(Q) |
48/96 |
30 |
45° |
16.67 |
15.56 |
25V(Q) |
48/96 |
40 |
45° |
21.9 |
20.86 |
35V(Q) |
40/80 |
37 |
45° |
24.38 |
23.1 |
45V(Q) |
12/24 |
14 |
30° |
32.59 |
27.60 |
