101S-5T Tractor Parts -steering Hydrostatic

101S-5T Tractor Parts -steering Hydrostatic thumbnail-1
101S-5T Tractor Parts -steering Hydrostatic photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TPF
Model Number:
101S-5T
Contact Supplier Request Quote Chat Now
Danyang Titan Power Fluid Component Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name TPF
Model Number 101S-5T

Specifications

1. Used in the load sensing steering system
2. Pipe mounting with PVF Priority valve
3. Including integintegrated valve

101S-5T Series Loading Sensing Hydraulic Steering Control Units



  The same function with the 101 series ,include integrated valve ,made it more compact and take each turn quickly and easily for tractors .

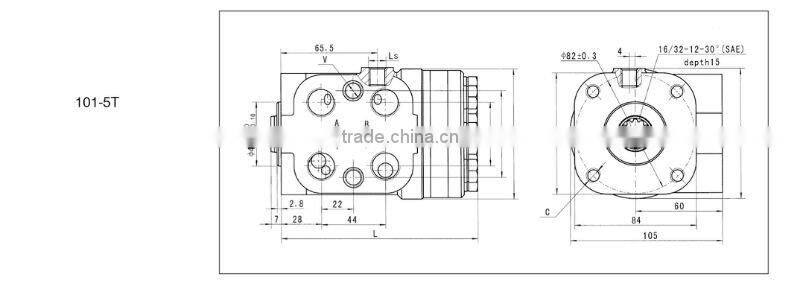

101S-5T tractor parts -steering hydrostatic

Parameters

Series

101S-5(T/TE/L/E)-***-**-*

Displacement (mL/r)

50

63

80

100

125

160

200

250

280

315

400

Rated Flow (L/min)

5

6

8

10

12.5

16

20

25

28

32

40

Max. input speed(rpm)

100

75

Max.input pressure(Mpa)

16

Relief Valve Pressure Settings   ( MPa)

06,07,08,10,12,14,15,16

Shock Valve Pressure Settings    ( MPa)

12,13,14,16,18,20,21,22

Weight(kg)

5.75

5.81

5.89

5.96

6.1

6.3

6.5

6.73

6.91

7.1

7.5

Dimension  L  (mm)

130

132

134

137

140

145

150

156

161

166

176























101S

5

-



-



-



-



-





Pos.

1

2

3

4

5

6

Code

Function code

Priority valve connection

Electrohydraulic control signal connection

Displacement

Integrated valve pressure setting

  Port connection


101S


5
Load sensing type

Omit
  T


Modulary mounting
Pipe mounting


  Omit
  L
  E

No electrohydraulic signal
The signal at LS
The signal at the port A or B

50
63
80
100
125
160
200
250
280
315
400

06
07
080
10
12
14
15
16

A
B
C
D
E
U
M
F
I
N
W
H
