109 Series Hydraulic Steering Valve
US$ 60 - 80
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Type:
Hydraulic Power Units
Model Number:
109
Brand Name:
tpf
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FZ Series Hydraulic Steering ColumnUS$ 20 - 35MOQ: 1 Piece -
China Made Tractor Power Steering/ Hydraulic Steering ColumnUS$ 20 - 35MOQ: 1 Piece
-
Eaton Steering Column for Series 12 Control Unit, 204-1004-007US$ 20 - 35MOQ: 1 Piece
-
FZ Series Which Replace Eaton Char-Lynn Hydraulic Orbitrol Steering ColumnUS$ 20 - 35MOQ: 1 Piece
-
BNF Series Which Replace Eaton Char-Lynn 207-1015-001Hydraulic Torque Generator Power Steering ValveUS$ 100 - 130MOQ: 10 Pieces
Type
Hydraulic Power Units
Model Number
109
Brand Name
tpf

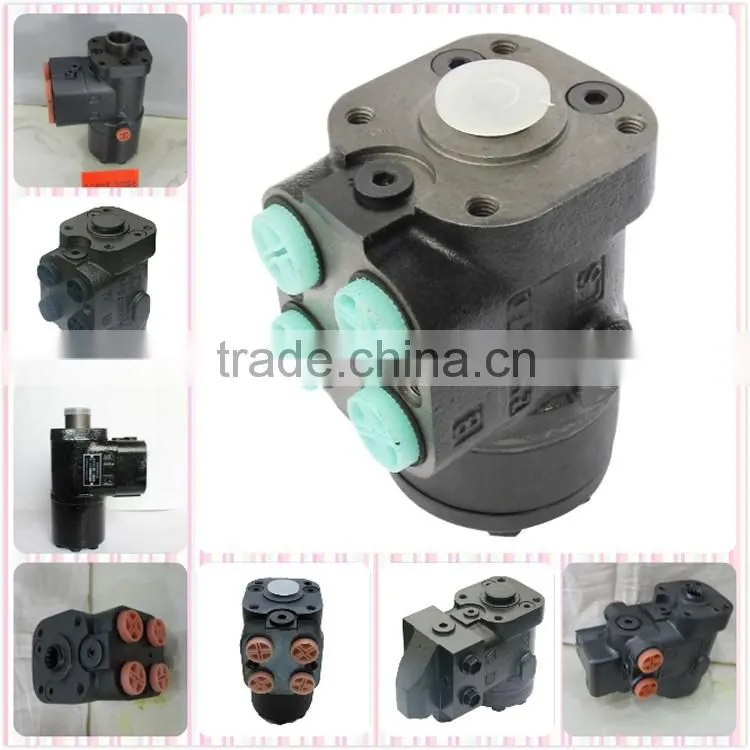

109 series hydraulic steering valve
Series 109*-1 hydraulic steering unit is the integrated orbital steering unit . This kind of steering can have check valve, relief valve and shock valve, the structure is small and exquisite. This kind of steering unit is widely used in mini vehicles, such as mini forklift, mini tractor( and other agricultural machinery),mini earthmoving machinery, mini municipal vehicle, etc.
Parameters | Series 109*-1-**-**-* | |||||
Displacement (mL/r) | 20 | 32 | 40 | 50 | 63 | 80 |
Rated Flow (L/min) | 3~20 | |||||
Rated Pressure ( MPa) | 12.5 | |||||
Relief Valve Pressure Settings ( MPa) | 06,07,08,09 | |||||
Shock Valve Pressure Settings ( MPa) | 12,13,14,15 | |||||
Steering Torque (N ·m) | ≤1.6 | |||||
Max.Cont.Pressure in Line T-PT (MPa) | 1 | |||||
Dimension L (mm) | 87 | 92 | 96 | 100 | 105 | 112.5 |
