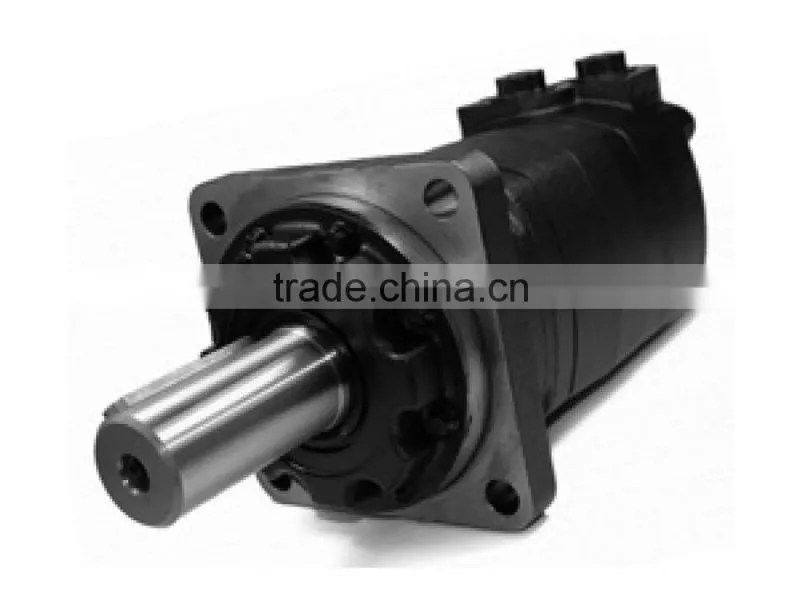

BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor

BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor thumbnail-1
BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor thumbnail-2
BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor thumbnail-3
BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor thumbnail-4
BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor thumbnail-5
BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor thumbnail-6
BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor photo-1

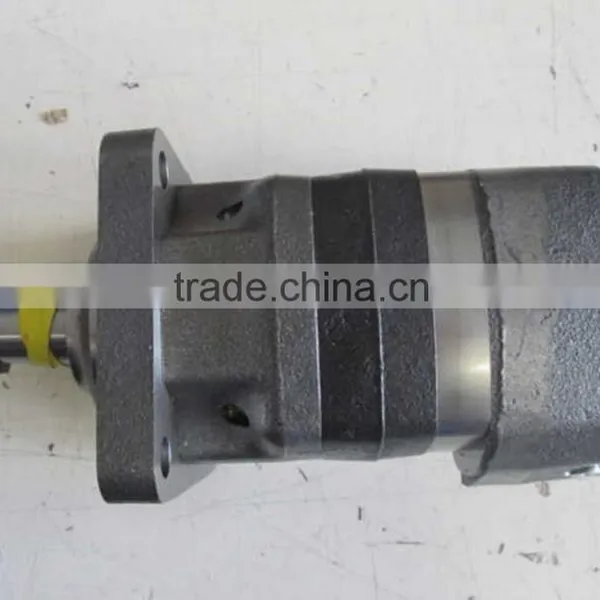

BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor photo-2

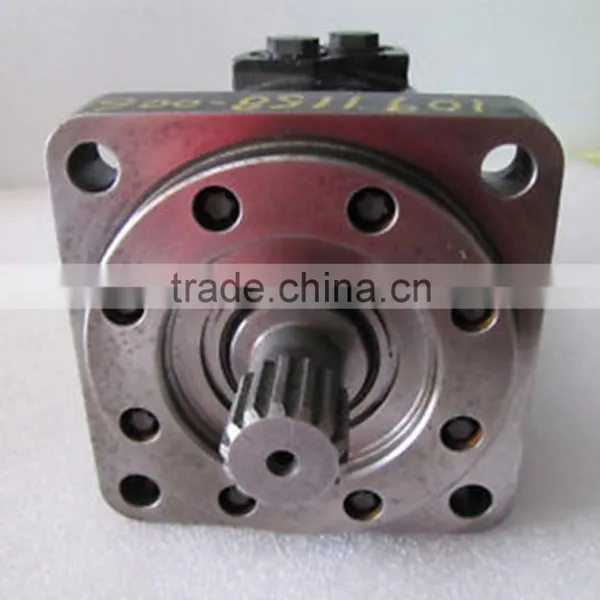

BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor photo-3
BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor photo-4

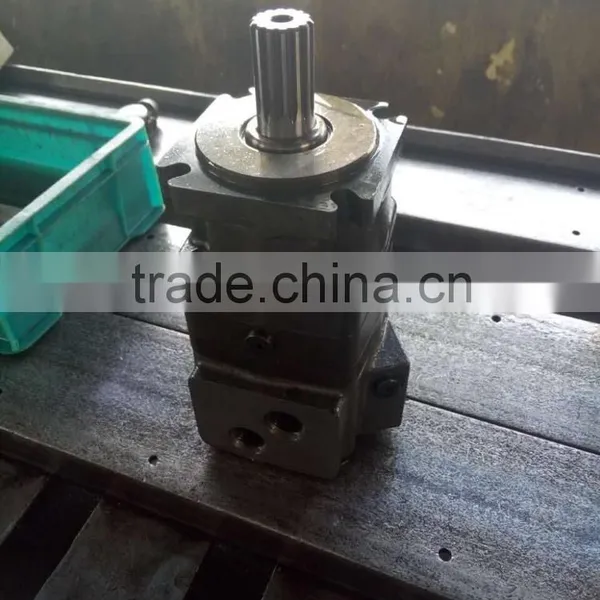

BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor photo-5

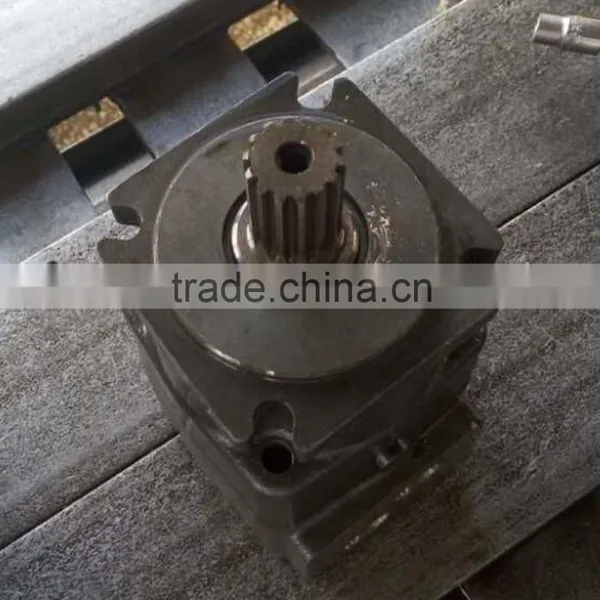

BMTE /Eaton 4000 Series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx High Pressure Orbit Hydrualic Motor photo-6
US$ 130 - 200 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Hydraulic Motors
Model Number:
BMTE
Brand Name:
tpf
Contact Supplier Request Quote Chat Now
Danyang Titan Power Fluid Component Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hydraulic Motors
Model Number BMTE
Brand Name tpf
Place of Origin Jiangsu, China

 BMTE /Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motor




  The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, provide smooth and reliable operation and high efficiency,it’s higher bearing capacity than BMS series  .

One type of LSHT motor,which can replace Danfoss OMT series ,M+S MT series ,Eaton 4000/6000 series etc.



BMTE /Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motor





Type BMTE
160		 BMTE
200		 BMTE
230		 BMTE
  250		 BMTE
315		 BMTE
400		 BMTE
500		 BMTE
630		 BMTE
800
displacement (cm3/rev. ) 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed
(rpm)		 cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque      (N• m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output      (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
ure drop (MPa) cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow          (L/min)



 rated 80 100 100 100 100 100 100 100 100
cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet
pressure (Mpa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight      (kg) 19.5 20 20.4 20.5 21 22 23 24 25











BMTE /Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motor

BMTE /Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motorBMTE /Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motor



BMTE /Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motorBMTE /Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motor







Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial
forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in
operating with high volume efficiency and long life, provide smooth and reliable operation
