BMPH-H4 Series Hydraulic Char-lynn Motor

BMPH-H4 Series Hydraulic Char-lynn Motor thumbnail-1
BMPH-H4 Series Hydraulic Char-lynn Motor thumbnail-2
BMPH-H4 Series Hydraulic Char-lynn Motor thumbnail-3
BMPH-H4 Series Hydraulic Char-lynn Motor thumbnail-4
BMPH-H4 Series Hydraulic Char-lynn Motor thumbnail-5

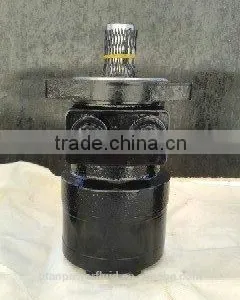

BMPH-H4 Series Hydraulic Char-lynn Motor thumbnail-6
BMPH-H4 Series Hydraulic Char-lynn Motor photo-1

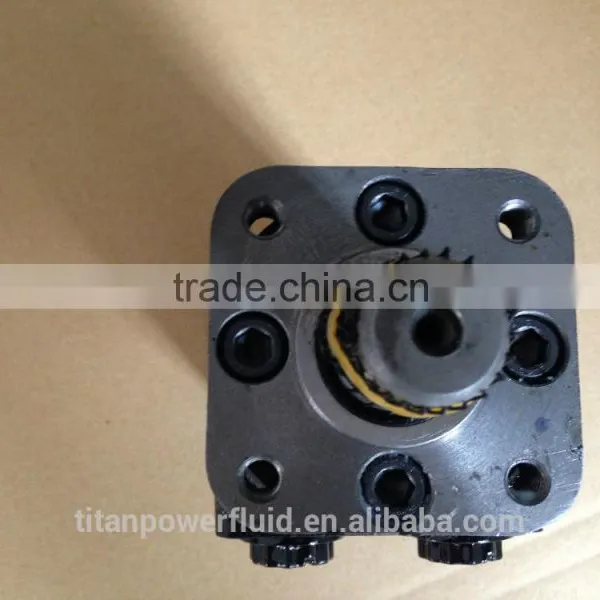

BMPH-H4 Series Hydraulic Char-lynn Motor photo-2

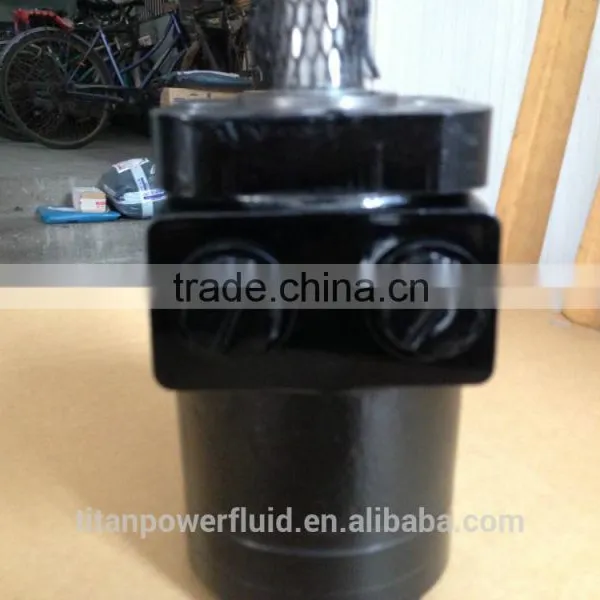

BMPH-H4 Series Hydraulic Char-lynn Motor photo-3

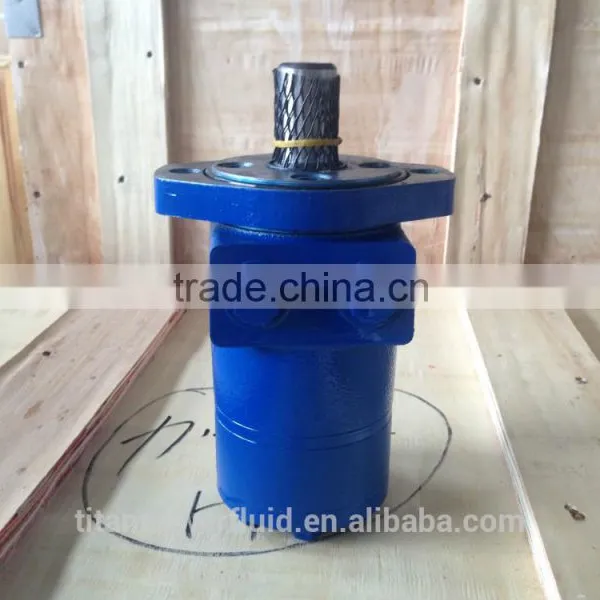

BMPH-H4 Series Hydraulic Char-lynn Motor photo-4

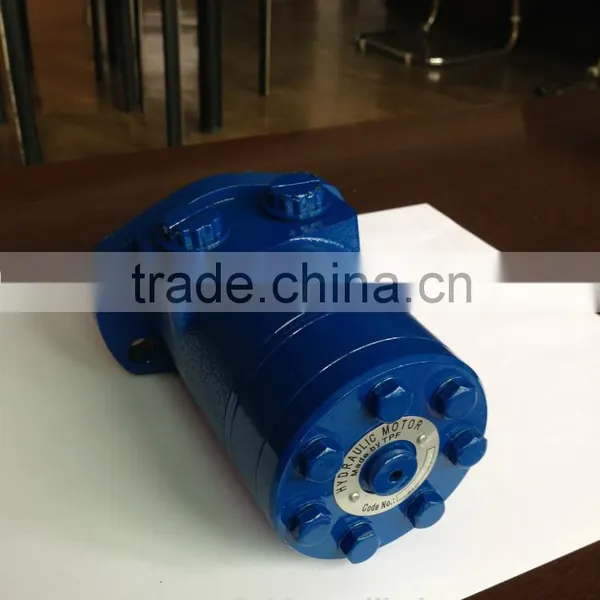

BMPH-H4 Series Hydraulic Char-lynn Motor photo-5

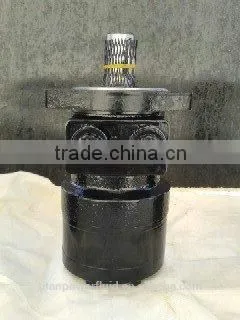

BMPH-H4 Series Hydraulic Char-lynn Motor photo-6
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Hydraulic Motors
Model Number:
BMPH
Brand Name:
TPF
Contact Supplier Request Quote Chat Now
Danyang Titan Power Fluid Component Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hydraulic Motors
Model Number BMPH
Brand Name TPF
Place of Origin Jiangsu, China

BMPH-H4 series hydralic motor :

     One type of LSHT motor, which can replace Charlynn motors . The difference of the bmp is the mounting of the port ,The BMP port is “S” type ,the BMPH is ”H” type .

 BMPH-H4 series hydraulic Char-lynn motor



Type BMPH BMPH BMPH BMPH BMPH BMPH BMPH BMPH BMPH BMPH BMPH
36 50 80 100 125 160 200 250 315 400 500
Displacement 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed   (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque     (N•m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output     (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
ure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
prak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
 Max. flow      (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight(kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 6.6 6.9 7.4 8





Specifications: Applications:
- Model - Spool valve, roll-gerotor; Agricultural augers, harvesters, seeders
- Flange –Rhomb and Square flange; Car wash brushes
- Motor with needle bearing; Food processing
- Shafts - straight, splined and tapered; Railroad maintenance equipment
- Shaft seal for high and low pressure; Industrial sweepers and floor polishers
- Three ports - Metric /UNC and BSPP; Turf equipment
- Color-Blue, grey ,black ,yellow ; Concrete and asphalt equipment
- motors with integrated bake :BK2 series Skid steer attachments



 BMPH-H4 series hydraulic Char-lynn motorBMPH-H4 series hydraulic Char-lynn motorBMPH-H4 series hydraulic Char-lynn motorBMPH-H4 series hydraulic Char-lynn motorBMPH-H4 series hydraulic Char-lynn motorBMPH-H4 series hydraulic Char-lynn motor









How to order



Pos.1

2

3

4

5

6

7

8



Code



Disp.



Flange



Output Shaft



Port and Drain Port



Rotation Direction



Paint



Unusually Function



















BMPH









36

50

80

100

125

160

200

250

315

400









H2



H6



H4



H5









2-Ø13.5 Rhomb-flange , pilot Ø82.5×2.8

4-Ø13.5 Rhomb-flange , pilot Ø82.5×2.8

4-3/8-16 Square-flange , pilot Ø44.4×2.8

4-M10 Square-flange , pilot Ø44.4×2.8



K



S A R



H H1

D I T2

P J

Shaft Ø25.4, woodruff key

Ø25.4×6.35

Shaft Ø25.4 , splined tooth SEA 6B Shaft Ø25 , parllel key 8×7×32

Shaft Ø25.4, parllel key

6.35×6.35×31.75

Shaft Ø25.4 , pin hole Ø10.3

Shaft Ø25.4 , pin hole Ø8

Shaft Ø22.22, parllel key

6.35×6.35×25.4

Shaft Ø22.22, splined tooth

13-DP16/32

Cone shaft Ø25.4 , woodruff key

Ø25.4×6.35

Shaft Ø25 , parllel key 8×7×28

Shaft Ø25 , parllel key 7×7×32









G S P T R

B4



B5









G1/2, G1/4

7/8-14 O-ring ,7/16-20UNF

1/2-14 NPTF, 7/16-20UNF

3/4-16 O-ring, 7/16-20UNF PT(Rc)1/2 ,PT(Rc)1/4

Ø10 O-ring manifold

4x5/16-18UNC,7/16-20UNF Ø10 O-ring manifold 4xM8,

7/16-20UNF

















Omit

R

















Standard

Opposite















00

Omit

B S















No paint Blue Black

Silver grey















Omit

N

0

F LS















Standard

Big radial force No case drain Free Running Low Speed



 BMPH-H4 series hydraulic Char-lynn motor
