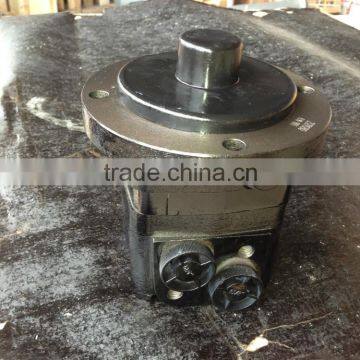

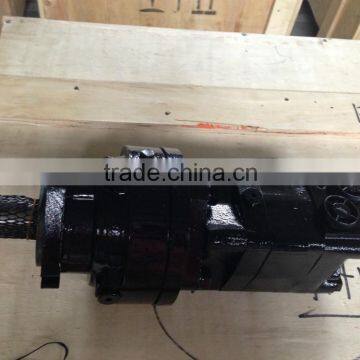

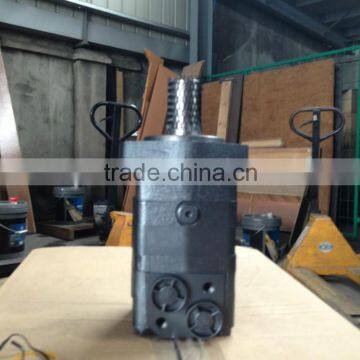

OMS series hydraulic motor which replace danfoss hydraulic motor
The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, provide smooth and reliable operation and high efficiency . we can produce many typs hydraulic motor which replace danfoss hydraulic motor
DANFOSS |
CHAR-LYNN –EATON CODE |
M+S |
BMM series like OMM series |
BMPH series like H (101)series |
BMM series like MM/MLHM series |
BMP series like OMP series |
BMRS series like R (103)series |
BMP series like MP/MLHP series |
BMR series like OMR series |
BMSE series like 2k (104)series |
BMR series like MR/MLHR series |
BMS series like OMS series |
BMTE series like 4k(109) series |
BMS series like MS/MLHS series |
BMT series like OMT series |
BMTE series like 6K(112) series |
BMT series like MT/MLHT series |
BMV series like OMV series |
BMVE series like10K(119) series |
BMV series like EMV/MLHV series |
| Type | BMS | BMS | BMS | BMS | BMS | BMS | BMS | BMS | |
| 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 | ||
| Displacement (cm3/rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N•m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| ure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max.inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
| Options | Application: | |
| - Model - Disc valve, roll-gerotor; | • Skid-steer attachments | |
| - Flange and wheel mount; | • Swing motors | |
| - Shafts - straight, splined and tapered; | • Brush cutters & Mowers | |
| - Metric/UNC and BSPP ports; | • Harvesting equipment | |
| -Side and rear ports | • Directional boring | |
| - Motor with BK2 Brake; | • Winch | |
| -Motor with Drum Brake | • Auger | |
| - Color-Blue, grey ,black ,yellow ; |
