TE-H4 Series Parker Hydraulic Motor
US$ 88 - 90
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Hydraulic Motors
Model Number:
BME2-H4
Brand Name:
tpf
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OMT Series Replace Danfoss MotorNegotiableMOQ: 5 Pieces -
M+S MM Series Hydraulic MotorNegotiableMOQ: 20 Pieces
-
Supply Replacement of Sauer Sundstrand PV23 Hydraulic Charge PumpUS$ 60 - 120MOQ: 20 Pieces
-
Export Hdraulic Charge Pump Eaton 5423 /5421 /6423/6421 Charge PumpUS$ 60 - 120MOQ: 20 Pieces
-
Hydraulic Slippage Pump for Sauer Pv23US$ 60 - 120MOQ: 20 Pieces
Type
Hydraulic Motors
Model Number
BME2-H4
Brand Name
tpf
Place of Origin
Jiangsu, China

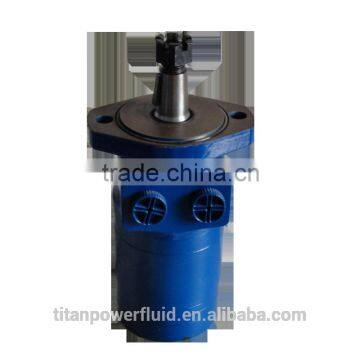

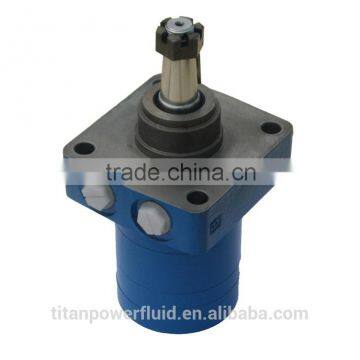

TE-H4 series parker hydraulic motor
One type of LSHT wheel motor, which is equal to Parker TE/TG/TF series hydraulic motors .
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
|
Max. torque (N•m) |
rated | 110 | 136 | 165 | 214 | 265 | 312 | 318 | 329 | 348 | 364 | 372 |
| cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 | |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| ure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | 75 | |

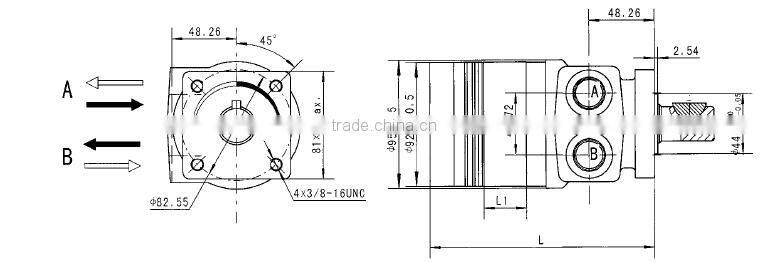

4 BOLT W 3/8-16UNC
