TJ series parker hydraulic motor
Negotiable
/ Piece
20 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- SHANGHAI
- T/T
You May Like
-
website:littlebee730526 WA380 hydraulic gear pump parts hydraulic pump
-
Yuken PV2R of PV2R1 PV2R2 PV2R3 PV2R4 single hydraulic vane pump
-
High pressure fixed displacement vane pumps PV2R
-
2015 new product high quality PV2R series vane pump
-
Yuken hydraulic vane pump PV2R series sing pump
-
yuken pv2r hydraulic vane pump for plastic chair making machine
Product Details
| Type: | Hydraulic Motors | Model Number: | BMJ | Brand Name: | tpf |
| Place of Origin: | Jiangsu, China |
Product Description

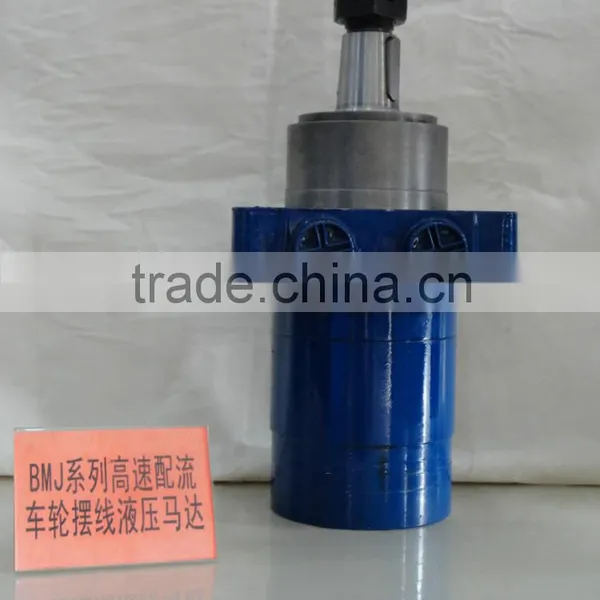

TJ series parker hydraulic motor
One type of LSHT wheel motor, which is equal to Parker series motors .

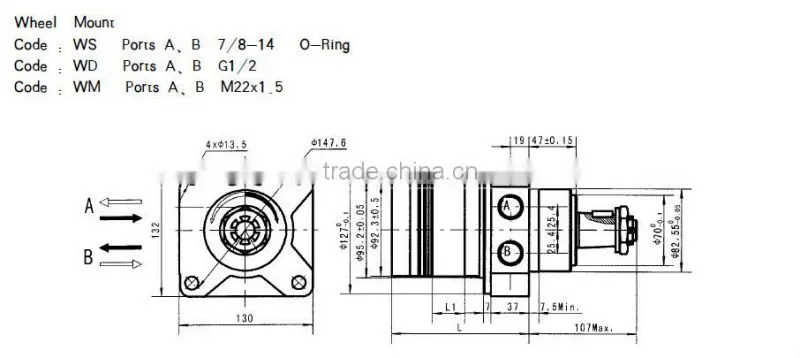

W mounting flange is located near the center of the motor which permits part or all of the motor to be located inside the wheel or roller hub. This wheel motor mounting flange provides design flexibility in many applications.
| Type | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N• m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| ure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
