BMS series replace to sauer danfoss hydraulic orbit motor

FOB Price

USD $95 - $145 / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHANGHAI
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Hydraulic Motors	Model Number:	bms	Brand Name:	tpf
Place of Origin:	Jiangsu, China

Product Description

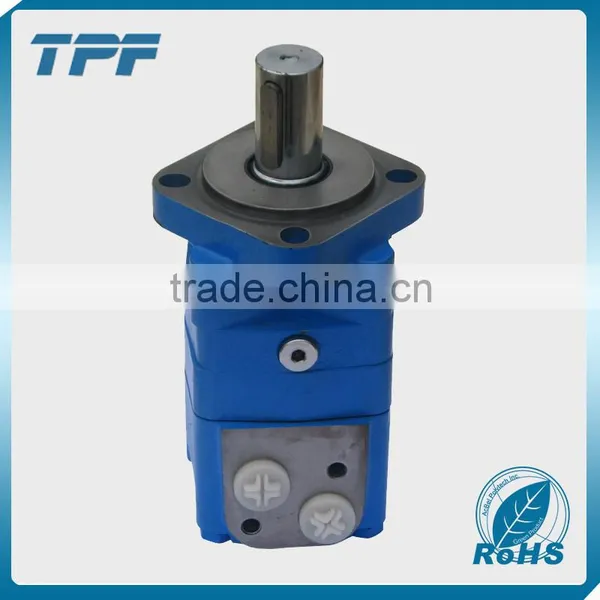

BMS series replace to sauer danfoss hydraulic orbit motor

The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, provide smooth and reliable operation and high efficiency

Type		BMS	BMS	BMS	BMS	BMS	BMS	BMS	BMS
Type		80	100	125	160	200	250	315	375
Displacement (cm3/rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N•m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
ure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max.inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max.inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

Options		Application:
- Model - Disc valve, roll-gerotor;		• Skid-steer attachments
- Flange and wheel mount;		• Swing motors
- Shafts - straight, splined and tapered;		• Brush cutters & Mowers
- Metric/UNC and BSPP ports;		• Harvesting equipment
-Side and rear ports		• Directional boring
- Motor with BK2 Brake;		• Winch
-Motor with Drum Brake		• Auger
- Color-Blue, grey ,black ,yellow ;
