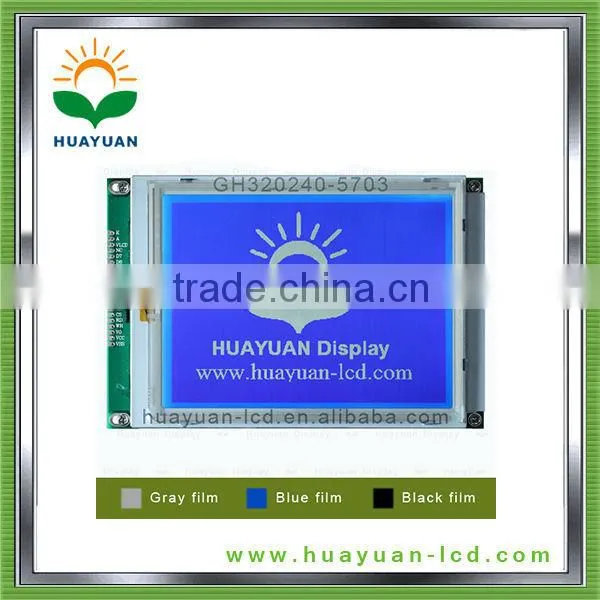

STN 320x240 lcd display module NT7701
- 100000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- 320240 stn tab fpc lcd module
- 3.0 inch 128x64 lcd display module KS0107
- 240x128 t6963c graphics lcd module,graphics lcd 240X128 t6963c
- high resolution 5.1 inch cob/stn lcd module
- 128x240 pixels graphics lcd module with T6963 or Equicalent controller IC
- Dot Matrix 128x240 T6963 COB LCD Module Display unit
Product Details
Place of Origin: | Hunan, China | Brand Name: | Huayuan | Model Number: | GH320240-5703 |
Type: | TAB |
Packaging Details
in an anti-statics bag packed in carton or according to the customer's requirement
Product Description
Specifications
STN 320x240 lcd display module NT7701Rohs compliance available
OEM Product Design /Production
customized product acceptable
The module datasheet
STN 320x240 lcd display module NT7701
Model: | GH320240-5702 |
Construction | TAB |
Display Type | STN,Negative,Transmissive |
Operating Voltage (VDD) | 5V |
Backlight Voltage(VBL) | 5V |
Operating Temperature (degree Celsius) | -20~70 |
Storage Temperature (degree Celsius) | -30~80 |
Viewing Direction | 06:00 |
Dot Matrix | 320*240 |
Viewing Area | 121.00*91.60 |
Active Area | 115.17*86.37 |
Outline Dimension | 165.55*109.00*6.80 |
Controller | NT7701 |
Backlight | CCFL,LED,White |
The Layout Drawing
