Home > Consumer Electronics > Display & Accessories > LCD Module > 3.0 Inch 128x64 Lcd Display Module KS0107

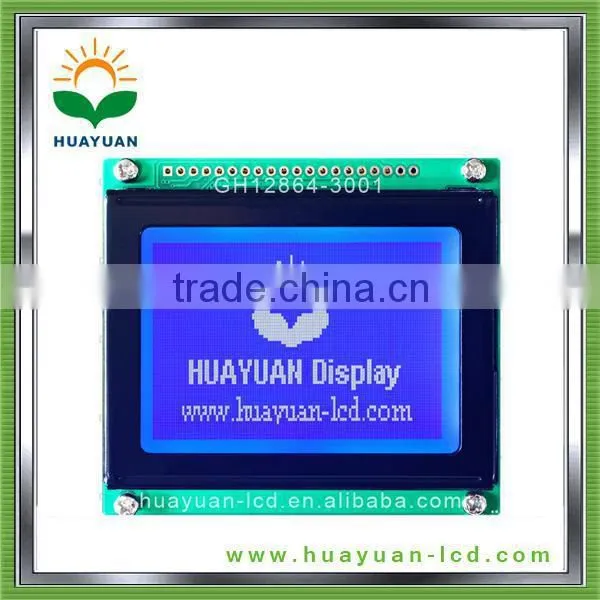

3.0 Inch 128x64 Lcd Display Module KS0107
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Huayuan
Model Number:
GH12864-3001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
240x128 T6963c Graphics Lcd Module,graphics Lcd 240X128 T6963cUS$ 1 - 30MOQ: 100 Pieces -
High Resolution 5.1 Inch Cob/stn Lcd ModuleUS$ 1 - 30MOQ: 100 Pieces
-
128x240 Pixels Graphics Lcd Module With T6963 or Equicalent Controller ICUS$ 1 - 30MOQ: 100 Pieces
-
Dot Matrix 128x240 T6963 COB LCD Module Display UnitUS$ 1 - 30MOQ: 100 Pieces
-
5V 240X128 Graphic LCD Module With Blue BacklightUS$ 1 - 30MOQ: 100 Pieces
Place of Origin
Hunan, China
Brand Name
Huayuan
Model Number
GH12864-3001
Type
COB
Specifications
3.0 inch 128x64 graphic lcd display modulecustomized product acceptable
Rohs compliance available
OEM Product Design / Prod
The module datasheet
3.0 inch 128x64 lcd display module KS0107
| Model: | GH12864-3001 |
| Construction | COB |
| Display Type | STN,Negative or Positive ,Transmissive |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20~70 |
| Storage Temperature (degree Celsius) | -30~80 |
| Viewing Direction | 06:00 |
| Dot Matrix | 128*64 |
| Viewing Area | 62.00*44.00 |
| Active Area | 56.27*38.35 |
| Outline Dimension | 78.00*70.00*12.50 |
| Controller | KS0107 |
| Backlight | LED,Y-G,White |
The Layout Drawing
The Pin Definition
| GH12864-3001 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| CS2# | CS1# | VSS | VDD | V0 | RS | R/W | E | D0 | D1 | |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | |
| D2 | D3 | D4 | D5 | D6 | D7 | RST# | VEE | LED+ | LED- |
