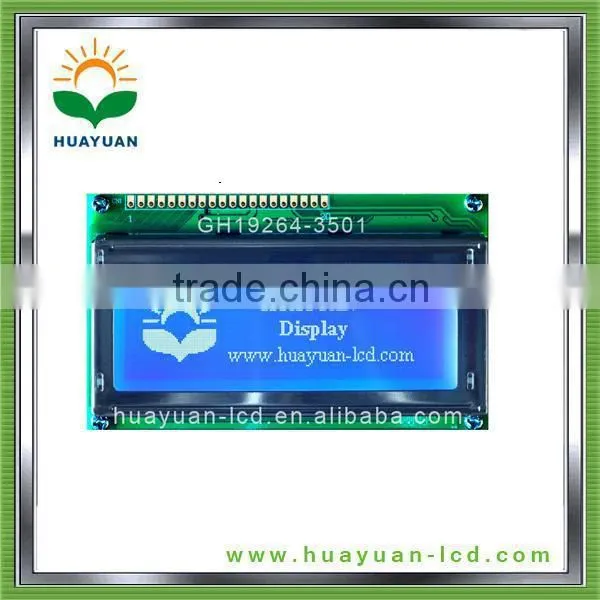

cob/stn 192*64 dots matrix 3.5inch cob LCD Module(GH19264-3501)
- 100 Piece / Pieces per Month
- Shenzhen Airport
- T/T
Product Details
Place of Origin: | Hunan, China | Brand Name: | Huayuan | Model Number: | GH19264-3501 |
Type: | COB |
Packaging Details
Standard package and we can have a negotiation if you have special package
Product Description
Specifications
1. cob/stn 192*64 dots matrix 3.5inch cob LCD Module2.Rohs and ISO 9001:2008 Certification
3.OEM,ODM can accept
Basic Parameter
cob/stn 192*64 dots matrix 3.5inch cob LCD Module
Model: | GH19264-3501 |
Construction | COB |
Display Type | STN,Negative or Positive ,Transmissive |
Operating Voltage (VDD) | 3.3V,5V |
Backlight Voltage(VBL) | 3.3V,5V |
Operating Temperature (degree Celsius) | -20 °c ~70 °c |
Storage Temperature (degree Celsius) | -30 °c ~80 °c |
Viewing Direction | 6:00 |
Dot Matrix | 192*64 |
Viewing Area | 84.00*31.00 |
Active Area | 78.67*26.19 |
Outline Dimension | 100.00*60.00*11.20 |
Controller | KS0107 or equivalent controller |
Backlight | LED,Y-G,White |
Outline Drawing
Interface definition describe
Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
interface definition | DB7 | DB6 | DB5 | DB4 | DB3 | DB2 | DB1 | DB0 | E | R/W | RS | V0 | VDD | VSS | CS2 | CS1 | RST# | VEE | A | K |
Product Range
1. TN.STN.FSTN.TFT Panel/Module
2. Customized LCD Panel/Module
3. OEM.ODM are accept
Similar product
Part Number | V.A Size(L*Wmm) | Description | Controller | Outline Dimension |
GH19264-3501 | 84.00*31.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | KS0107 | 100.00*60.00*11.20mm |
GH19264-3502 | 84.00*31.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | KS0107 | 100.00*60.00*11.20mm |
GH19264-3503 | 84.00*31.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | KS0107 | 100.00*60.00*11.20mm |
GH19264-4301 | 104.00*39.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | KS0107 | 130.00*65.00*11.50mm |
GH19264-4302 | 104.00*39.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | NT7086 | 130.00*65.00*11.50mm |
GH19264-4303 | 104.00*39.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | KS0107 | 120.00*64.20*11.50mm |
GH19264-4304 | 104.00*39.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | KS0107 | 130.00*65.00*11.50mm |
GH19264-4305 | 104.00*39.00mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | KS0107 | 130.0*71.80*11.50mm |
GH19264-4310 | 104.00*39.00mm | STN/COB,LED,WHITE/6:00/3.3V,5V | ST7920 | 130.0*71.80*11.50mm |
GH19264-4312 | 95.00*38.00mm | STN/COG,LED,WHITE/6:00/3.3V,5V | ST7565R | 127.30*61.60*10.50mm |
GH19264-4313 | 104.00*39.00mm | STN/COG,6:00/3.3V,5V | UC1698U | 108.00*51.00*8.20mm |
GH19264-4314 | 85.00*32.00mm | STN/COG,6:00/3.3V,5V | ST7565P | 97.50*46.00*8.20mm |
