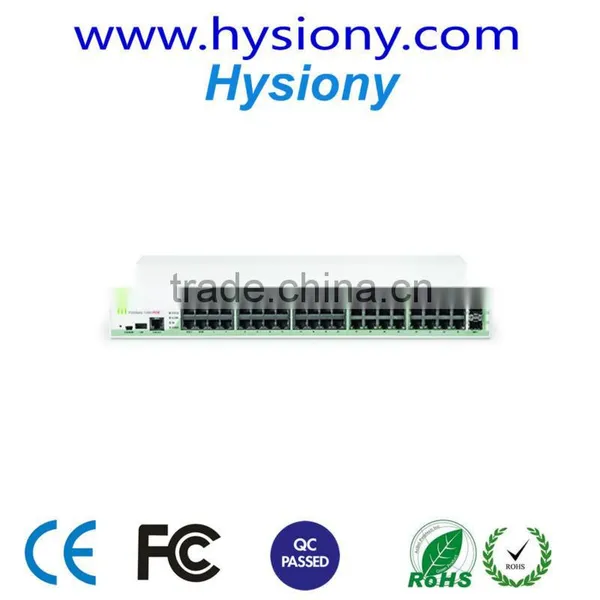

Original New FortiGate-140D-POE-T1 Fortinet Security Appliance FG-140D-POE-T1Fortinet Security Appliance
FortiGate-140D-POE-T1
FG-140D-POE-T1 ...
The FortiGate-100 series of all-in-one Network Security Appliances deliver Fortinet’s Connected UTM solution in a range of appliances to match your unique requirements. With Connected UTM you get a single device that integrates comprehensive enterprise-grade security protection with a broad range of wired and wireless connectivity options.
Connected UTM optimizes your complex network and makes it easier for your IT staff to improve your security, simplify your infrastructure, and lower your TCO. The FortiGate-100 series offers you a wide range of choices:
- Extremely high port density supports your growing network, with up to 42 1-gigabit Ethernet interfaces on the FortiGate-140D models.
- Power over Ethernet (PoE) Support allows you to connect Wireless Access Point, 3G4G Extenders, VoIP Handsets and IP Cameras to your network security platform and away from power supplies.
- The FortiGate Rugged-100C is an industrially hardened security appliance for harsh electrical and environmental conditions, including high levels of electrical and radio-frequency interference and wide ambient temperature ranges.
With simple per-device pricing, you can deploy a high-performance, highly secure remote infrastructure with one appliance that’s easy to set up and centrally manage.
| Models: | 100D | 140D | 140D-POE | 140D-POE-T1 |
| Hardware Specifications | ||||
| GbE RJ45 Ports | 20 | 40 | 24 | 24 |
| GbE RJ45 PoE Ports | - | - | 16 | 16 |
| GbE SFP or RJ45 Shared Ports | 2 | - | - | - |
| GbE SFP Ports | - | 2 | 2 | 2 |
| USB Ports (Client / Server) | 1/2 | 1/1 | 1/1 | 1/1 |
| T1 Port | - | - | - | 1 |
| Console Port | 1 | |||
| Internal Storage | 32 GB | |||
| System Performance | ||||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 2,500 / 1,000 / 200 Mbps | |||
| Firewall Latency (64 byte UDP packets) | 37 μs | 46 μs | 46 μs | 46 μs |
| Firewall Throughput (Packets Per Second) | 300 Kpps | |||
| Concurrent Sessions (TCP) | 3 Million | |||
| New Sessions/Sec (TCP) | 22,000 | |||
| Firewall Policies | 10,000 | |||
| IPSec VPN Throughput (512 byte packets) | 450 Mbps | |||
| Gateway-to-Gateway IPSec VPN Tunnels | 2,000 | |||
| Client-to-Gateway IPSec VPN Tunnels | 5,000 | |||
| SSL-VPN Throughput | 300 Mbps | |||
| Concurrent SSL-VPN Users (Recommended Max) | 300 | |||
| IPS Throughput | 950 Mbps | |||
| Antivirus Throughput (Proxy Based / Flow Based) | 300 / 650 Mbps | |||
| Virtual Domains (Default / Max) | 10 / 10 | |||
| Max Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 | |||
| Max Number of FortiTokens | 1,000 | |||
| Max Number of Registered FortiClients | 2,000 | |||
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |||
| Dimensions | ||||
| Height x Width x Length (in) | 1.75 x 17.01 x 11.73 in | 1.75 x 17.01 x 12.28 in | 1.75 x 17.01 x 12.28 in | 1.75 x 17.01 x 12.28 in |
| Height x Width x Length (mm) | 44 x 432 x 298 mm | 44 x 432 x 312 mm | 44 x 432 x 312 mm | 44 x 432 x 312 mm |
| Form Factor | Rack Mount, 1 RU | |||
| Weight | 9.5 lbs (4.3 kg) | 11.5 lbs (5.2 kg) | 11.5 lbs (5.2 kg) | 11.5 lbs (5.2 kg) |
| Environmental | ||||
| Power Required | 100 - 240 VAC, 50 - 60 Hz | |||
| Max Current | 110 V / 3 A, 220 V / 1.5 A | 110 V / 2 A, 220 V / 1 A | 110 V / 4 A, 220 V / 2 A | 110 V / 4 A, 220 V / 2 A |
| Total Available PoE Power Budget | - | - | 270 W | 270 W |
| Power Consumption (AVG / Max) | 52.6 W / 63.1 W | 44.8 / 58.7 W | 193.4 W / 337.1 W | 193.4 W / 337.1 W |
| Heat Dissipation | 215.3 BTU/h | 200.3 BTU/h | 1150.2 BTU/h | 1150.2 BTU/h |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) | |||
| Storage Temperature | -31 - 158 °F (-35 - 70 °C) | |||
| Humidity | 20 to 90% non-condensing | |||
| Compliance & Certifications | ||||
| Compliance | FCC Class A Part 15, UL/CUL, CE, C Tick, VCCI | |||
| Certifications | ICSA Labs: Firewall, SSL VPN, IPS, Antivirus | |||
-
