Specifications

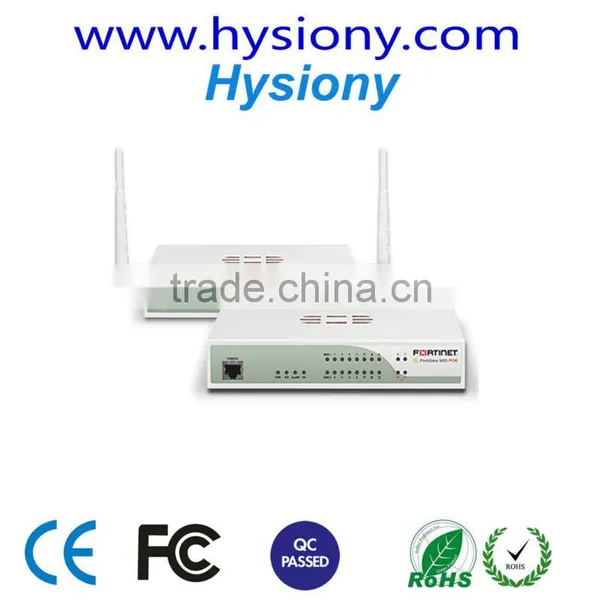

Original New FortiWiFi-90D Fortinet Security Appliance FWF-90DFortinet Security Appliance
FortiWiFi-90D
FWF-90D ...
The FortiGate/FortiWiFi-60, 80 and 90 series are compact, all-in-one Network Security Appliances that deliver Fortinet’s Connected UTM solution. Ideal for remote locations, customer premise equipment (CPE) and retail or healthcare networks, the FortiGate/FortiWiFi-60, 80 and 90 series appliances offer the network security, connectivity and performance you need.
With Connected UTM you get a single device that integrates comprehensive enterprise-grade protection with a broad range of Wired and Wireless connectivity options. It enables you to deploy a high-performance, highly secure remote infrastructure with one appliance that’s easy to set up and centrally manage.
- Comprehensive network security, including Application Control, IPS, Advanced Antimalware, Web Filtering, VPN and WAN Optimization
- Simple per-device pricing eliminates the need to count users or license additional modules.
- Firewall throughput up to 3.5 Gbps prevents your network security from being your network bottleneck
- Optional Power over Ethernet (PoE) support enables you to connect Wireless Access Point, 3G4G Extenders, VoIP Handsets and IP Cameras to your network security platform and away from power supplies.
Connected UTM optimizes your complex network and makes it easier for your IT staff to improve your security, simplify your infrastructure, and lower your TCO.
| FortiGate Model | FortiGate-90D | FortiWiFi-90D |
|---|---|---|
| Hardware Specifications | ||
| GbE RJ45 WAN Ports | 2 | 2 |
| GbE RJ45 Switch Ports | 14 | 14 |
| Wireless Interface | N/A | 802.11 a/b/g/n |
| USB Ports (Client / Server) | 1/2 | 1/2 |
| Internal Storage | 32GB | 32GB |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 3.5 Gbps | |
| Firewall Latency (64 byte UDP packets) | 4 μs | |
| Firewall Throughput (Packets Per Second) | 5.3 Mpps | |
| Concurrent Sessions (TCP) | 1.5 Million | |
| New Sessions/Sec (TCP) | 4,000 | |
| Firewall Policies (Max) | 5,000 | |
| IPSec VPN Throughput (512 byte packets) | 1 Gbps | |
| Gateway-to-Gateway IPSec VPN Tunnels | 200 | |
| Client-to-Gateway IPSec VPN Tunnels | 1,000 | |
| SSL-VPN Throughput | 35 Mbps | |
| Concurrent SSL-VPN Users (Recommended Max) | 200 | |
| IPS Throughput | 275 Mbps | |
| Antivirus Throughput (Proxy Based / Flow Based) | 35 / 65 Mbps | |
| Virtual Domains (Default / Max) | 10 / 10 | |
| Max Number of FortiAPs | 16 | |
| Max Number of FortiTokens | 100 | |
| Max Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length | 1.72 x 9.17 x 8.78 in (44 x 233 x 223 mm) | |
| Weight | 3.5 lbs (1.6 kg) | |
| Form Factor | Desktop | |
| Environmental | ||
| Power Required | 100 - 240 VAC, 50 - 60 Hz | |
| Max Current | 110 V / 1.5 A, 220 V / 0.75 A | |
| Power Consumption (AVG / Max) | 18.2 W / 21.8 W | 20.7 W / 24.8 W |
| Heat Dissipation | 74.4 BTU / h | 84.6 BTU / h |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) | |
| Storage Temperature | -31 - 158 °F (-35 - 70 °C) | |
| Humidity | 20 to 90% non-condensing | |
| Compliance & Certifications | ||
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN | |
-
