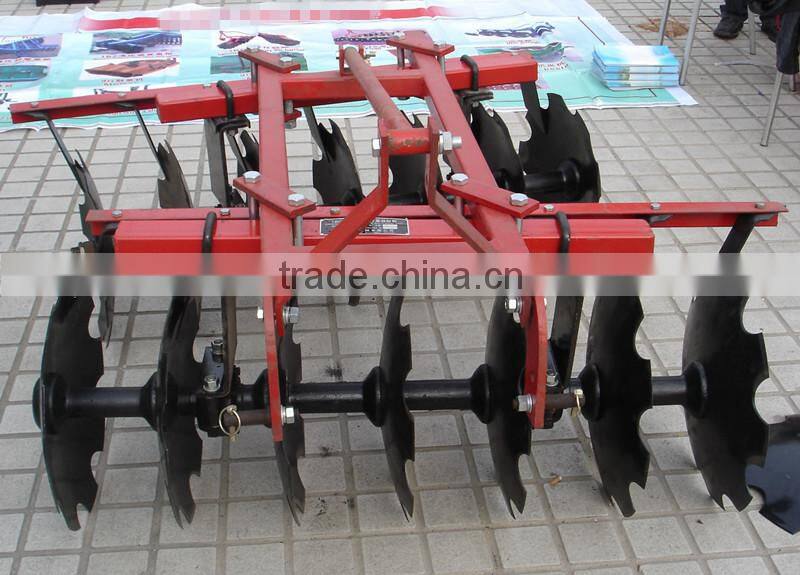

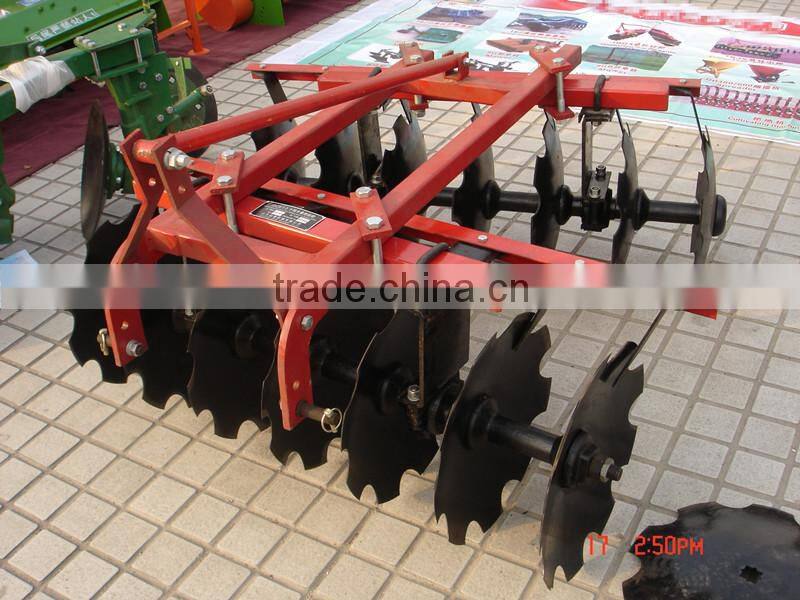

Hot Sale Atv Drag Harrow for Tractor
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Type | agricultural machinery | Use | tractor implements | |
| Certification | CE | Place of Origin | Shandong, China | |
| Brand Name | HUA XIA | Model Number | 1BQX-1.5 | |
| Condition | New | After-sales Service Provided | Overseas service center available |
Product Description
Details for atv drag harrow :
| Type | 1BQX-1.5 |
| Model | 16 patches mounted light-duty disc harrow |
| Power Supply | 25~30hp |
| Working width | 1500mm |
| Working depth | 100~140mm |
| Dia. Of disc | 460mm |
| No. of disc | 16pcs |
| Productivity | 0.97ha/h |
| Linkage | There-point mounted |
| Overall dimension | 1905mm*1550mm*1118mm |
| Type | 1BQX-1.7 |
| Model | 18 patches mounted light-duty disc harrow |
| Power Supply | 30~35hp |
| Working width | 1700mm |
| Working depth | 140mm |
| Dia. Of disc | 460mm |
| No. of disc | 18pcs |
| Productivity | 1.2ha/h |
| Linkage | There-point mounted |
| Overall dimension | 1985mm*1750mm*1118mm |
| Type | 1BQX-1.9 |
| Model | 20patches mounted light-duty disc harrow |
| Power Supply | 30~40hp |
| Working width | 1900mm |
| Working depth | 140mm |
| Dia. Of disc | 460mm |
| No. of disc | 20pcs |
| Productivity | 1.3ha/h |
| Linkage | There-point mounted |
Implements:
We provide D.SKD Steel frame package for atv drag harrow . Safe and convinient.
We're a manufacturer specialize in product various of tractors for 16 years, and have rich experience in product and export tractors.
- Color
Any color can be acceptable.
- Warranty time and the Spare Parts
1. We supply 2 years long warranty time.
2.The Easy-damage parts, we will send you together with the tractor for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3. We will send you the tool Box For free.
Q. I'm a complete tractor novice, never driven one in my life - can you help me?
A. Absolutely! Your new tractor comes with a training DVD and instruction manual. If you still need assistance, we're only a phone call away - we're here to help.
Q: Why are HuaxiaTractors such awesome value for money?
A: Huaxia Tractors are awesome value because we are manufacturer. We have no commercial lease to pay. Tractors and implements are stored in a rural shed, so we pass the savings directly on to you.
Q: Do implements require any assembly?
A: Yes. Most implements have some assembly required, they're typically partially assembled for transportation. Tightening of all bolts is required.
Q: What lubrication do implements require?
A: Unless otherwise stated, all implements with gearboxes, such as slashers, post hole borers and rotary tillers, are shipped dry and require the addition of gear oil.
Q: Is the three point linkage limited to just two positions? (Up or down).
A: No. The three point linkage can be stopped at any position.
Q: What type of three-point linkage does the tractor have?
A: The tractor has a Category 1 three-point linkage
Q: How much weight can the three point linkage lift?
A: This depends on which model tractor you purchase. Please review the specifications page.
Q: How much fuel does the tractor use?
A: Approximately 5 - 7 litres per hour, depending on engine capacity, speed, load, etc.
Please review the specifications page for more information.
Q: What speed and power does the PTO deliver?
A: The PTO has dual speeds: 540 / 1000 RPM.
Q: What type of brakes does the tractor have?
A: The Fumetsu has Non-Hydraulic Drum Brakes on the rear wheels.
