Leon Series butterfly cone exhaust fan for poultry farm
Specifications:
Main materials: Stainless steel; Hot galvanized sheetApplication: Greenhouse, Poultry house, Dairy farm, Industrial use etc.Advantages: There is a centrifugal pushpull device, which make shutters open up completely and keep it constantly no matter what the pressure is in the house. So the larger and steady air volume is caused.
|
|
Leon fan blade: is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade. |
|
|
Frame: The automatic transform craft that adopts a forerunner models at a time, especially thick galvanizing layer, the anticausticity is the strongest, the bottom applies drainage outlet. |
|
|
Linking parts made of aluminum alloy, light weight, not deformation, and with wear-resistant shaft sleeve, reduce clearance, then reduce frication to ensure the shutters open flexibly. The spring is made of 304 stainless steel, long time use, no deformation, no rust. |
|
|
Motor:Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55,insulation class F grade. |
|
|
Belt Pulley:Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, lower vibration. Blastsanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability. |
|
|

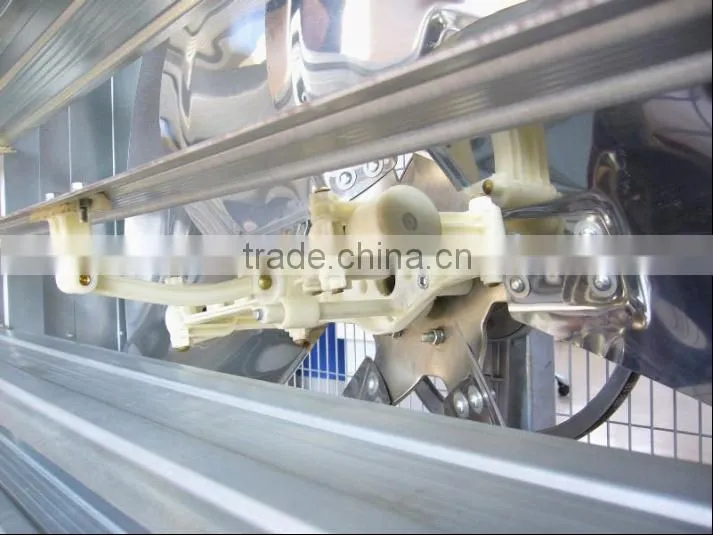

Centrifugal System: Centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When close, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system all are copper rivets, wearresisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensures the high strength, no rust, reduces frication. |
|
|
Belts: China famous brand Sanlux belt, Japan Mitsubishi belt, Korea Dongil belt can be choose |
|
|
Bearing:Fan bearing adopts imported doublerow bearing with special waterproof design, water can’t enter. High strength, lower noise, maintenance free and long service life. |

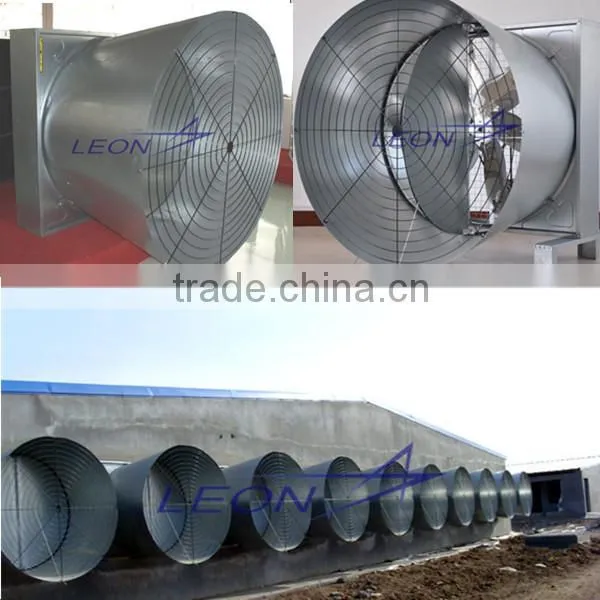

Leon series butterfly cone fan for poultry house
|
Model specifications |
Diameter blades- mm |
Blades rotational speed- rpm |
Motor rotational speed- rpm |
Air flow m3/h |
Total pressure-Pa |
Noise decibels |
Import power- W |
Rated voltage- V |
High mm |
Width mm |
Thick mm |
|
LN-1380 (54'') |
1250 |
439 |
1400 |
44000 |
80 |
≤70 |
1100 |
380 |
1380 |
1380 |
1300 |

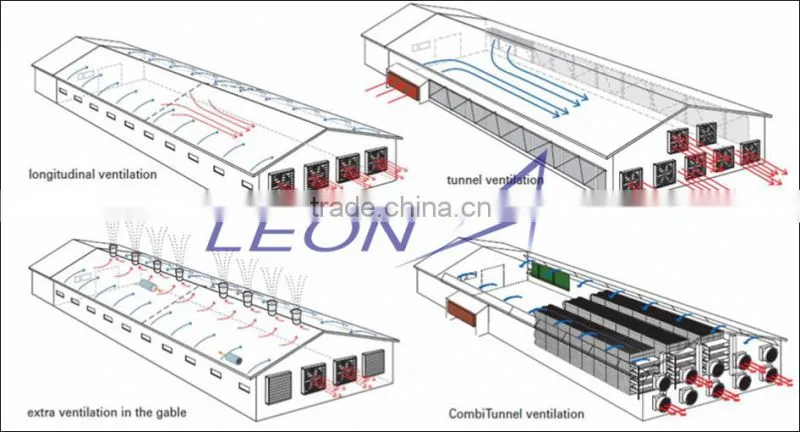

Installation Diagram
Leon ventilation system project
Packaging and export loading
