Type 3 Cng Cylinder, Hydrogen Cylinder
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Composite Material
Use:
CNG
Pressure:
High
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carbon Fiber Fully Wrrapped Aluminum CylinderUS$ 5,001 - 9,999MOQ: 50 Pieces -
TYPE 3 CNG CYLINDERUS$ 600 - 1,500MOQ: 100 Pieces
-
Type 3 Cng Tank for VehiclesUS$ 400 - 600MOQ: 100 Pieces
-
TYPE 3 CNG CYLINDER for VehiclesUS$ 600 - 1,500MOQ: 100 Pieces
-
TYPE 3 CNG CYLINDER 2016 ModelUS$ 600 - 1,500MOQ: 10 Pieces
Material
Composite Material
Use
CNG
Pressure
High
Brand Name
CLD
Model Number
FQC
Specifications

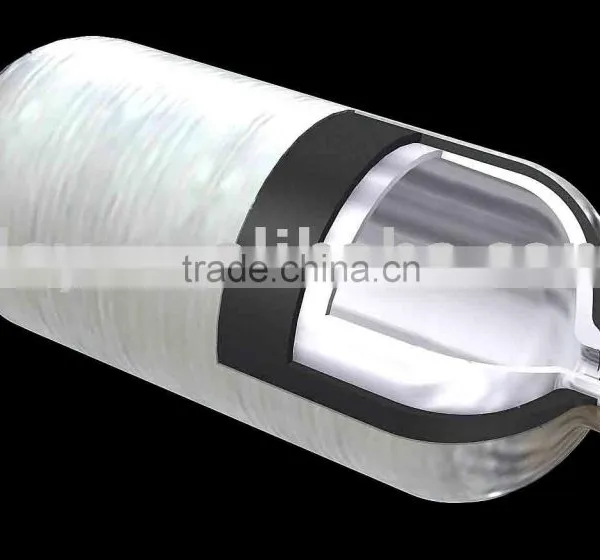

Compared with steel cylinders, our products have better comprehensive properties, such as higher working pressure, Cylinder liners are made of high quality 6061 aluminum alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency. Anodic oxidation treatment gives the inner surface better corrosion resistance performance. Cylinder winding layers are made of imported superior quality carbon fibers, epoxy and other materials and are manufactured through the procedures of CNC winding, high temperature curing, etc.
| specification | Water Capacity (L) | WeightKg | Outside diamter(mm) | Lengthmm |
| FQC60-0.5-30 | 0.5 | 0.6 | 60 | 311 |
| FQC108-1.5-20 | 1.5 | 0.9 | 108 | 270 |
| FQC113-1.6-20 | 1.6 | 1 | 113 | 265 |
| FQC113-2.0-20 | 2 | 1.4 | 113 | 320 |
| FQC101-2.0-30 | 2 | 1.6 | 101 | 405 |
| FQC115-2.0-30 | 2 | 1.6 | 115 | 328 |
| FQC120-2.2-20 | 2.2 | 1.5 | 128 | 320 |
| FQC128-2.4-20 | 2.4 | 1.6 | 128 | 306 |
| FQC128-2.5-20 | 2.5 | 1.7 | 128 | 315 |
| FQC132-2.7-20 | 2.7 | 1.7 | 132 | 315 |
| FQC115-3.0-30 | 3 | 2 | 115 | 454 |
| FQC136-3.0-30 | 3 | 2.2 | 136 | 352 |
| FQC113-3.2-20 | 3.2 | 2.3 | 113 | 490 |
| FQC140-4,7-30 | 4.7 | 3.3 | 140 | 487 |
| FQC140-4,8-30 | 4.8 | 3.3 | 140 | 500 |
| FQC157-6.8-30 | 6.8 | 4.1 | 157 | 533 |
| FQC174-9.0-30 | 9 | 5.1 | 174 | 573 |
