Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank

Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank thumbnail-1
Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank thumbnail-2
Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank thumbnail-3
Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank thumbnail-4
Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank thumbnail-5

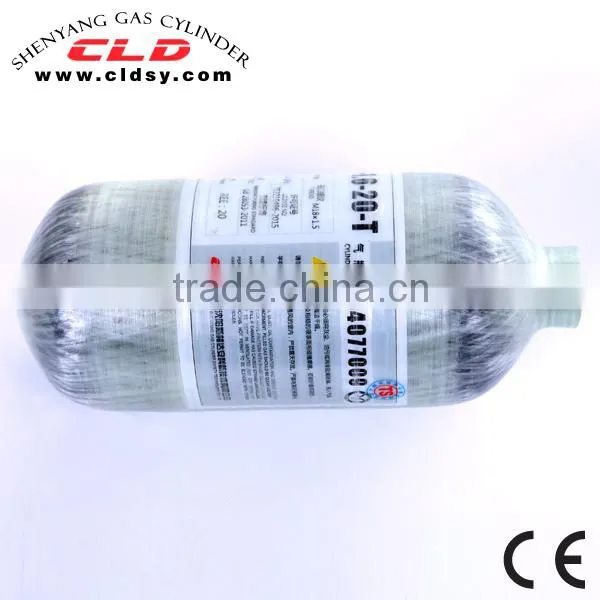

Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank photo-1

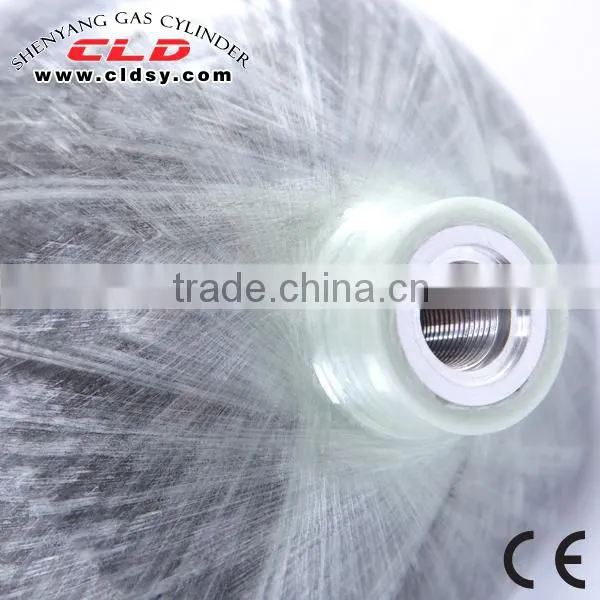

Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank photo-2

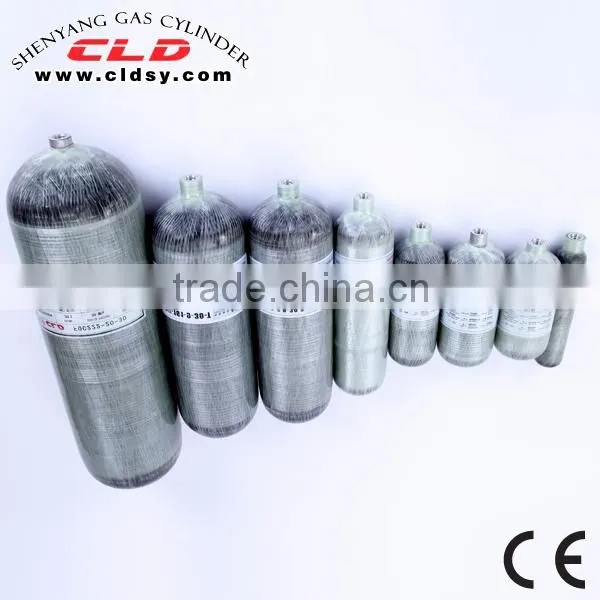

Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank photo-3

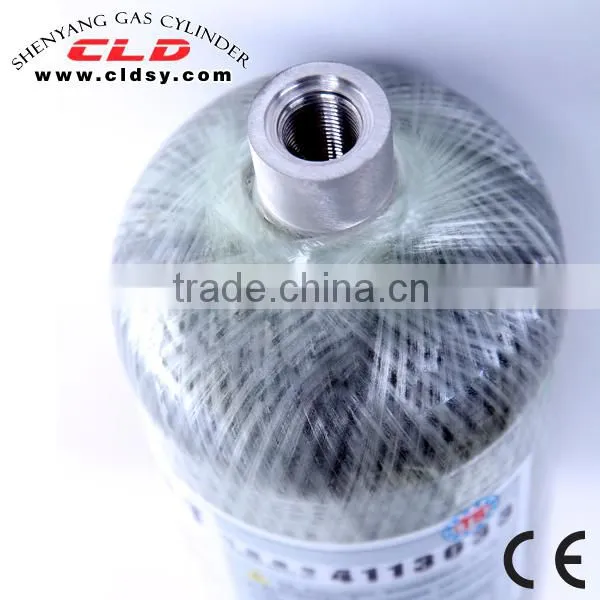

Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank photo-4

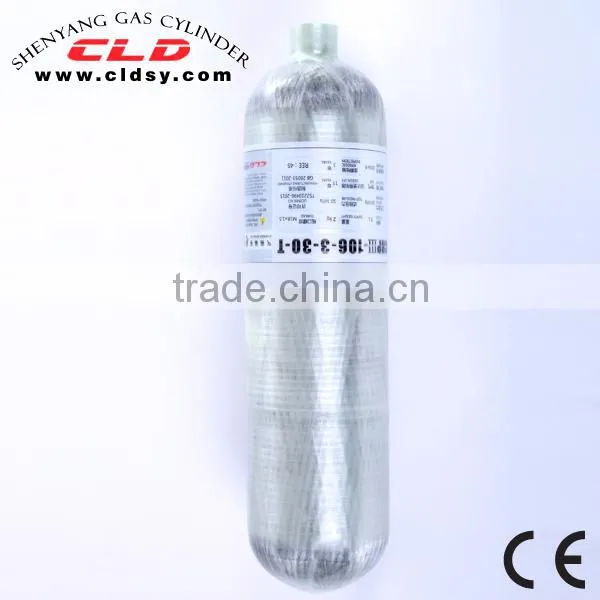

Fully Wrapped Carbon Fiber High Pressure Composite Cylnder/tank photo-5
US$ 95 - 1,500 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Material:
Composite Material
Use:
Oxygen
Pressure:
High
Contact Supplier Request Quote Chat Now
Shenyang Gas Cylinder Safety Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Composite Material
Use Oxygen
Pressure High
Place of Origin Liaoning, China
Brand Name CLD
Model Number EFQC 0.3---50L



specifications

 Water capacity Outside Diameter Overall length Empty weight Working pressure
LTS CU FT MM IN MM IN KGS LBS BAR PSI
FQC63-0.3-30 0.3 0.01 63 2.48 212 8.35 0.45 0.99 300 4350
FQC60-0.45-30 0.45 0.02 60 2.36 280 11.02 0.5 1.10 300 4350
FQC60-0.5-30 0.5 0.02 60 2.36 310 12.20 0.6 1.32 300 4350
FQC101-0.5-30 0.5 0.02 101 3.98 160 6.30     300 4350
FQC100-1.2-20 1.2 0.04 100 3.94 280 11.02 0.9 1.98 200 2900
FQC118-1.3-35 1.3 0.05 118 4.65 236 9.29 1.20 2.65 350 5075
FQC101-1.5-30 1.5 0.05 101 3.98 324 12.76 1.30 2.87 300 4350
FQC108-1.5-20 1.5 0.05 108 4.25 270 10.63 0.9 1.98 200 2900
FQC113-1.6-20 1.6 0.06 113 4.45 268 10.55 0.9 1.98 200 2900
FQC113-2.0-20 2 0.07 113 4.45 320 12.60 1.4 3.09 200 2900
FQC101-2.0-30 2 0.07 101 3.98 405 15.94 1.6 3.53 300 4350
FQC115-2.0-30 2 0.07 115 4.53 328 12.91 1.6 3.53 300 4350
FQC116-2.0-20 2 0.07 116 4.57 292 11.50 1.40 3.09 200 2900
FQC118-2.0-30 2 0.07 118 4.65 330 12.99 1.6 3.53 300 4350
FQC120-2.2-20 2.2 0.08 120 4.72 320 12.60 1.3 2.87 200 2900
FQC132-2.2-20 2.2 0.08 132 5.20 257 10.12 1.35 2.98 200 2900
FQC128-2.4-20 2.4 0.08 128 5.04 306 12.05 1.5 3.31 200 2900
FQC128-2.5-20 2.5 0.09 128 5.04 315 12.40 1.5 3.31 200 2900
FQC132-2.7-20 2.7 0.10 132 5.20 315 12.40 1.4 3.09 200 2900
FQC115-3.0-30 3 0.11 115 4.53 454 17.87 2 4.41 300 4350
FQC136-3.0-30 3 0.11 136 5.35 352 13.86 2 4.41 300 4350
FQC113-3.2-20 3.2 0.11 113 4.45 495 19.49     200 2900
FQC140-4.7-30 4.7 0.17 140 5.51 487 19.17 3.3 7.28 300 4350
FQC140-4.8-30 4.8 0.17 140 5.51 500 19.69     300 4350
FQC157-6.8-30 6.8 0.24 157 6.18 533 20.98 3.9 8.60 300 4350
FQC174-9.0-30 9 0.32 174 6.85 570 22.44 5.1 11.24 300 4350
FQC196-12-30 12 0.42 196 7.72 605 23.82 6.5 14.33 300 4350
FQC200-12-30 12 0.42 200 7.87 605 23.82 7.1 15.65 300 4350
FQC220-20-25 20 0.71 220 8.66 770 30.31 11 24.25 250 3625
FQC222-20-30 20 0.71 220 8.66 770 30.31 12 26.46 300 4350
FQC352-50-30 50 1.77 352 13.86 795 31.30 26 57.32 300 4350



Our CNG Aluminum Alloy Lined cylinders Fully Wrapped with Carbon Fiber are designed for CNG vehicles(buses, compact cars,etc.).The cylinders offer advantages of low temperature toughness, fatigue resistance, low weight and high safety. Compared with CNG Steel Lined Hoop-Wrapped Cylinder for Vehicles, CNG Aluminum Alloy Lined Cylinders Fully Wrapped with Carbon Fiber are much lighter,up to 50% lighter in weight.
