Portable Mini and High Speed 3G 4G LTE Wifi Router

                          Specification

Technical

TD-LTE

3GPP/3GPP2 Release9,Category 3,up to 68M DL and 17M bps UL@20MHz bandwidth

FDD LTE

3GPP/3GPP2 Release9,Category3,up to 100M DL and 50M bps UL@20MHz bandwidth

TD-HSPA+

3GPP/3GPP2 Release7,up to 4.2Mbps DL and 2.2Mbps UL

DC-HPSA+

3GPP/3GPP2 Release8, up to 42Mbps ,category 24,5.76M bps UL

HPSA+

3GPP/3GPP2 Release7, up to 14.4Mbps ,category 10,5.76M bps UL

HSPA

3GPP/3GPP2 Release6, up to 7.2M bps DL,category 7/8,5.76M bps UL

UMTS

3GPP Release4, up to 384 Kbps DL and UL

EDGE

3GPP Release4, Multislot class 12, up to 237 Kbps

GPRS

3GPP Release4, Multislot class 10, up to 85.6Kbps

                                       Band  Frequency

TD-LTE

1.9(B39) 2.3(B40) 2.6(B38) GHz 2.6(B41) GHz

FDD LTE

B1(2100MHz) B3(1800MHz) B7(2600MHz)

TD-SCDMA

2.0(B34) 1.9(B39) GHz

UMTS

B1(2100MHz)B2B5B8(900MHz)

EVDOCDMA 1X

BC0(824-849MHz,869-894MHz)

GSM

B2(1900MHz)/B3(1800MHz)/B5(850MHz)/B8(900MHz)

                                       Wifi Transfer rate

wifi

802.11 b/g/n,  Up to 150Mbps

                                      Peripheral Interface

Micro-USB

support USB2.0HS

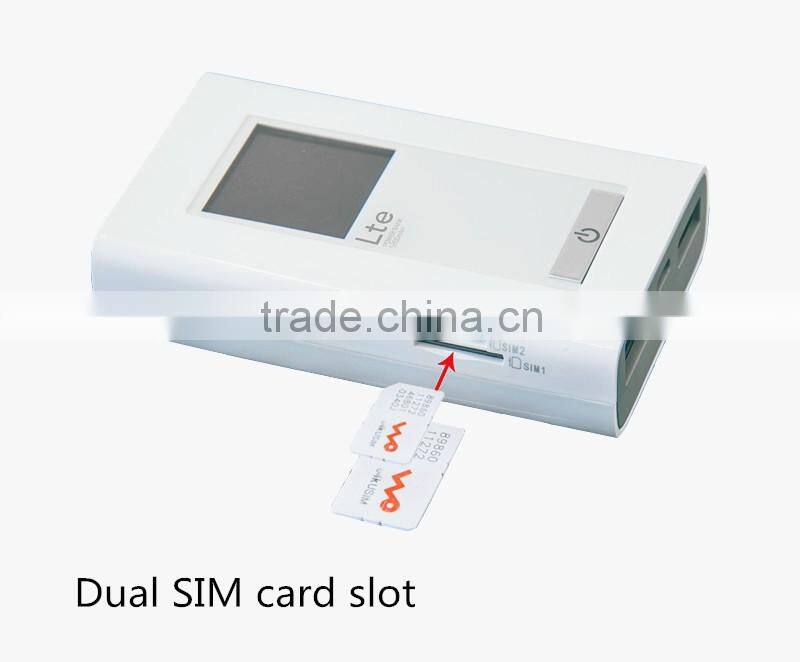

SIM/USIM Card Slot

yes,6PIN,3GPP 31.101 and 31.102;SIM  X 1,Micro SIM  X 1

T-Flash Card Slot

Up to 32GB

TFT-LCD

color1.44',resolution 128*128

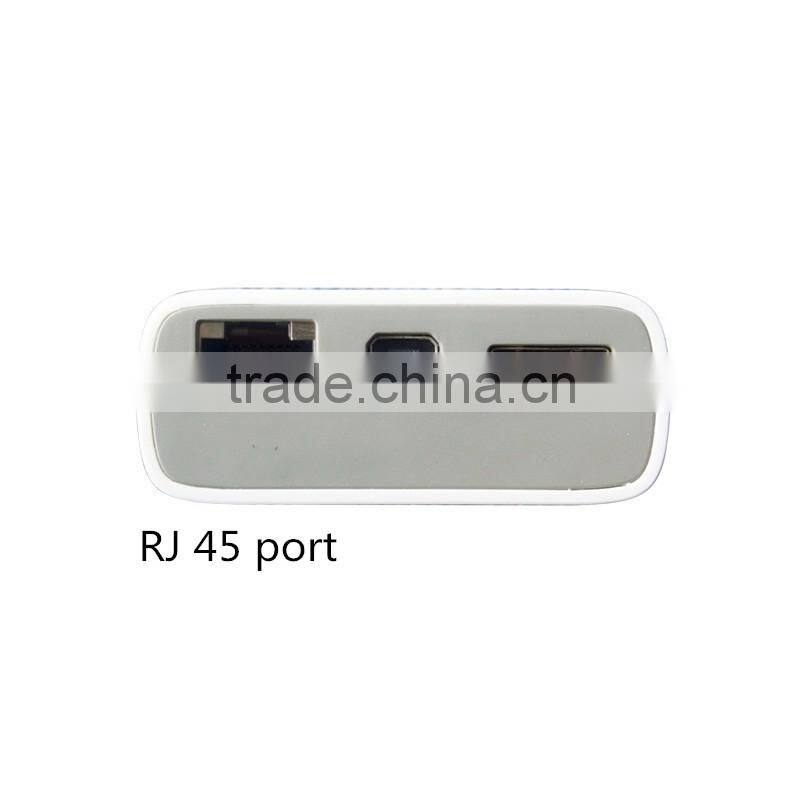

Ethernet

RJ45 X 1

USB-A-SMA Female

USB-A  X 1

Antenna

Inbuilt main antenna of 3G/LTE;Affiliate of 3G/LTE;Main antenna of wifi;Affiliate of wifi

                                  Battery Parameters&Accessories

Battery

Built-in 5200Mah Li-Battery support power bank function

voltage rating

3.7V~4.2V

work time

Up to 18 hours(LTE),24 hours(UMTS)

stand-by time

More than 7*24 hours

adapter

1, 5v/1.5A(optional)

usb cable

1

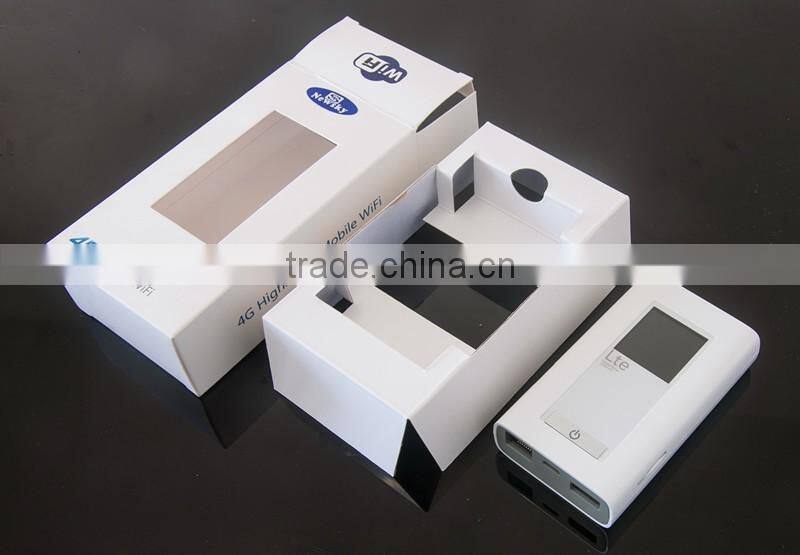

Gift box

1

Quick User Manual

1

Product Size

96.0*59.0*14mm

product weight

105g

Button

Power on ; Reset

                                         Certification

Certification

CE Granded (up to customers)
