7.2Mbps Hsupa Microsd 3g Modem With Wifi Function

US$ 12 - 12 MOQ: 100 Pieces

Key Specifications

Products Status:

Stock

Style:

External

Type:

Wireless

Newsky Tech. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Style External

Type Wireless

Interface Type USB

Transmission Rate Other, 7.2Mbps

Certification CE ROHS

Brand Name OEM

Model Number DM6434R

Place of Origin Guangdong, China

Product Description

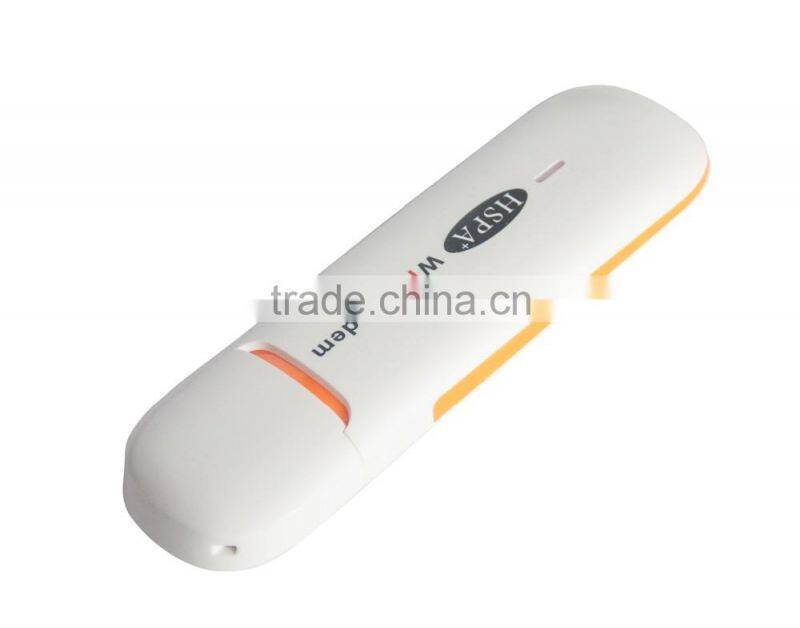

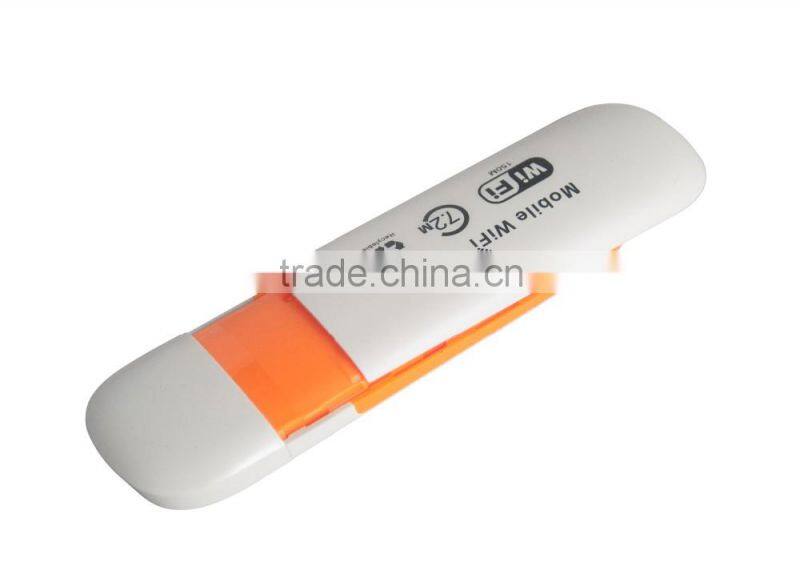

7.2Mbps hsupa microsd 3g modem with wifi function

Sales Key

1, Portable and elegant appearance.

2, DL 7.2Mbps , UL 5.76Mbps

3, WIFI users :Support 5 end users ,WIFI speed 150Mbps.

4,Network type :WCDMA HSUPA/HSDPA/ GSM EDGE/GPRS

5,Antenna: Dual separate antenna design(modem&router)

6,Do OEM/ODM customized based one MOQ500pcs,

7,Fast delivery (3 days for the samples, 7-20 days for bulk order)

8,Steady quality,14 months warranty.

Specification
Communication System	WCDMA 2100 MHz(850/900/1900 are optional)
	GSM/GPRS/EDGE 900/1800MHz(850/1900 are optional)
Speed	Optional: HSPA (HSUPA/HSDPA)/UMTS DL/UL 7.2Mbps/5.76 Mbps
	Optional: EDGE/ 384 kbps DL / UL
	WIFI Speed:UP to 150Mbps
LED	2G/3G Status WIFI Status
External Interface	USB interface USB2.0
	Reset button
	MicroSD card slot, up to 32GB
	SIM card slot
WLAN Feature	Protocol:802.11 b/g/n
	Internal antenna
	Frequency:2.4GHz
	Up to 5 WIFI users/devices
Functions	WEP,WPA,WPA2, WPA-PSK, WPA2-PSK,TKIP-CCMP
	WPS 2.0
	SMS
	Auto-APN
	SSID
	PIN/PUK code support
Power supply	Power supply input :3.4-4.2 V charge input(5V-1A)
	Power supply output :5V-1A(Power bank functions)
Operation System	Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X 10.5, 10.6, 10.7 and 10.8 with latest upgrades
Environment	Normal Operation:0°C to +45°C
	Restricted Operation Temperature: -10°C to +55°C
No. of WiFi device	MAX to 10
Web management page:	http://192.168.1.1 password admin. With multiple languages.
HI-LINK ROUTER :	No need click install driver ,no need setting APN, ,no need connect ,all of the operate is AUTOMATICK, just wait for 25s and input the WIFI connect password.directly surf internet
Antenna	Dual separate antenna design( modem & router )
