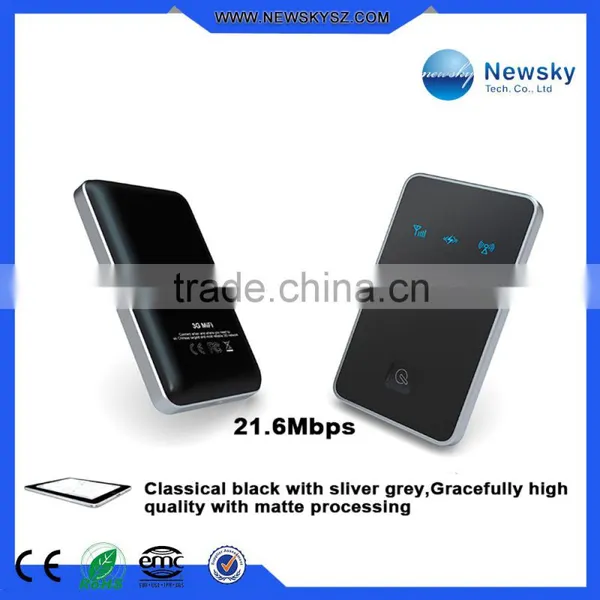

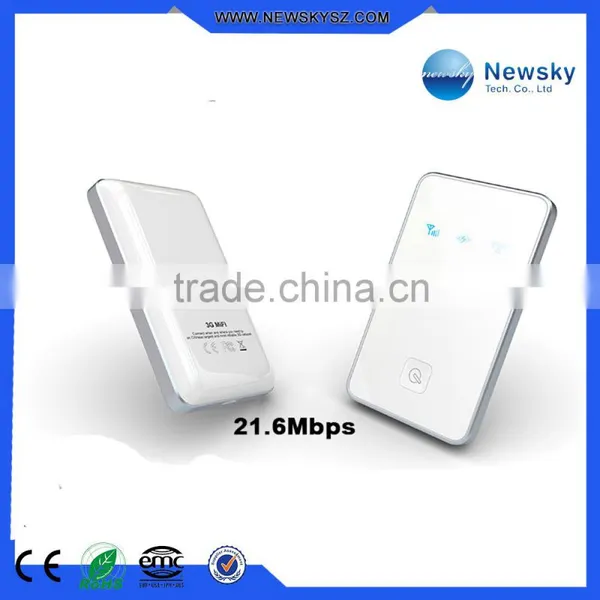

High quality 3g hspa+ wireless router wifi hotspot
1,Support for HSPA/UMTS Tri-band HSPA/UMTS 2100/1900/850MHz
2,Quad-band EDGE/GPRS/GSM 850/900/1800/1900MHz
3,Access HSPA+ (21.6Mbps download and 5.76Mbps upload) intelligent pocket hotpot. Users can share the high speed network anywhere and anytime when 3G network covered..
4, Allows up to 10 Wi-Fi enabled devices to connect to the internet.
5, Easily and quickly charge. The device can be charged by PC and adaptor
6, Up to 5 hours continuous and 150 hours standby for battery
7,Integrated high-capacity micro SDHC slot . Provide storage capacity of up to 32GB, allowing access from all the connected users over Wi-Fi
8,Compatible with AGPS (optional) for the hardware
Operating Frequency |
Ÿ HSPA/UMTS2100MHz: 1920MHz~1980MHz(Uplink)/2110MHz~2170MHz(Downlink) Ÿ HSPA/UMTS1900MHz: 1850MHz~1910MHz(Uplink)/1930MHz~1990MHz(Downlink) Ÿ HSPA/UMTS850MHz: 824MHz~849MHz(Uplink)/869MHz~894MHz(Downlink) Ÿ GSM/GPRS/EDGE 850MHz: 824MHz~849MHz(Uplink)/869MHz~894MHz(Downlink) Ÿ GSM/GPRS/EDGE900MHz: 880MHz~915MHz(Uplink)/925MHz~960MHz(Downlink) Ÿ GSM/GPRS/EDGE1800MHz: 1710MHz~1785MHz(Uplink)/1805MHz~1880MHz(Downlink) Ÿ GSM/GPRS/EDGE1900MHz: 1850MHz~1910MHz(Uplink)/1930MHz~1990MHz(Downlink) |
Network Supported |
HSPA/UMTS 2100/1900/850 MHz (Rx Diversity in WCDMA2100MHz) GSM/GPRS/EDGE 850/900/1800/1900MHz |
Power Class |
UMTS/HSPA 2100MHz: +24dBm +1/-3dB (Power Class 3) UMTS/HSPA 1900MHz:+24dBm +1/-3dB (Power Class 3) UMTS/HSPA 850MHz: +24dBm +1/-3dB (Power Class 3) GSM/GPRS 850/900MHz: +33dBm +/-2dB (Power Class 4 ) GSM/GPRS 1800/1900MHz: +30dBm +/-2dB (Power Class 1 ) EDGE 900MHz: +27dBm (Power Class E2) EDGE 1800/1900MHz: +26dBm (Power Class E2) |
Maximum Power Consumption |
WLAN power: 11±1.5dBm(with battery in 10m) * In theory, up to 30m coverage with the adaptor |
Antenna |
Internal antenna Internal diversity antenna Internal WiFi antenna Internal GPS antenna (optinal) |
Software Specifications | |
Data Service |
HSPA+ DL 21.6Mbps UL 5.76 Mbps HSPA+ DL14.4 Mbps UL 5.76Mbps HSPA DL 7.2Mbps UL 5.76 Mbps UMTS DL/UL 384 kbps GPRS DL 85.6 kbps / UL 42.8 kbps EDGE 3GPP R4, Category 12, DL 237k bps / UL 118K bps |
Short Message Service |
SMS receive/send |
|
Phone book business |
Client |
Auto-run PC application Web setting client |
Software Installation |
Auto installation of PC suite and driver |
WiFi users management |
Add/reduce the WiFi users |
others |
PIN management Language setting Automatically or Manually network register Profile management File sharing |
Interface Specifications | |
USB |
Standard Micro USB |
SIM/USIM Card Slot |
Standard 6-pin SIM card interface, in line with the 3GPP31.101 and 31.102 |
Battery |
Capacity: 1500mAh Removable, rechargeable Li-lon battery Up to 5hrs continuous, 150hrs standby |
LED Indicator |
Power: blue solid ----- hotpot working Red blinking ---- low battery Red solid ----- charging 3G signal: blue solid ---- 3G signal covered blue blinking ---- signal transferring WiFi signal: blue solid ---- WiFi power on blue blinking ---- WiFi users accessing
|
Adaptor |
5V, 1A(TBD) |
T-Flash Card Slot |
Maximum Capacity: 32G |
