Help CenterPrestressing Post Tensioning Anchorage Systerm for Duct
Related Products
-
Prestressing Pre -tension Concrete Anchor PlateUS$ 13 - 100MOQ: 2000 Sets -
Prestressed Concrete Post Tensioning ClipsUS$ 0.5 - 6MOQ: 10000000 Pairs
-
Prestressed Post Tensioning Anchor Grip Made in ChinaUS$ 0.5 - 6MOQ: 100000 Pairs
-
Prestressed Multi-Strand AnchorUS$ 0.5 - 10MOQ: 100 Pieces
-
12-holes Prestressed AnchorageUS$ 0.5 - 20MOQ: 100 Pieces
1. Specification: for 12.7mm or 15.24mm pc strand
2. Fast delivery.
3. Certification: ISO9001:2008
|
SPC |
STRAND NO |
BOLSTER |
CORRUGATED DIAMETER φD |
ANCHORAGE φE×F |
SPIRAL BAR |
ANCHOR BOLSTER |
Stressing Jack |
|||
| φG×φH×1 | CIRCLE |
INSTALL HOLE |
INSTALL HOLE |
|||||||
| YJM15-1 YJM13-1 |
1 | φ46×45 φ43×45 |
DC250Q YDC250Q |
|||||||
| YJM15-2 YJM13-2 |
2 | φ83×45 φ73×45 |
YCW100B YCW100B |
|||||||
| YJM15-3 YJM13-3 |
3 | φ135×85×66 φ130×80×63 |
φ50 φ50 |
φ87×45 φ78×45 |
φ130×φ10×50 φ130×φ10×50 |
4 4 |
φ112.5 φ110 |
M10 | YCW100B YCW100B |
|
| YJM15-4 YJM13-4 |
4 | φ136×100×66 φ136×95×68 |
φ55 φ50 |
φ93×50 φ87×48 |
φ140×φ10×50 φ136×φ10×50 |
4 4 |
φ115 φ115 |
M10 | YCW100B YCW100B |
|
| YJM15-5 YJM13-5 |
5 | φ146×120×71 φ146×120×73 |
φ55 φ50 |
φ103×50 φ97×48 |
φ152×φ10×50 φ146×φ10×50 |
4 4 |
φ126 φ126 |
M10 | YCW150B YCW100B |
|
| YJM15-6 YJM13-6 |
6 | φ164×135×80 φ155×120×77.5 |
φ70 φ60 |
φ117×50 φ107×48 |
φ170×φ12×50 φ155×φ12×50 |
4 4 |
φ140 φ135 |
M10 | YCW150B YCW100B |
|
| YJM15-7 YJM13-7 |
7 | φ164×135×80 φ155×120×77.5 |
φ70 φ60 |
φ117×50 φ107×50 |
φ170×φ12×50 φ155×φ12×50 |
4 4 |
φ140 φ135 |
M10 | YCW250B YCW150B |
|
| YJM15-8 YJM13-8 |
8 | φ176×150×85 φ167×140×81 |
φ80 φ70 |
φ127×52 φ117×50 |
φ180×φ14×50 φ167×φ12×50 |
5 4 |
φ153 φ146 |
M10 | YCW250B YCW150B |
|
| YJM15-9 YJM13-9 |
9 | φ185×150×90 φ175×150×88 |
φ80 φ70 |
φ137×52 φ127×50 |
φ180×φ14×50 φ175×φ12×50 |
5 4 |
φ162 φ154 |
M10 | YCW250B YCW150B |
|
| YJM15-10 YJM13-10 |
10 | φ210×160×97.5 φ190×175×93 |
φ90 φ80 |
φ147×52 φ137×53 |
φ190×φ14×50 φ190×φ12×50 |
5 4 |
φ188 φ166 |
M10 | YCW250B YCW150B |
|
| YJM15-11 YJM13-11 |
11 | φ210×187×99.5 φ196×185×96 |
φ90 φ80 |
φ157×54 φ147×53 |
φ190×φ14×50 φ196×φ14×50 |
5 4 |
φ180 φ166 |
M10 | YCW350B YCW150B |
|
| YJM15-12 YJM13-12 |
12 | φ210×187×99.5 φ196×185×96 |
φ90 φ80 |
φ157×54 φ147×55 |
φ190×φ14×50 φ196×φ12×50 |
5 5 |
φ185 φ176 |
M10 | YCW350B YCW250B |
|
| YJM15-13 YJM13-13 |
13 | φ220×216×105 φ196×205×96 |
φ90 φ80 |
φ157×62 φ147×55 |
φ190×φ14×50 φ196×φ14×50 |
5 5 |
φ190 φ176 |
M10 | YCW350B YCW250B |
|
| YJM15-14 YJM13-14 |
14 | φ234×252×110 φ206×230×103 |
φ90 φ90 |
φ167×62 φ157×57 |
φ240×φ14×50 φ206×φ14×50 |
6 5 |
φ200 φ186 |
M10 | YCW350B YCW250B |
|
| YJM15-15 YJM13-15 |
15 | φ234×252×110 φ216×230×108 |
φ90 φ90 |
φ167×65 φ167×60 |
φ240×φ16×60 φ216×φ14×50 |
6 5 |
φ200 φ196 |
M10 | YCW400B YCW250B |
|
| YJM15-16 YJM13-16 |
16 | φ244×286×115 φ220×270×108 |
φ90 φ90 |
φ177×65 φ167×62 |
φ240×φ16×60 φ220×φ16×60 |
6 5 |
φ210 φ196 |
M10 | YCW400B YCW250B |
|
| YJM15-17 YJM13-17 |
17 | φ258×320×116 φ230×300×111 |
φ90 φ90 |
φ187×70 φ177×62 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ218 φ206 |
M10 | YCW500B YCW250B |
|
| YJM15-18 YJM13-18 |
18 | φ234×252×110 φ216×230×108 |
φ100 φ90 |
φ187×70 φ177×65 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ228 φ206 |
M10 | YCW500B YCW350B |
|
| YJM15-19 YJM13-19 |
19 | φ234×252×110 φ216×230×108 |
φ100 φ90 |
φ187×73 φ177×65 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ228 φ206 |
M12 | YCW500B YCW350B |
|
| YJM15-20 | 20 | φ265×290×122 | φ120 | φ197×75 | φ240×φ16×60 | 6 | φ228 | M12 | YCW500A | |
| YJM15-21 | 21 | φ290×320×134 | φ120 | φ224×78 | φ290×φ18×60 | 6 | φ254 | M12 | YCW500A | |
| YJM15-22 | 22 | φ290×320×134 | φ120 | φ224×78 | φ290×φ18×60 | 6 | φ254 | M12 | YCW500A | |
| YJM15-23 | 23 | φ306×430×145 | φ120 | φ244×82 | φ306×φ18×60 | 6 | φ274 | M12 | YCW650A | |
| YJM15-24 | 24 | φ306×430×145 | φ120 | φ244×82 | φ306×φ18×60 | 6 | φ274 | M12 | YCW650A | |
| YJM15-25 | 25 | φ306×430×145 | φ120 | φ244×85 | φ306×φ18×60 | 6 | φ274 | M12 | YCW650A | |
| YJM15-26 | 26 | φ306×430×145 | φ120 | φ244×85 | φ306×φ18×60 | 6 | φ274 | M12 | YCW650A | |
| YJM15-27 | 27 | φ306×430×145 | φ120 | φ244×85 | φ306×φ18×60 | 6 | φ274 | M12 | YCW650A | |

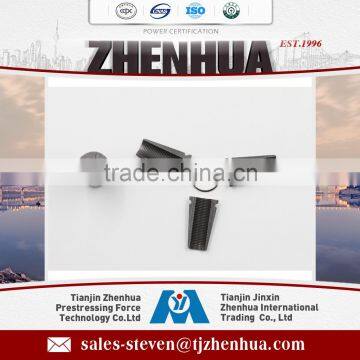

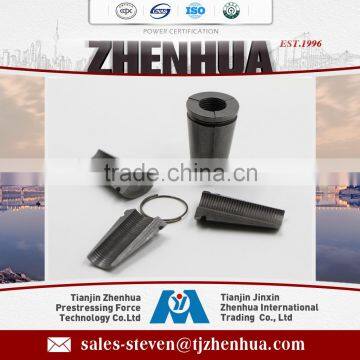

great quality best prestress anchorage wedges for pretension work
It includes some parts like limit board and anchor plate etc.
Its Hardness of manufacturer of industry wedge
work anchorage head and limit board: 25~4033HRC (306 HBS) work gripper :78~86HRA
Matched tensioning device manufacturer of industry wedge :
YCQQ series jack, ZB4-500 hydraulic pump
Heat treatment specification of manufacturer of industry wedge :
ISO9001 - 2008 & JB/T3999-1999
(Carburizing or carbonitriding and post–quenching and tempering of steel part)
During the Heat treatment permeability, nitriding, quenching, tempering process , The computer control process parameters of multi-purpose furnace, and set up quality control points according to the requirements of ISO9001 - 2008 quality assurance system, after heat treatment ,the hardness, tooth type, appearance have to pass a rigid thoroughly inspection, to ensure high qualified products.
All the procedure was controlled by a computer according to JB/T3999-1999
Other relatedYJM anchorage supporting parts:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 50% T/T in advance ,balance before shippment.
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.If you have another question, pls feel free to contact us.
