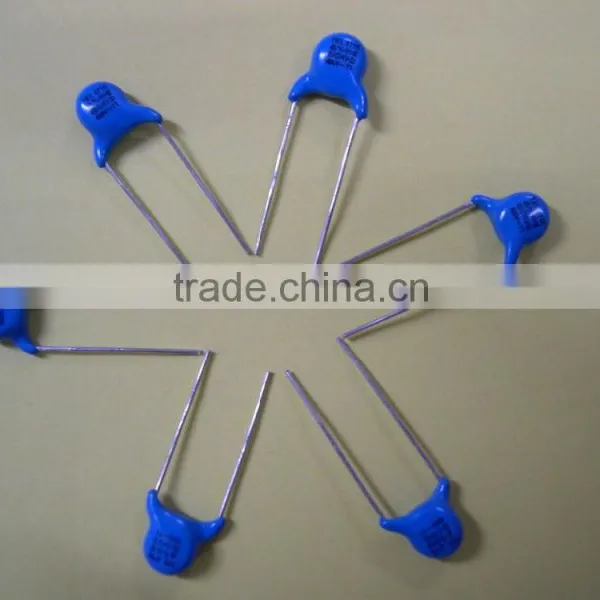

Ceramic Capacitor 470PF 400VAC Y1X1471PF Single Layer Capacitor for RFI/EMI Suppression Safety Certificate Y Capacitor

US$ 0.02 - 0.025 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

Y1471PF

Type:

Ceramic Capacitor

Shantou Songhua Electric Firm

Payment & Shipping

Payment Methods:

Port of Shipment:

HONGKONG;SHENZHEN;GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number Y1471PF

Type Ceramic Capacitor

Application General Purpose

Package Type Through Hole

Capacitance 470PF/471PF

Rated Voltage 400VAC

Operating Temperature standard

Product Description

y capacitor New & original capacitor / Y1 class 470pf 400vac

CT71(Y1,Y2)AC Series ceramic capacitors

1. The capacitor is round chip, epoxy resin of prevention burn package seal, round wire lead out of one direction and.

2.This capacitor has characteristics of safe apply, high test voltage alternation, The low dielectric loss Features with UL 94 V-0.

3. The Type ACY capacitors are ideal for using in line by-pass, antenna coupling, across the line application Safety standards

Specifications

Item	Performance Characteristics
Operating temperature rang	- 40 ~ +85°C
Rated voltage range	250V.AC UL SEMKO SEV FIMKO NEMKO DEMKO VDE(0565-1) 400V.AC SEMKO SEV VDE(0560-2)CCEE
Nominal capacitance range	100pF ~ 10000pF
Capacitance tolerance	K= ±10% M= ±20%
Dissipation factor (tan δ)	Y5P(B) 2.5% max at 20°C and 1KHz, 1±0.2V rms.	Y5U(E) 3.0% max at 20°C and 1KHz, 1±0.2V rms.
Dielectric strength	X1 Y2 2600VAC for 60 seconds.	X1 Y1 4000VAC for 60 seconds.
Temperature coefficient	X1 Y2 Y5P(B) ±10% Y5P(E) -80 to +30%	X1 Y1 Y5P(B) ±10% Y5U(E) -55 to +20%
Insulation resistance at 20°C	10000MΩ at 500VDC for 1 minute
