Box-type Metallized polypropylene film interference suppression capacitor( Class X2/275VAC)
Description:
The products of Optimization series X2 type with safety approvals, are made of metalized polymer polypropylene film with forced edge electrode by evaporation, full automatic spray- metal process, 94V0 level flame retardant PBT plastic box,and epoxy resin sealed, welded with CP wires. They are of high voltage proof, low capacitance decreasing. Specifically used in capacitive divider circuit, such as LED driver, energy meter, household appliance etc. |

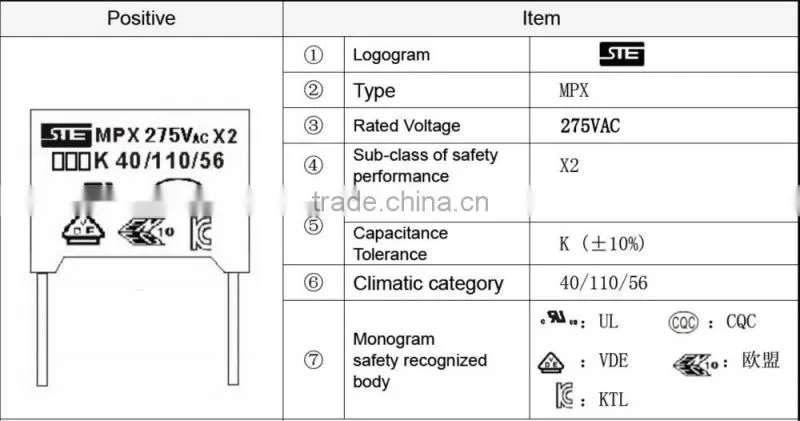

X2 334K/275VAC P=15MM
Dimension: L+/-1.0=20mm; W+/-0.5=18mm; H+/-0.5=14.5mm; T+/-0.5=8.5mm; P+/-1.0=15mm; d+/-0.05=0.8mm
Product Features:
1. Capacitor polypropylene organic thin film as a medium, the surface of the metal spraying as the electrode. Made by winding. External flame retardant plastic box body, and the epoxy potting. Widely used in power jumper from the electromagnetic interference suppression role.
2. Product Reference Standard
GB/T2693-2001<<Fixed capacitors for use in electronic equipment Part 1: General specification>>
GB/T14472-1998<<Fixed capacitor for electromagnetic interference suppression and connection to the supply mains>>
IEC60384-1:1999.
GB/T2828.1-2003.

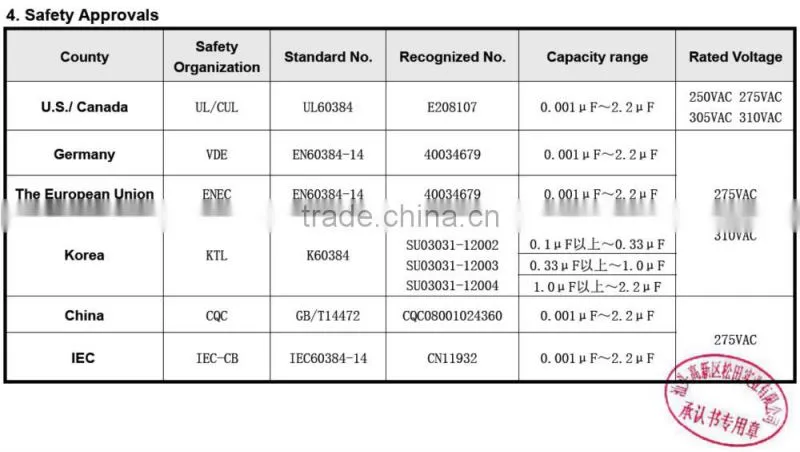

And safety certification of the relevant national standards and international standards.
Performance:
1.Climatic category: 40/110/56
2.Operating Temperature: -40+110
3.Rated voltage: 250/275VAC
4.Nominal capacitance: 0.47uf
5.Capacitance Tolerance:+/-10%
6.Dissipation factor: tan<=0.0010 1khz
