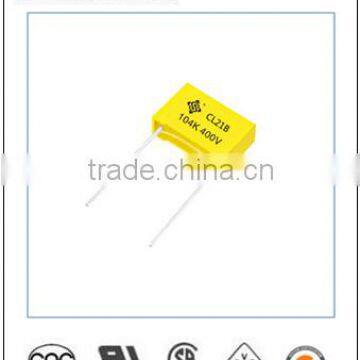

cl21b 104k 400v 100000pf polyester Metallized Polyester Film Capacitor STE capacitor

 Polyester metallised

Box-type MEFare noon-inductively wound with metallized polyester film as the dielectric/electode with copper-clad stee leads and epoxy resin coating ,they are suitable for blocking,coupling decoupling filtering, by-pass and timing circuits,they find application in telecommunication,date processing, industrial instruments.and system epuipments.

1.OUTLINE DRAWING

2.Features

A. Metallized polyester film, non-inductive construction.

B.Wide capacitance range, small size.

C.Self-healing property, long life

D.Epoxy resin sealing

3.Typical applications

Suitable blocking, By-passing, and coupling.

Widely used in filter and low pulse circuits.

4.Specifications

a. Reference Standard: GB7332(IEC60384-2)

b.Operating Temperature Range: -40+85

c. Rated Voltage:250VDC

d.Capacitance Range:0.22uF 1KHZ 1.0V

e.Capacitance Tolerance:+/-5% J 1KHZ 1.0V

f.Voltage Proof (V) : No failure Rated voltagex1.6Ur

g.Dissipation Factor: tg<=0.01 1Khz

h.Insulation Resistance :C<=0.33uf, IR>30000Mω

WORKSHOP

Packing:500pcs/plastic bag

Shipping: FOB,EXW,CNF.  Please notify me if you have any special needs.

We can provide you the best professional technical support, such as data sheet, drawing, design FAQ, ect,.

We also can provide you the related recognize credit, such as UL,VDE,CSA,CQC,ect.

    Any questions, please feel free to contact us. Due to time zone differences, we may not answer you in time, but we promise to answer you within 24 hours.
