Mining Equipment Dewatering Vibrating Screen
I. Features of Dewatering Vibrating Screen
1. YA series circular vibrating screen adopted the international advanced environmental Ring-Grooved rivet, Frame-type screen box frame structure, eccentric shaft plus eccentric block vibrator, high Gear Transmission system. Low stress damping springs and super heavy large clearance bearings and thin oil lubrication and other advanced techniques and technologies.

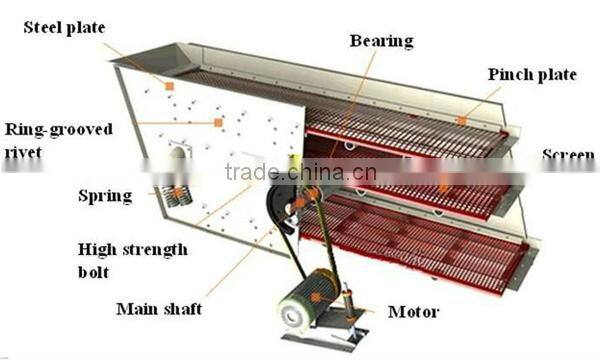

Vibrating screen structures
2. Posses of screen frame structure with high strength, large clearance bearing operating temperature is low, low running noise, long life, safe production, reliable and easy to maintain.
II. Parameter of Dewatering Vibrating Screen
| Model | Area | Screen surface | Feeding particle | Capacity | Motor power | Dimension L*W*H | Weight | |
| /m2 | obliquity ( °) | Mesh size(mm) | /mm | (t/h) | /KW | /mm | /kg | |
| YA1236 | 4.3 | 20 | 6-50 | ≤200 | 80-240 | 11 | 3757X2364X2456 | 4905 |
| 2YA1236 | 4.3 | 20 | 60-50 | ≤200 | 80-240 | 11 | 3757X2364X2456 | 5311 |
| YAH1848 | 8.6 | 20 | 30-150 | 0-150 | 250-1000 | 15 | 4904x3023x2943 | 7122 |
| 2YAH1848 | 8.6 | 20 | 30-150 | ≤ 400 | 250-1000 | 15 | 4904x3020x2943 | 7740 |
| YA2148 | 10 | 20 | 6-50 | ≤ 210 | 180-630 | 18.5 | 4945x3423x3515 | 9033 |
| 2YA2148 | 10 | 20 | 6-50 | ≤ 210 | 180-630 | 22 | 4945x3463x3515 | 10532 |
| YAH2148 | 10 | 20 | 13-200 | ≤ 400 | 270-1200 | 18.5 | 4945x3423x3501 | 10430 |
| 2YAH2148 | 10 | 20 | 30-150 | ≤ 400 | 270-1200 | 22 | 6092x3423x3501 | 11190 |
| YA2160 | 12.6 | 20 | 3-80 | ≤ 200 | 230-800 | 18.5 | 6092x3463x3674 | 9926 |
| 2YA2160 | 12.6 | 20 | 6-50 | ≤ 200 | 230-800 | 22 | 6116x3619x3849 | 11249 |
| YAH2160 | 12.6 | 20 | 30-150 | ≤ 400 | 350-1500 | 30 | 6116x3619x3849 | 12490 |
| 2YAH2160 | 12.6 | 20 | 30-150 | ≤ 400 | 350-450 | 30 | 6116x3619x3849 | 13858 |
| YA2448 | 11.5 | 20 | 6-50 | ≤ 200 | 200-700 | 18.5 | 4945x3729x3473 | 9834 |
| YAH2448 | 11.5 | 20 | 6-50 | ≤ 400 | 310-1300 | 30 | 4970x3925x3638 | 11830 |

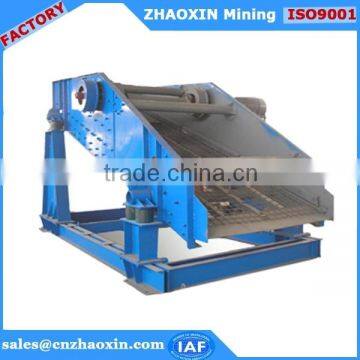

III. photo of Dewatering Vibrating Screen
Safe shipment of Dewatering Vibrating Screen
Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.
We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Our workshop
Welcome to visit our factory!
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our products, please feel free to contact us.
