Low Energy Consumption BF Flotation Machine High with reliable quality

Name: Low Energy Consumption BF Flotation Machine High with reliable quality
Brand: Zhaoxin
Price: USD $2,000 - 500,000 / Set

FOB Price

USD $2,000 - $500,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port qingdao/yantai/dalian/shanghai/shenzhen/guangzhou
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	Zhaoxin	Model Number:	BF-4.0
Condition:	New	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

Standard Export Pakage

Product Description

Specifications

1.Used for iron ore and the proportion of larger don't chosen.
2.Foaming plate, using centrifugal impeller.
3.Mixing strength.

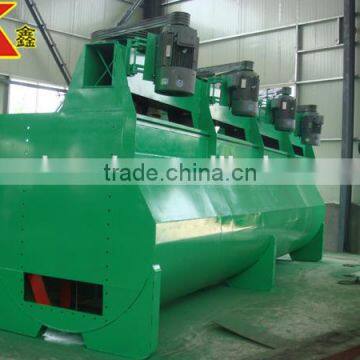

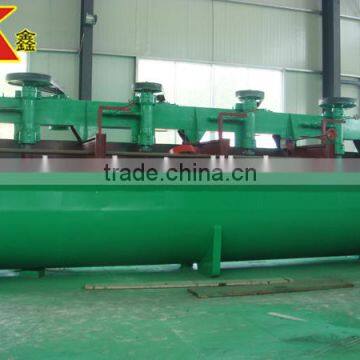

BF type flotation machine

1 Product Features

This product is a kind of flotation machine with powerful agitating force improved on the basis of SF flotation machine, suitable for the separation of minerals with larger specific gravity like iron ore, with the following features: a frothing plate is added on the basis of SF flotation machine; centrifugal impeller is adopted, which has enormous agitating force.

2 Notes for Selection

2.1 While placing your order, in addition to specifying the model and quantity, make sure to provide the flotation circuit and the followings:

Configuration scheme and the feeding mode;

quantity of the scrapers and mode of drive (right drive or left drive);

quantities of feeding chambers, intermediate chambers, and crude ore chambers

other special requirements

2.2 No electric control cabinet will be supplied.

2.3 The flashboard will be made according to the manufacturer’s drawings. And the electric driven flashboard will be adopted for large-scale flotation machine.

BF type flotation machine technical parameter table

Model	Effective volume(m³)	(L×W×H) (mm)	Impeller diameter(mm)	Impeller rotational speed(m/s)	Air suction volume (m³/ min)	Motor model	Motor power(kw)	capacity(m³/min)	Single tank weight (kg)
BF-1.2	1.2	1050×1150×1100	450	7.02	0.9~1.10	Y132 M₂-6	5.5	0.6~1.2	1370
BF-2.0	2	1400×1450×1120	500	7.5	0.9~1.10	Y160M-6	7.5	1.0~2.0	1750
BF-4.0	4	1900×2000×1200	650	8	0.9~1.10	Y200L-8	15	2.4~4.0	2585
BF-6.0	6	2200×2350×1300	700	7.5	0.9~1.10	Y225S-8	18.5	3.0~6.0	3300
BF-8.0	8	2250×2850×1400	760	7.5	0.9~1.10	Y225M-8	22	4.0~8.0	4130
BF-10	10	2250×2850×1700	760	7.52	0.9~1.10	Y225M-8	22	5.0~10	4500
BF-16	16	2250×3800×1700	850	8.7	0.9~1.10	Y280S-8	37	8.0~16	8320
BF-20	20	2850×3800×2000	850	8.7	0.9~1.10	Y280M-8	45	10.0~20	8670
BF-24	24	3150×4150×2000	920	8.7	0.9~1.10	Y280M-8	45	12.0~24	8970
