Home > Products > Filtering equipment > Permanent magnetic vaccum filter
Permanent magnetic vaccum filter
- 20 Set / Sets per Month
- Qingdao Shanghai or any other China port
- T/T L/C D/P D/A Credit Card PayPal
- GYW Magnetic Filter for iron ore dressing
- GYW permanent magnetic vacuum filter
- GYW magnetic vacuum filter
- Mining Machinery GYW Vacuum Permanent Magnetic Filter
- Hot Sale High Quality Mining Equipment Filtering Equipment GW Cylinder External Filter
- High Efficiency Mining Equipment Filtering Equipment GW Cylinder External Filter From China
Product Details
Place of Origin: | Shandong, China | Brand Name: | ZHAOXIN | Model Number: | GYW-3 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard packaging for magnetic filter
Product Description

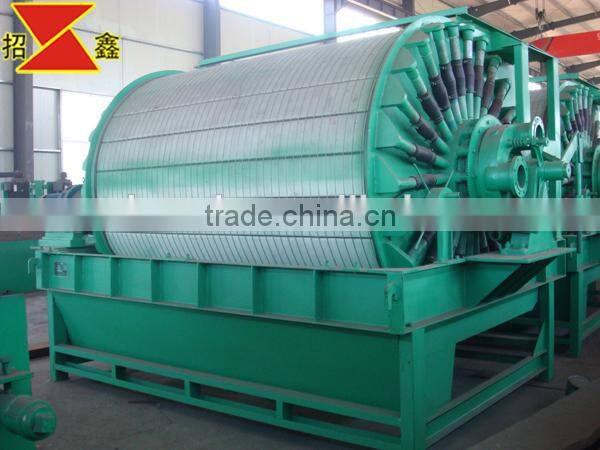

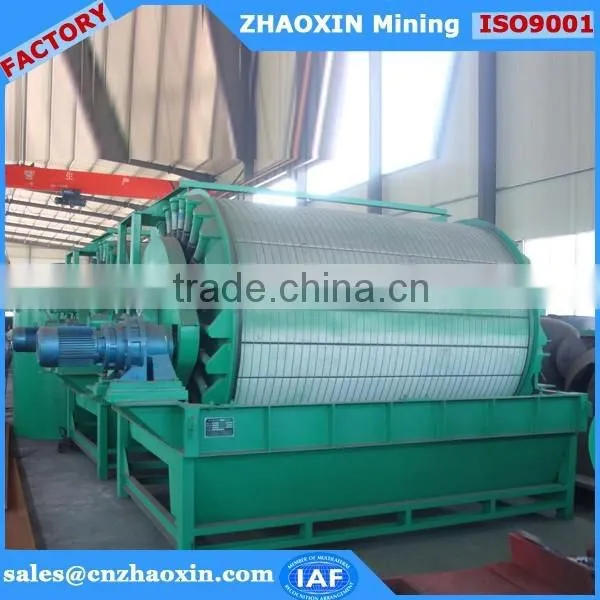

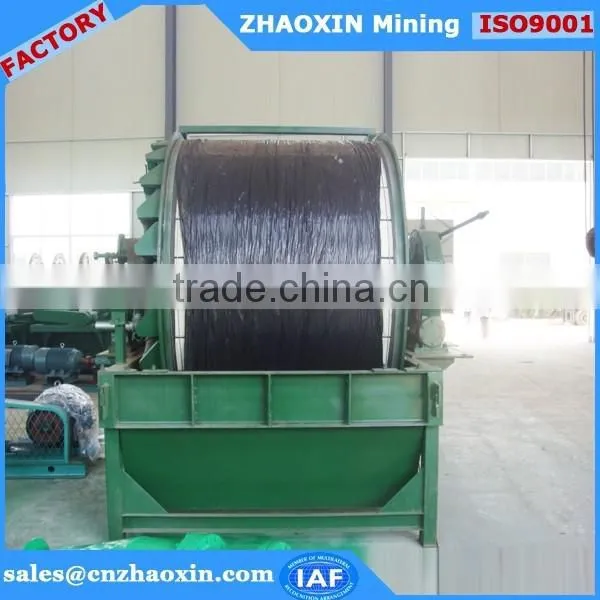

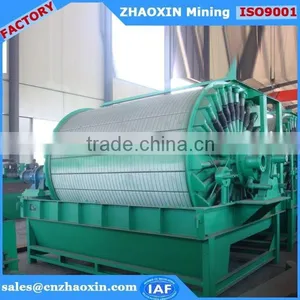

Permanent magnetic vaccum filter
Features of magnetic filter
1. This magnetic filter is specially used to dewater powdered iron of magnetite.
2. The magnetic filter is with low operation cost.
Technical parameters of magnetic filter
Model | Filterate area | Cylinder Specifications | Cylinder Speed | magnetic induction | Vacuum gauge pressure | Swept volume | Pressure of fan | Capacity | Motor Model | Motor Power | Weight |
(m3) | (mm) | (r.p.m) | (Mt) | (Kpa) | (m3/min.m2) | (Kpa) | (t/h) | (kw) | (kg) | ||
GYW-3 | 3 | φ1600×700 | 0.5-2 | 82 | 60-80 | 0.5-2 | 10~30 | 6.0-9 | Y100L-6 | 1.5 | 3270 |
GYW-5 | 5 | φ2000×900 | 0.5-2 | 82 | 60-80 | 0.5-2 | 10~30 | 14-18 | Y100L-6 | 1.5 | 3940 |
GYW-8 | 8 | φ2000×1400 | 0.5-2 | 82 | 60-80 | 0.5-2 | 10~30 | 22-43 | Y100L-6 | 1.5 | 4760 |
GYW-12 | 12 | φ2000×2000 | 0.5-2 | 87 | 60-80 | 0.5-2 | 10~30 | 33-65 | Y112M-6 | 2.2 | 5400 |
GYW-16 | 16 | φ2550×2650 | 0.5-2 | 87 | 60-80 | 0.5-2 | 10~30 | 44-87 | Y132M-6 | 4 | 7830 |
GYW-20 | 20 | φ2550×2650 | 0.5-2 | 87 | 60-80 | 0.5-2 | 10~30 | 50-100 | Y132M 1-6 | 4 | 6530 |

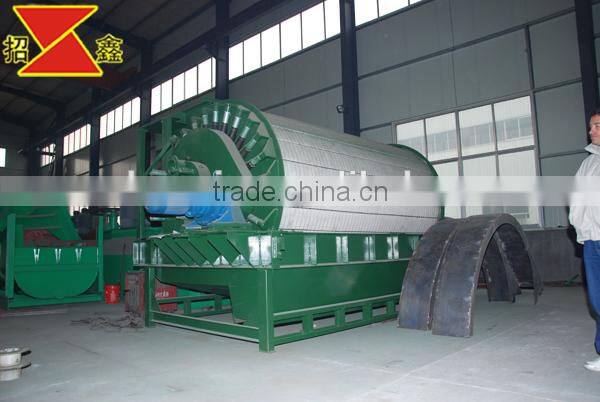

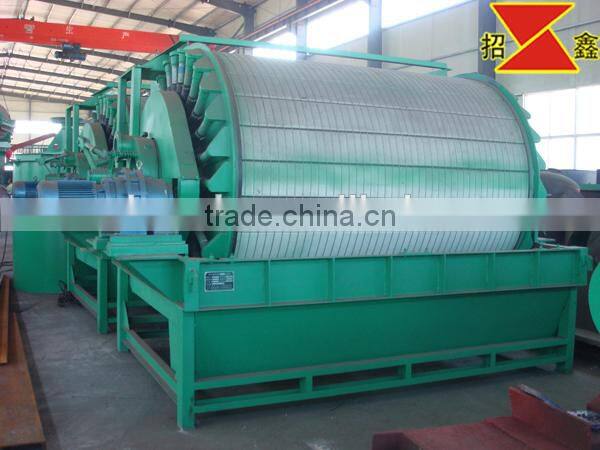

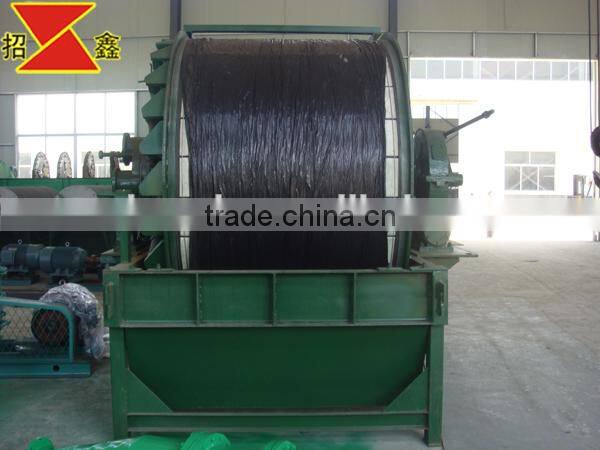

magnetic filter
Safe shipment of magnetic filter
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. Depends on detailed product. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our product, please feel free to contact us.

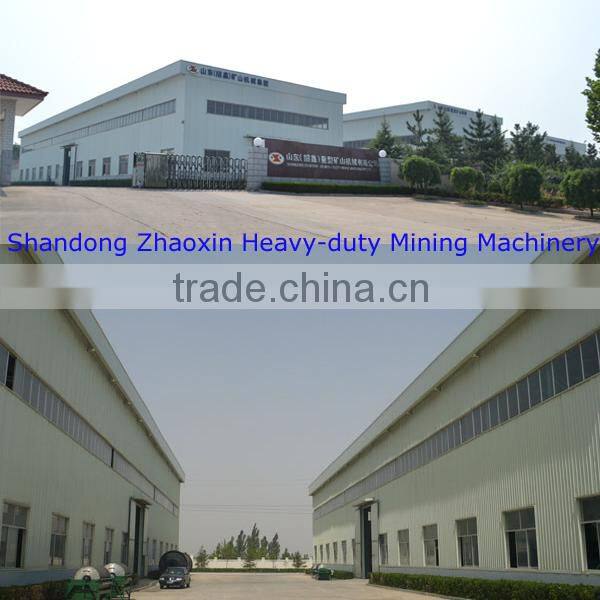

Company Profile
Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd is located at No.66 Jinlong Road, Zhaoyuan Economic & Technological Development Zone which is a national economic development zone in China. With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area. Zhaoxin machinery has exported to more than 20 countries.
The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, floatation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training. The company has occupied a good reputation in this industry by fist class of quality, reasonable price and durable operation life. The company is ISO9001:2008 certificated.
Mr. Luan Wanxin, chairman and general manager of the company, greet all friends from home and abroad. We are sure that our service from heart and soul will make all customers satisfied from head to toe.
Contact Us
- Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd.
- Contact nameCathy Chen
- Phone86-535-8382968, 8382668, 83808
- AddressEast Of Longqing Road, South Of Wensan Line, Economic Development Zone
