Hot Sale High Quality Filtering Equipment GW Cylinder External Filter

Name: Hot Sale High Quality Filtering Equipment GW Cylinder External Filter
Brand: Zhaoxin
Availability: InStock

FOB Price

US$ 10,000 - 25,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Yantai Dalian Shanghai Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Zhaoxin
Model Number	GW-3	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

no packaging

Product Description

Specifications

Characteristic
1.Simple structure.
2.Low price.
3.Convenient operation.
4.Less maintenance required.

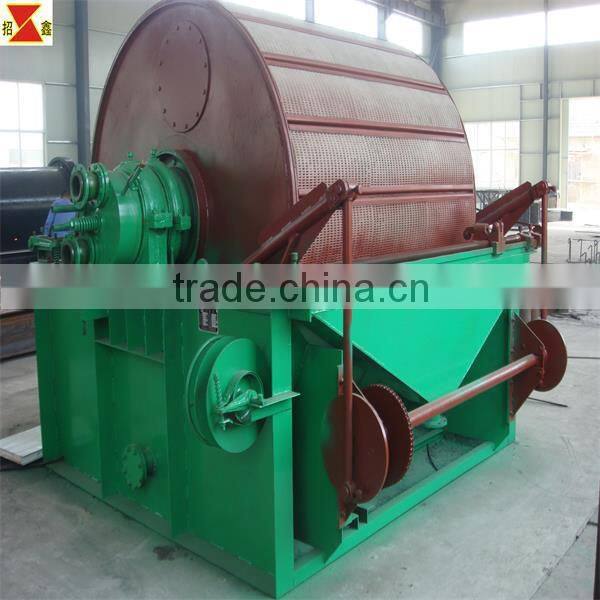

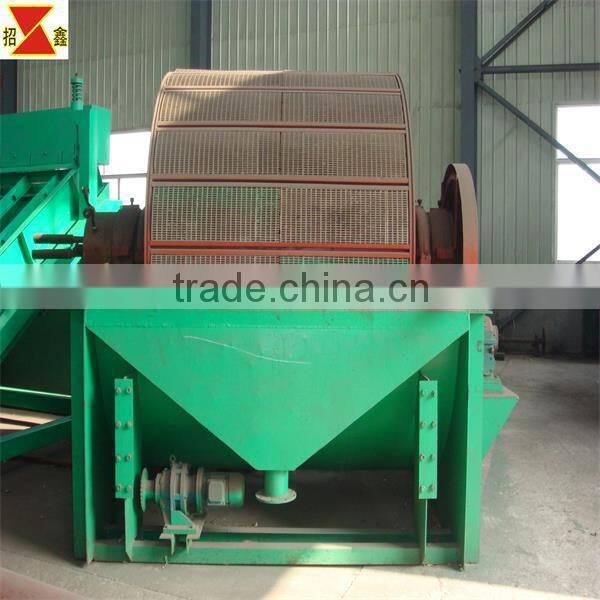

Mining equipment GW cylinder outside drum filter machine

Mining Filter is used to dehydrate nonferrous metal (such as gold, copper, zinc, etc) and nonmetallic ore (such as sulfur, phosphorus, talc fluorite, etc). Also it is able to filter materials like coal perator and separate uneasily precipitated suspended soli-liquid.

Technical parameter list of GW cylinder exteral filter

model	GW-3	GW-5	GW-8	GW-10	GW-12	GW-20	GW-30	GW-40	GW-50
Filter area (m²)	3	5	8	10	12	20	30	40
Cylinder size (mm)	φ1068× 1060	φ1600× 1060	φ2000× 1500	φ2000× 1750	φ2000× 2000	φ2500× 2650	φ3350× 3000	φ3350× 4000	φ3350× 5000
cylinder speed (r/min)	0.156- 1.56	0.156- 1.56	0.1-0.6	0.1- 0.6	0.1- 0.6	0.14- 0.54	0.12- 0.56	0.12- 0.56	0.12- 0.56
Vacuum pressure(KPa)	60-80	60-80	60-80	60-80	60-80	60-80	60-80	60-80	60-80
Swept volume (m³/min.m²)	0.5-2	0.5-2	0.5-2	0.5-2	0.5-2	0.5-2	0.5-2	0.5-2	0.5-2
Blast pressure (Kpa)	10-30	10-30	10-30	10-30	10-30	10-30	10-30	10-30	10-30
blast volume (m³/min.m²)	0.2- 0.4	0.2- 0.4	0.2- 0.4	0.2- 0.4	0.2- 0.4	0.2- 0.4	0.2 -0.4	0.2- 0.4	0.2- 0.4
capacity (t/h)	0.8-1.5	1.6-2.4	2.8-3.6	3-4	3-5	3-8	4.5-12	6-16	7.5-20
cylinder motor(kw)	1.5	1.5	2.2	2.2	2.2	3	4	4	5.5
Stirring motor (kw)	0.75	0.75	1.5	1.5	2.2	2.2	3	3	4
weight (kg)	2635	2850	5455	6317	6365	10600	17200	19500	21500

Packaging & Shipping

Safe shipment

Our company has many other products for you reference as following:

1.Crushing Machinery

2.Grinding Machinery

3.Screening Machinery

4.Flotation Machinery

5.Magnetic Equipment

6.Thickening Equipment

7.Filtration Equipment

8.Gravity Separation Equipment

Our Services

DELIVERY SITE OF THE BALL MILL MACHINE

IF you don't know which model to choose, pls tell me more infromations as belows:

1.what is your material ?

2.what is the size of your raw material?

3.what is the capacity per hour you want to crush?

4. what is the size of the output you need?

SERVICE PROMISES

Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.

On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection: Organize to delivery according to the contract.

After sales: Company can send technical persons for guiding to install,debug and train the workers.
We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.

Our customers

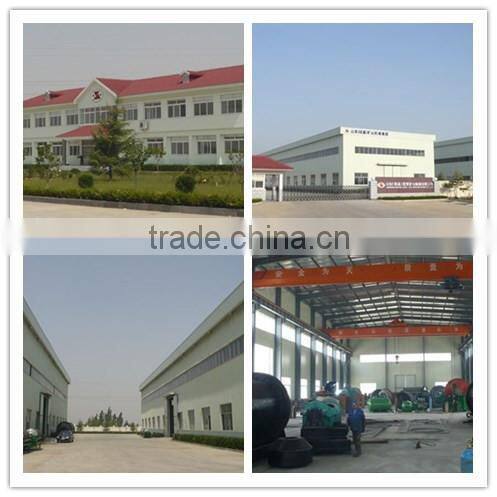

Company Profile

Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd.

Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd is located at No.66 Jinlong Road, Zhaoyuan Economic & Technological Development Zone which is a national economic development zone in China. With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area. Zhaoxin machinery has exported to more than 20 countries. The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, floatation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training. The company has occupied a good reputation in this industry by fist class of quality, reasonable price and durable operation life. The company is ISO9001:2008 certificated. Mr. Luan Wanxin, chairman and general manager of the company, greet all friends from home and abroad. We are sure that our service from heart and soul will make all customers satisfied from head to toe.
